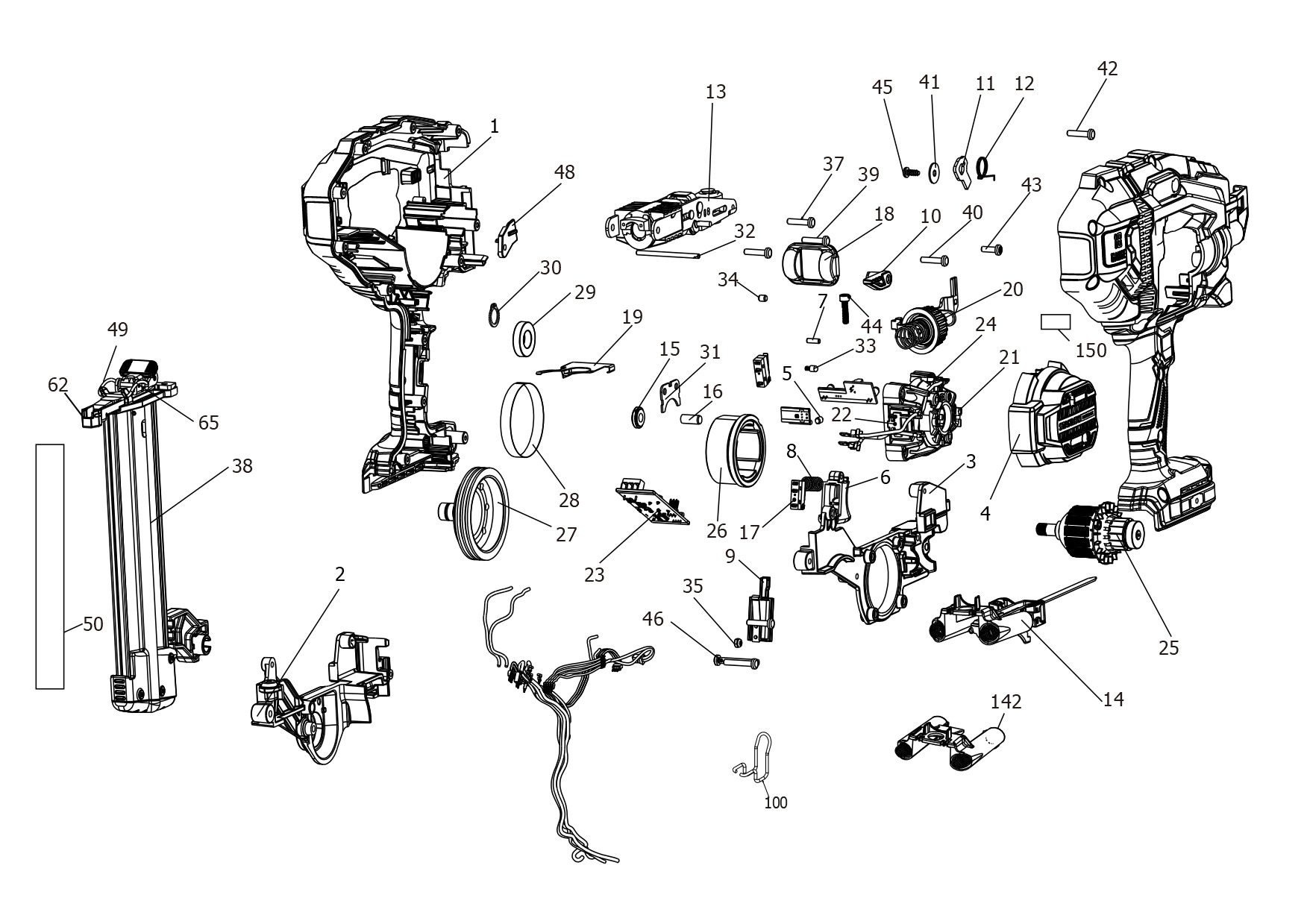

STANLEY CORDLESS NAILER (Type 1)
SKU Produs: SFMCN618B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 90614654 | 1 | LEFT SIDE, FRAME | 70,39 Lei | |
| 3 | N500107 | 1 | RIGHT SIDE FRAME | 96,56 Lei | |
| 4 | N688808 | 1 | CAP | 15,12 Lei | |
| 5 | 90621610 | 2 | PLUG | 4,57 Lei | |
| 6 | N552193 | 1 | TRIGGER | 7,37 Lei | |
| 7 | 098185-20 | 1 | PIN | 5,21 Lei | |
| 8 | 90551259 | 1 | SPRING | 4,57 Lei | |
| 9 | N552233 | 1 | SWITCH | 7,37 Lei | |
| 11 | 90629863 | 1 | PIVOT | 4,57 Lei | |
| 12 | 90615568 | 1 | SPRING TORSION | 4,57 Lei | |
| 13 | NA000883 | 1 | COVER-TOP | 169,36 Lei | |
| 15 | 90633321 | 1 | SKID | 4,57 Lei | |
| 16 | N082403 | 1 | PIN | 4,57 Lei | |
| 18 | 90641347 | 1 | BUMPER | 21,85 Lei | |
| 19 | 90615815 | 1 | SPRING PROFILE LIFTER | 7,5 Lei | |
| 21 | 90624386 | 2 | BRUSHBOX | 5,21 Lei | |
| 22 | 90621006 | 1 | HOLDER | 4,57 Lei | |
| 24 | 90624621 | 1 | BRIDGE | 37,73 Lei | |
| 25 | N500628 | 1 | SA ARMATURE AND BEARING | 213,19 Lei | |
| 26 | N503300 | 1 | SA MAGNET RING | 96,56 Lei | |
| 27 | 90614719 | 1 | FLYWHEEL, 18GA PC NAILER | 181,55 Lei | |
| 29 | 90559833 | 1 | BEARING | 10,29 Lei | |
| 30 | 90615722 | 1 | RING | 4,57 Lei | |
| 31 | 90622035 | 1 | PLATE | 4,57 Lei | |
| 32 | 330041-61 | 1 | ROLLER SPINDLE | 5,21 Lei | |
| 33 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 34 | 588470-00 | 1 | PIN | 4,57 Lei | |
| 35 | 90610773 | 1 | NUT M4 | 4,57 Lei | |
| 37 | 90626630 | 11 | SCREW | 4,57 Lei | |
| 39 | 90626633 | 2 | SCREW | 4,57 Lei | |
| 40 | 330045-05 | 7 | SCREW.TEMP | 4,57 Lei | |
| 41 | 90621828 | 2 | WASHER | 4,57 Lei | |
| 42 | 330045-07 | 7 | SCREW | 4,57 Lei | |
| 43 | 330019-38 | 3 | SCREW | 4,57 Lei | |
| 44 | 90614915 | 2 | SCREW SHCS M4X0.70X20 | 4,57 Lei | |
| 44 | 90614988 | 2 | RATING PLATE | 4,57 Lei | |
| 45 | 582193-00 | 1 | SCREW | 4,57 Lei | |
| 46 | 90626342 | 1 | SCREW | 4,57 Lei | |
| 48 | N492341 | 1 | HOUSING | 4,57 Lei | |
| 49 | N748025 | 1 | TUBE SA | 41,93 Lei | |
| 65 | 90631918 | 2 | TUBE | 4,57 Lei | |
| 100 | 90626069 | 1 | HOOK | 10,29 Lei | |
| 142 | 90629537 | 1 | KIT SA | 41,93 Lei |
