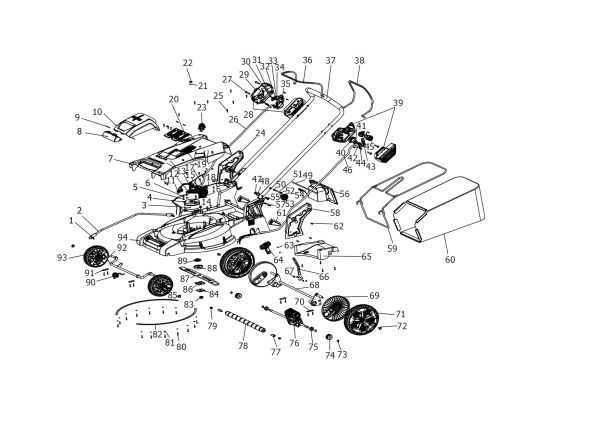

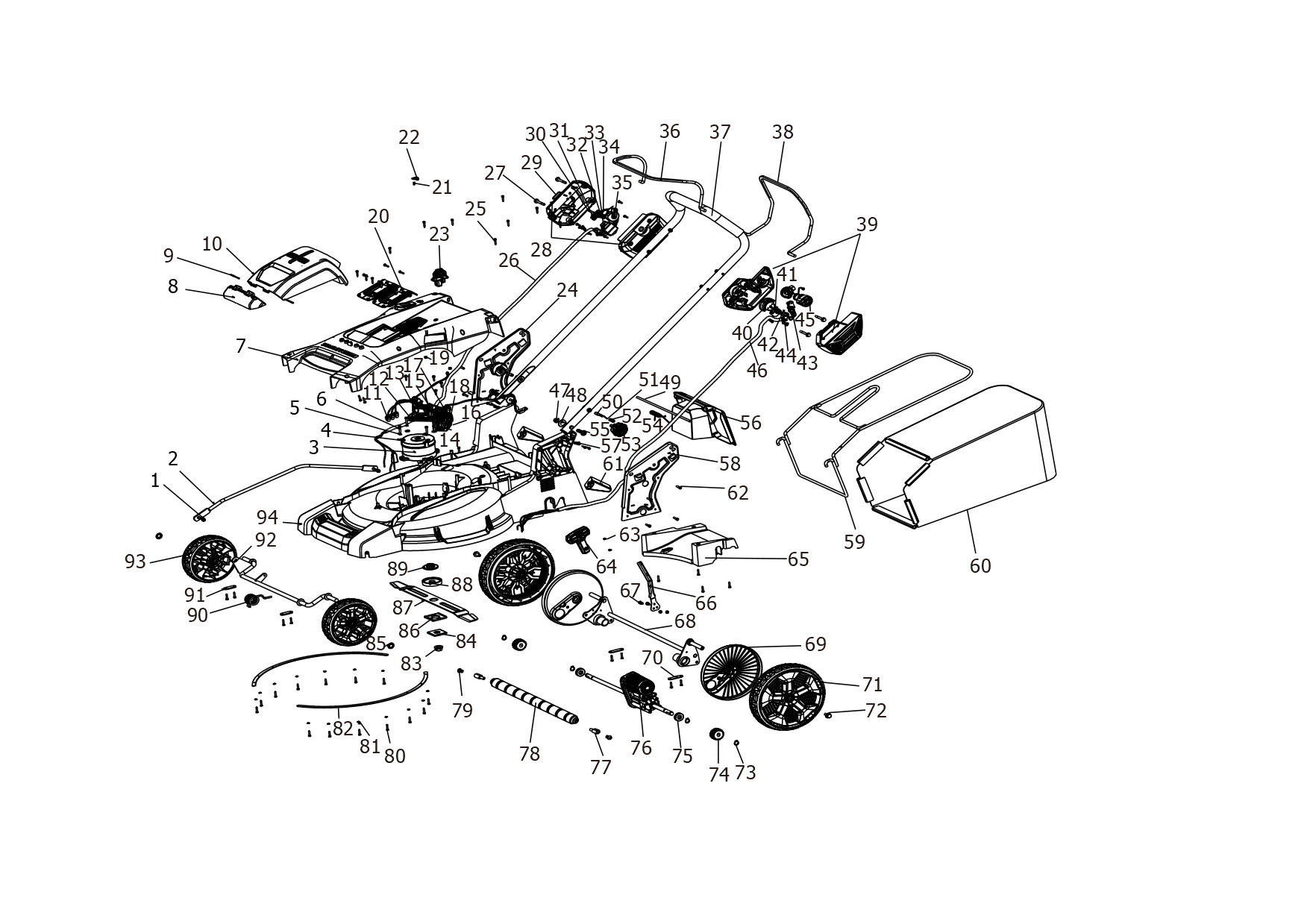

STANLEY CORDLESS MOWER (Type 1)
SKU Produs: SFMCMWS251B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N541610 | 8 | LOCK-NUT | 4,57 Lei | |
| 2 | NA015256 | 1 | ARM | 52,22 Lei | |
| 3 | N763441 | 1 | MOTOR SA | 613,14 Lei | |
| 4 | N873636 | 4 | WASHER | 4,57 Lei | |
| 5 | 098197-11 | 4 | WASHER LOCK | 4,57 Lei | |
| 6 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 7 | NA034441 | 1 | COVER | 161,6 Lei | |
| 8 | NA006152 | 1 | DOOR | 17,02 Lei | |
| 9 | N592196 | 2 | PIN | 7,37 Lei | |
| 10 | NA034771 | 1 | BATTERY COVER | 130,35 Lei | |
| 11 | 650974-00 | 3 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 12 | NA187293 | 1 | MODULE | 750,36 Lei | |
| 13 | NA012266 | 1 | HARNESS | 37,73 Lei | |
| 14 | NA068866 | 1 | PCB SA | 289,04 Lei | |
| 15 | NA012265 | 1 | HARNESS | 70,39 Lei | |
| 16 | N590957 | 5 | CONNECTOR | 10,29 Lei | |
| 17 | N590959 | 1 | CONNECTOR | 21,85 Lei | |
| 18 | N590958 | 4 | CONNECTOR | 13,85 Lei | |
| 19 | N913001 | 2 | MAGNET | 6,23 Lei | |
| 20 | N825133 | 2 | HOUSING | 10,29 Lei | |
| 21 | 593216-00 | 1 | SCREW | 4,57 Lei | |
| 22 | NA019793 | 1 | SENSOR | 37,73 Lei | |
| 23 | NA147501 | 1 | KEY | 25,54 Lei | |
| 24 | NA012007 | 1 | HANDLE | 80,04 Lei | |
| 25 | 330019-04 | 30 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 26 | NA012254 | 1 | SWITCHBOX | 145,09 Lei | |
| 27 | N591023 | 4 | BOLT | 4,57 Lei | |
| 28 | N914489 | 1 | HOUSING | 34,05 Lei | |
| 29 | N838981 | 1 | BUTTON | 7,37 Lei | |
| 30 | 90541437 | 1 | PIN | 4,57 Lei | |
| 31 | N822323 | 1 | BUTTON | 6,23 Lei | |
| 32 | 90541477 | 1 | SPRING | 4,57 Lei | |
| 33 | N736727 | 1 | SWITCH | 80,04 Lei | |
| 34 | N593516 | 2 | SPRING | 5,21 Lei | |
| 35 | N822322 | 2 | CRANK | 7,37 Lei | |
| 36 | NA034619 | 1 | RAIL | 34,05 Lei | |
| 37 | NA070448 | 1 | HANDLE UPPER | 225,26 Lei | |
| 38 | NA034617 | 1 | RAIL | 37,73 Lei | |
| 39 | NA034616 | 1 | HOUSING | 41,93 Lei | |
| 40 | N725337 | 1 | LEVER | 6,23 Lei | |
| 41 | NA019794 | 1 | PCB | 21,85 Lei | |
| 42 | 90172216 | 1 | Gear | 4,57 Lei | |
| 43 | 90569937 | 1 | SWITCH | 19,95 Lei | |
| 44 | N587363 | 1 | SHAFT | 15,12 Lei | |
| 45 | 90149411 | 1 | CAM | 6,23 Lei | |
| 46 | NA012256 | 1 | WIRE HARNESS | 130,35 Lei | |
| 47 | N535210 | 2 | NUT | 4,57 Lei | |
| 48 | N535178 | 2 | SPACER | 5,21 Lei | |
| 49 | N811797 | 1 | SHAFT | 7,37 Lei | |
| 50 | N514100 | 2 | PIN | 7,37 Lei | |
| 51 | 90564730 | 2 | SPRING | 4,57 Lei | |
| 52 | 90101536 | 2 | SPRING COMPRESSION | 4,57 Lei | |
| 53 | N716863 | 2 | KNOB | 12,71 Lei | |
| 54 | N572158 | 1 | SPRING | 5,21 Lei | |
| 55 | N535212 | 2 | BOLT | 5,21 Lei | |
| 56 | NA014364 | 1 | DOOR | 41,93 Lei | |
| 57 | 329301-00 | 4 | CLAMP, CORD CORNER | 4,57 Lei | |
| 58 | NA018895 | 1 | ADJUSTER PLATE | 96,56 Lei | |
| 59 | N822020 | 1 | FRAME | 106,98 Lei | |
| 60 | N851018 | 1 | BAG | 213,19 Lei | |
| 61 | NA083286 | 2 | LEG | 17,02 Lei | |
| 62 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 63 | 330019-41 | 2 | VITE PLASTIC | 4,57 Lei | |
| 64 | NA034384 | 2 | HOUSING SA | 19,95 Lei | |
| 65 | NA014880 | 1 | INSERT | 41,93 Lei | |
| 66 | NA010943 | 1 | HANDLE | 19,95 Lei | |
| 67 | 330045-23 | 2 | SCREW | 4,57 Lei | |
| 68 | NA017627 | 1 | STRAP | 200,99 Lei | |
| 69 | NA014169 | 2 | COVER | 25,54 Lei | |
| 70 | N873452 | 2 | STRAP | 4,57 Lei | |
| 71 | N919555 | 2 | WHEEL | 120,82 Lei | |
| 72 | N604055 | 2 | BOLT | 4,57 Lei | |
| 72 | NA034615 | 1 | TRANSMISSION SA | 850,09 Lei | |
| 74 | NA013906 | 2 | PINION | 25,54 Lei | |
| 75 | 90136109 | 2 | BEARING | 15,12 Lei | |
| 77 | N528290 | 2 | PIN | 12,71 Lei | |
| 78 | NA017972 | 1 | ROLLER | 37,73 Lei | |
| 79 | N542724 | 2 | BOLT | 4,7 Lei | |
| 80 | 330019-03 | 36 | Screw M3.5X16 T15 | 4,57 Lei | |
| 81 | N897843 | 14 | WASHER | 4,57 Lei | |
| 82 | N886167 | 2 | SUPPORT | 19,95 Lei | |
| 83 | N538858 | 1 | BOLT | 7,37 Lei | |
| 84 | 092715-00 | 1 | SPACER | 7,37 Lei | |
| 85 | N840352 | 2 | RETAINER RING | 4,57 Lei | |
| 86 | NA072603 | 1 | BLADE | 8,64 Lei | |
| 87 | N805216 | 1 | BLADE | 106,98 Lei | |
| 88 | N806937 | 1 | SPACER | 4,57 Lei | |
| 89 | N806936 | 1 | SPACER | 13,85 Lei | |
| 90 | NA014940 | 1 | SPRING | 21,85 Lei | |
| 91 | N523499 | 2 | PLATE | 4,57 Lei | |
| 93 | NA002516 | 2 | WHEEL | 80,04 Lei | |
| 94 | NA083257 | 1 | CUTTER DECK | 433,24 Lei |
