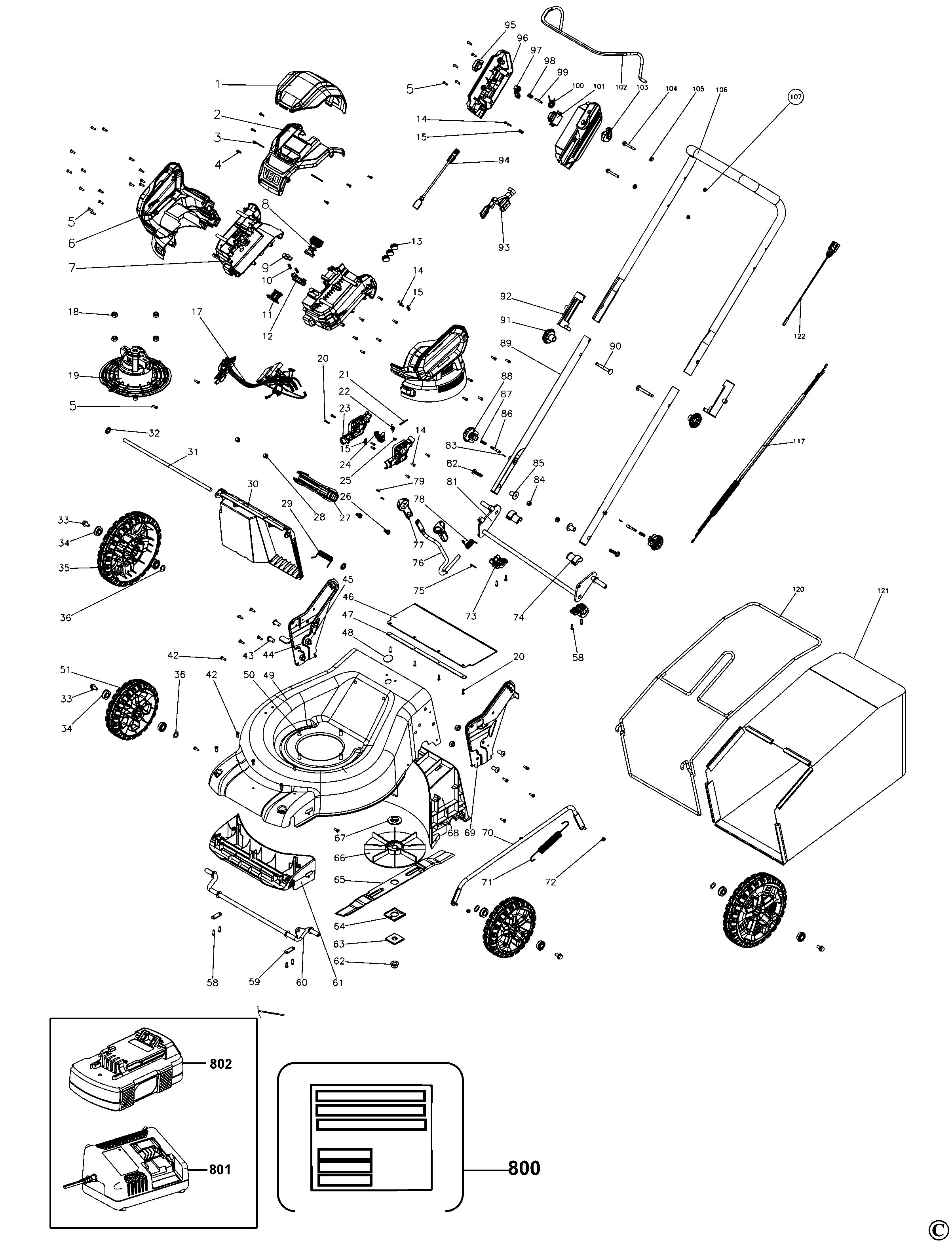

STANLEY MOWER (Type 1)
SKU Produs: SFMCMW2653B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N565774 | 1 | LID | 57,81 Lei | |
| 2 | N716874 | 1 | HOUSING | 34,05 Lei | |
| 3 | N592196 | 1 | PIN | 7,37 Lei | |
| 4 | 330019-11 | 1 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 5 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 6 | N601412 | 1 | MOTOR SA | 130,35 Lei | |
| 7 | N725298 | 1 | HOUSING | 120,82 Lei | |
| 8 | N580658 | 1 | Button Latch CM 60V | 6,23 Lei | |
| 9 | 90607453 | 1 | SUPPORT | 4,57 Lei | |
| 9 | 90607542 | 1 | BRAND LABEL | 4,5 Lei | |
| 10 | 90606558 | 1 | SPRING | 4,57 Lei | |
| 11 | 90605769 | 1 | EJECTOR | 7,37 Lei | |
| 12 | N562080 | 1 | TOOL LATCH SLIDER CRAFTSMAN 60V | 6,23 Lei | |
| 13 | N591024 | 1 | WIRE | 7,37 Lei | |
| 14 | 329301 | 1 | CLAMP | 17,02 Lei | |
| 17 | N724973 | 1 | MODULE | 349,13 Lei | |
| 18 | N455283 | 1 | NUT M10 | 4,57 Lei | |
| 19 | N601317 | 1 | MOTOR | 1112,7 Lei | |
| 20 | 330019-03 | 1 | Screw M3.5X16 T15 | 4,57 Lei | |
| 21 | N597886 | 1 | PIN | 4,57 Lei | |
| 22 | N591385 | 1 | SPRING | 4,57 Lei | |
| 23 | N716876 | 1 | HOUSING | 17,02 Lei | |
| 24 | N580674 | 1 | ACTUATOR | 5,21 Lei | |
| 25 | 330019-48 | 1 | SCREW | 4,57 Lei | |
| 26 | N637944 | 1 | BOLT | 4,57 Lei | |
| 27 | N565937 | 1 | HANDLE | 15,12 Lei | |
| 28 | N527654 | 1 | Nut Acorn Cap - 8 x 1.25mm | 4,57 Lei | |
| 29 | N592718 | 1 | SPRING | 5,21 Lei | |
| 30 | N588865 | 1 | DOOR | 57,81 Lei | |
| 31 | N565930 | 1 | ROD | 21,85 Lei | |
| 32 | N591697 | 1 | RING | 4,57 Lei | |
| 33 | N604055 | 1 | BOLT | 4,57 Lei | |
| 34 | N597453 | 1 | BEARING | 12,71 Lei | |
| 35 | N589060 | 1 | WHEEL | 70,39 Lei | |
| 36 | N514019 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 42 | N630171 | 1 | SCREW | 4,57 Lei | |
| 43 | N630170 | 1 | BOLT | 4,57 Lei | |
| 44 | N725351 | 1 | PLATE | 52,22 Lei | |
| 45 | N630169 | 1 | NUT | 4,57 Lei | |
| 46 | N589628 | 1 | FLAP | 30,87 Lei | |
| 47 | N590208 | 1 | PLATE | 15,12 Lei | |
| 48 | N594905 | 1 | DISC | 4,57 Lei | |
| 49 | N727663 | 1 | BASE | 433,24 Lei | |
| 50 | N545139 | 1 | BOLT | 5,21 Lei | |
| 51 | N600622 | 2 | WHEEL FRONT | 70,39 Lei | |
| 58 | N630172 | 1 | SCREW | 4,57 Lei | |
| 59 | N600127 | 1 | PLATE | 4,57 Lei | |
| 60 | N594373 | 1 | AXLE | 41,93 Lei | |
| 61 | N594414 | 1 | INSERT | 41,93 Lei | |
| 62 | N538858 | 1 | BOLT | 7,37 Lei | |
| 63 | 092715-00 | 1 | SPACER | 7,37 Lei | |
| 64 | 90541434 | 1 | WASHER INSULATING | 5,21 Lei | |
| 65 | N566776 | 1 | BLADE | 96,56 Lei | |
| 66 | N590354 | 1 | FAN | 25,54 Lei | |
| 67 | 680812-00 | 1 | SPACER | 8,64 Lei | |
| 68 | N594372 | 1 | INSERT | 130,35 Lei | |
| 69 | N594371 | 1 | PLATE | 41,93 Lei | |
| 70 | N594377 | 1 | ROD | 25,54 Lei | |
| 71 | N594378 | 1 | SPRING | 13,85 Lei | |
| 72 | N630173 | 1 | NUT M6 | 4,57 Lei | |
| 73 | N600096 | 1 | AXLE | 5,21 Lei | |
| 74 | N600097 | 1 | CLAMP | 4,57 Lei | |
| 75 | N630174 | 1 | PIN | 4,57 Lei | |
| 76 | N594375 | 1 | LEVER | 19,95 Lei | |
| 77 | N716855 | 1 | HANDLE | 12,71 Lei | |
| 78 | N594376 | 1 | SPRING | 7,37 Lei | |
| 79 | 330019-41 | 1 | VITE PLASTIC | 4,57 Lei | |
| 81 | N733499 | 1 | AXLE | 34,05 Lei | |
| 82 | N535212 | 1 | BOLT | 5,21 Lei | |
| 83 | 90564730 | 1 | SPRING | 4,57 Lei | |
| 84 | N535210 | 1 | NUT | 4,57 Lei | |
| 85 | N535178 | 1 | SPACER | 5,21 Lei | |
| 86 | N514100 | 1 | PIN | 7,37 Lei | |
| 87 | 90101536 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 88 | N716863 | 1 | KNOB | 12,71 Lei | |
| 89 | N615168 | 1 | POLE PIECE SA | 70,39 Lei | |
| 90 | N584838 | 1 | HANDLE SPLIT BOLT | 7,37 Lei | |
| 91 | N716853 | 1 | PIN | 13,85 Lei | |
| 92 | NA074187 | 1 | HANDLE SA | 252,58 Lei | |
| 93 | N603166 | 1 | SWITCH | 7,37 Lei | |
| 94 | N591870 | 1 | KEY | 21,85 Lei | |
| 95 | N716872 | 1 | BUTTON | 6,23 Lei | |
| 96 | N716865 | 1 | HOUSING | 34,05 Lei | |
| 97 | N587963 | 1 | CRANK | 4,57 Lei | |
| 98 | 90541477 | 1 | SPRING | 4,57 Lei | |
| 99 | 90541437 | 1 | PIN | 4,57 Lei | |
| 100 | N593516 | 1 | SPRING | 5,21 Lei | |
| 101 | N587759 | 1 | SWITCH | 57,81 Lei | |
| 102 | N722157 | 1 | HANDLE | 25,54 Lei | |
| 103 | N587962 | 1 | CRANK | 6,23 Lei | |
| 104 | N591023 | 1 | BOLT | 4,57 Lei | |
| 105 | N591230 | 1 | WASHER | 4,57 Lei | |
| 106 | N615439 | 1 | POLE PIECE | 169,36 Lei | |
| 107 | N541610 | 1 | LOCK-NUT | 4,57 Lei | |
| 117 | N606658 | 1 | MOTOR SA | 130,35 Lei | |
| 120 | N592733 | 1 | FRAME | 88,55 Lei | |
| 121 | N727888 | 1 | BAG | 169,36 Lei | |
| 122 | N716844 | 1 | KEY | 70,39 Lei | |
| 800 | N727929 | 1 | RATING LABEL | 17,02 Lei |
