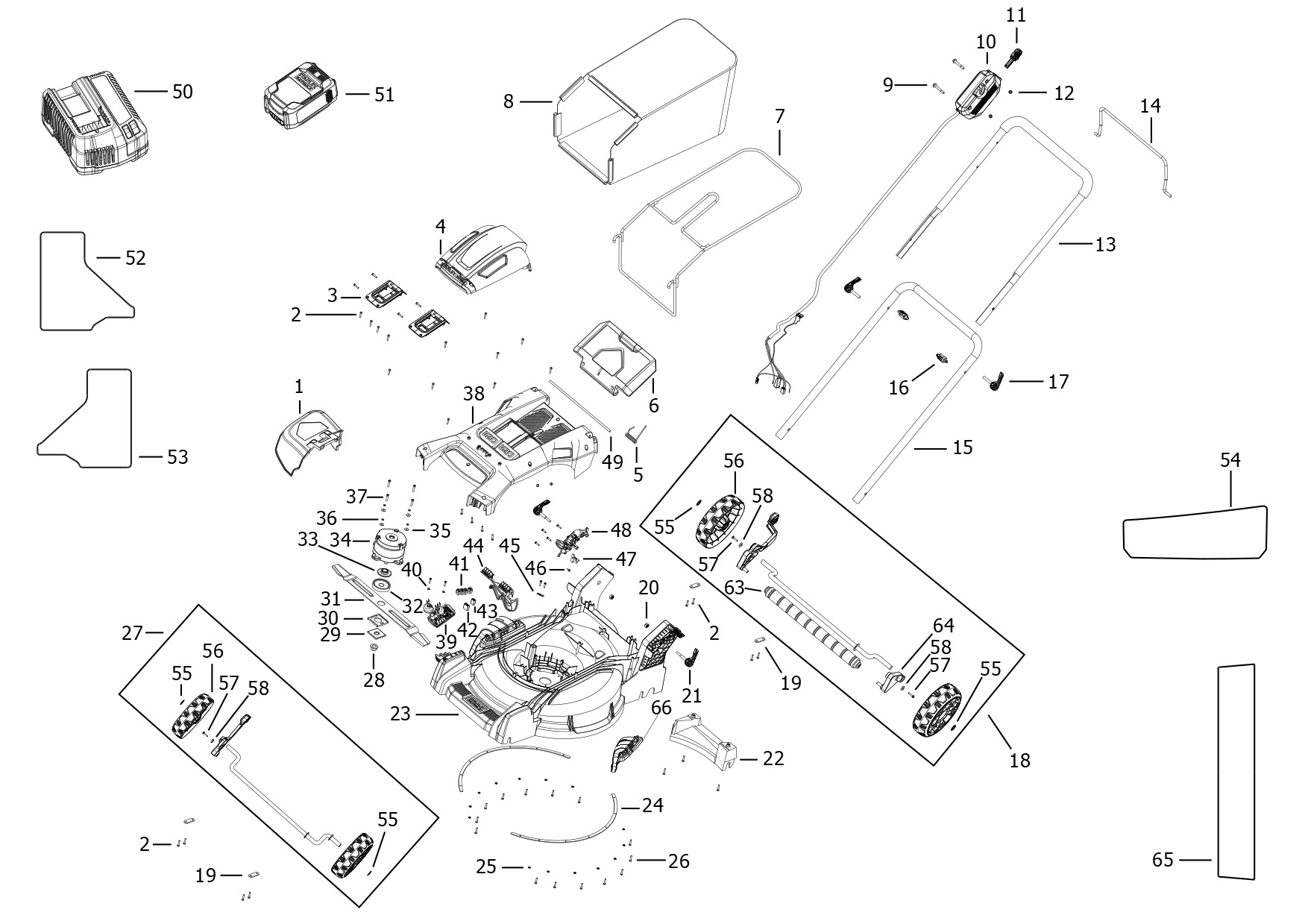

STANLEY CORDLESS MOWER (Type 1)
SKU Produs: SFMCMW2651B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N825345 | 1 | CHUTE | 19,95 Lei | |
| 2 | 330019-04 | 32 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 3 | N825133 | 1 | HOUSING | 10,29 Lei | |
| 4 | NA046544 | 1 | LID | 120,82 Lei | |
| 5 | N572158 | 1 | SPRING | 5,21 Lei | |
| 6 | N825801 | 1 | DOOR | 34,05 Lei | |
| 7 | N822020 | 1 | FRAME | 106,98 Lei | |
| 8 | N851018 | 1 | BAG | 213,19 Lei | |
| 9 | N591023 | 2 | BOLT | 4,57 Lei | |
| 10 | NA006329 | 1 | SWITCH SA | 383,69 Lei | |
| 11 | N838934 | 1 | KEY | 5,21 Lei | |
| 12 | N541610 | 2 | LOCK-NUT | 4,57 Lei | |
| 13 | N843627 | 1 | HANDLE | 120,82 Lei | |
| 14 | N838980 | 1 | LEVER | 25,54 Lei | |
| 15 | N805259 | 1 | HANDLE | 120,82 Lei | |
| 16 | N838983 | 2 | WING NUT | 6,23 Lei | |
| 17 | NA046545 | 2 | CLAMP | 57,81 Lei | |
| 18 | NA087207 | 1 | BEAM | 451,79 Lei | |
| 19 | N523499 | 4 | PLATE | 4,57 Lei | |
| 20 | N535210 | 2 | NUT | 4,57 Lei | |
| 21 | NA046543 | 2 | KNOB SA | 70,39 Lei | |
| 22 | N813018 | 1 | CHUTE | 17,02 Lei | |
| 24 | N886167 | 2 | SUPPORT | 19,95 Lei | |
| 25 | N897843 | 14 | WASHER | 4,57 Lei | |
| 26 | 330019-03 | 22 | Screw M3.5X16 T15 | 4,57 Lei | |
| 27 | NA046542 | 1 | BEAM | 307,21 Lei | |
| 28 | N538858 | 1 | BOLT | 7,37 Lei | |
| 29 | N850257 | 1 | SPACER | 12,71 Lei | |
| 30 | 90541434 | 1 | WASHER INSULATING | 5,21 Lei | |
| 31 | N805216 | 1 | BLADE | 106,98 Lei | |
| 32 | N806937 | 1 | SPACER | 4,57 Lei | |
| 33 | N806936 | 1 | SPACER | 13,85 Lei | |
| 34 | N763441 | 1 | MOTOR SA | 613,14 Lei | |
| 35 | N873636 | 4 | WASHER | 4,57 Lei | |
| 36 | 098197-11 | 4 | WASHER LOCK | 4,57 Lei | |
| 37 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 38 | N838944 | 1 | COVER | 106,98 Lei | |
| 39 | NA085470 | 1 | MODULE | 451,79 Lei | |
| 40 | 330016-01 | 4 | WASHER | 4,57 Lei | |
| 41 | 650974-00 | 4 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 42 | N590958 | 1 | CONNECTOR | 13,85 Lei | |
| 43 | N590957 | 2 | CONNECTOR | 10,29 Lei | |
| 44 | N820302 | 1 | HARNESS | 41,93 Lei | |
| 45 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 46 | N601444 | 1 | SCREW | 4,57 Lei | |
| 47 | N828865 | 1 | CARRIER | 4,57 Lei | |
| 49 | N811797 | 1 | SHAFT | 7,37 Lei | |
| 53 | N844075 | 1 | RATING LABEL | 13 Lei | |
| 54 | N844074 | 1 | LABEL | 8,64 Lei | |
| 55 | N840352 | 4 | RETAINER RING | 4,57 Lei | |
| 56 | N823222 | 4 | WHEEL | 41,93 Lei | |
| 57 | N093602 | 2 | SCREW | 4,57 Lei | |
| 58 | N871172 | 2 | WASHER | 4,57 Lei | |
| 63 | N823610 | 1 | ROLLER | 25,54 Lei | |
| 64 | N824834 | 1 | BRACKET | 19,95 Lei | |
| 65 | N844077 | 1 | LABEL | 4,57 Lei |
