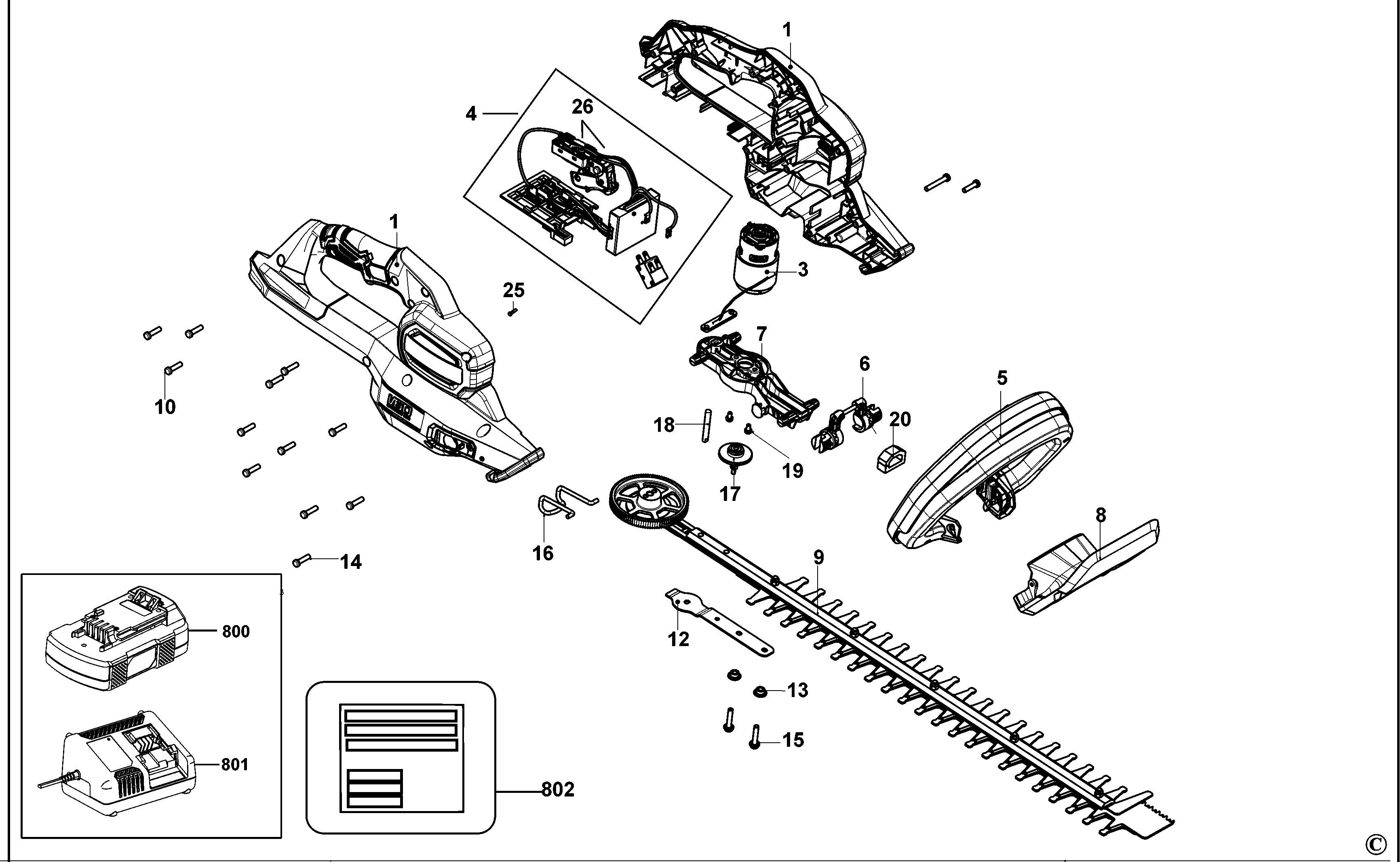

STANLEY HEDGE TRIMMER (Type H1)
SKU Produs: SFMCHT855 /Type: H1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N727476 | 1 | CLAMSHELL PAIR | 157,92 Lei | |
| 3 | 90626374 | 1 | MOTOR SA | 145,09 Lei | |
| 4 | N726853 | 1 | MODULE | 318,26 Lei | |
| 5 | N602344 | 1 | HANDLE | 70,39 Lei | |
| 6 | N599688 | 1 | YOKE | 12,71 Lei | |
| 7 | N516639 | 1 | GEARBOX | 25,54 Lei | |
| 8 | N579683 | 1 | GUARD | 15,12 Lei | |
| 9 | N724810 | 1 | BLADE SA | 433,24 Lei | |
| 10 | 330019-13 | 15 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 12 | 90570808 | 1 | PLATE | 10,29 Lei | |
| 13 | N603748 | 1 | SPACER | 4,57 Lei | |
| 14 | N632526 | 12 | SCREW | 4,57 Lei | |
| 15 | N637114 | 2 | BOLT | 4,57 Lei | |
| 16 | N545340 | 1 | CLIP VERSATRACK OUTDOOR | 7,37 Lei | |
| 17 | 90625529 | 1 | PINION | 34,8 Lei | |
| 18 | 90597621 | 1 | AXLE | 5,21 Lei | |
| 19 | 90629498 | 1 | SCREW | 4,57 Lei | |
| 20 | N692632 | 1 | FELT | 6,23 Lei | |
| 25 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 26 | N762308 | 1 | TRIGGER | 80,04 Lei | |
| 802 | NA072197 | 1 | RATING LABEL | 4,7 Lei |
