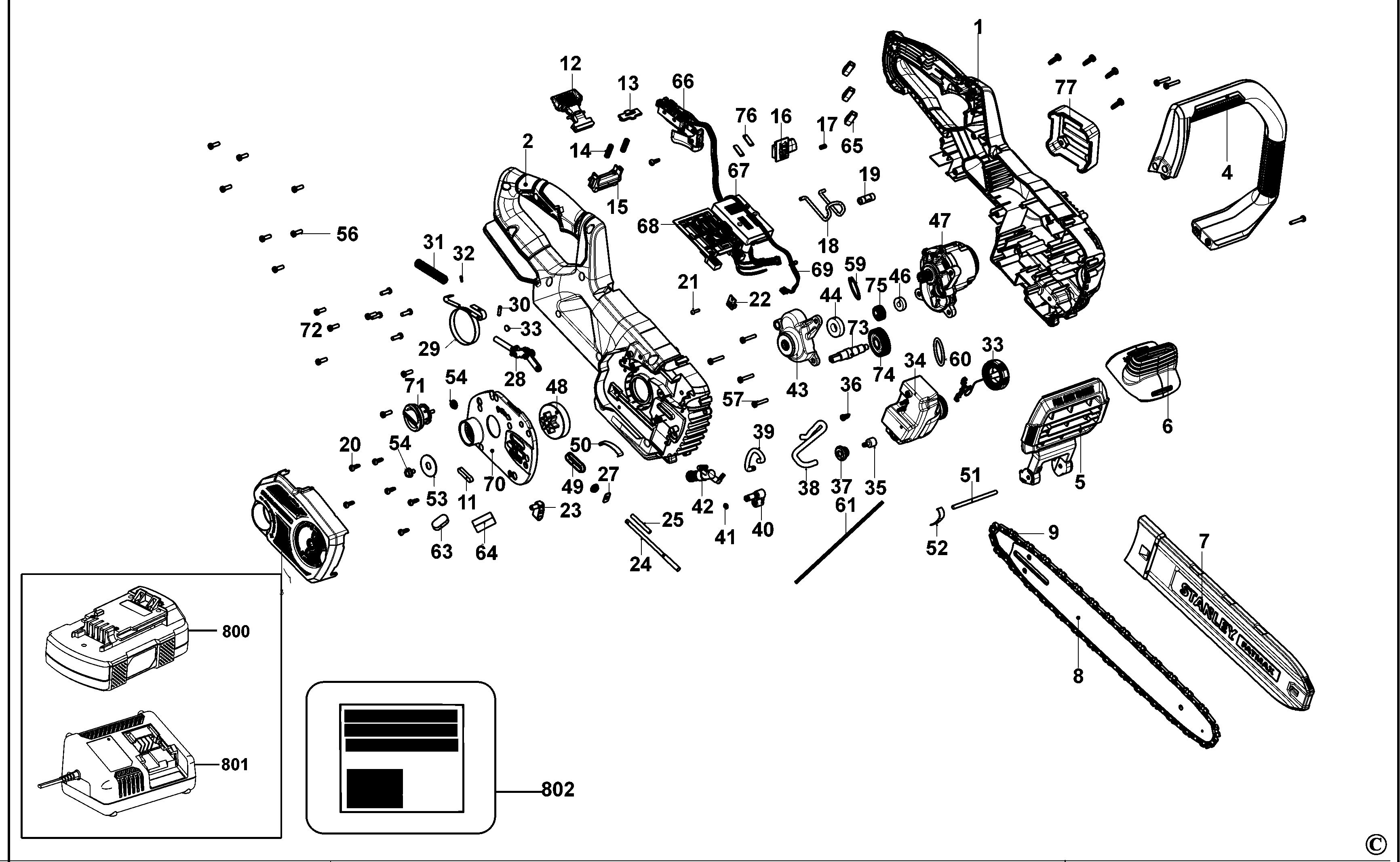

STANLEY CHAINSAW (Type 1)
SKU Produs: SFMCCSB664B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N718064 | 1 | HOUSING SA | 240,38 Lei | |
| 2 | N718064 | 1 | HOUSING SA | 240,38 Lei | |
| 3 | N718972 | 1 | COVER | 88,55 Lei | |
| 4 | N587755 | 1 | HANDLE | 41,93 Lei | |
| 5 | N595482 | 1 | GUARD | 30,87 Lei | |
| 6 | N638358 | 1 | DUST GUARD | 34,05 Lei | |
| 7 | N715951 | 1 | SHEATH | 30,87 Lei | |
| 8 | N727095 | 1 | BAR | 106,98 Lei | |
| 9 | N594321 | 1 | CHAIN | 96,56 Lei | |
| 11 | 90622086 | 1 | SEAL | 4,57 Lei | |
| 12 | N580658 | 1 | Button Latch CM 60V | 6,23 Lei | |
| 13 | 90607453 | 1 | SUPPORT | 4,57 Lei | |
| 13 | 90607542 | 1 | BRAND LABEL | 4,5 Lei | |
| 14 | 90606558 | 2 | SPRING | 4,57 Lei | |
| 15 | N562080 | 1 | TOOL LATCH SLIDER CRAFTSMAN 60V | 6,23 Lei | |
| 16 | N601230 | 1 | LOCK KNOB | 5,21 Lei | |
| 17 | N433343 | 1 | SPRING | 4,57 Lei | |
| 18 | N545340 | 1 | CLIP VERSATRACK OUTDOOR | 7,37 Lei | |
| 19 | N554737 | 1 | LEVEL | 12,71 Lei | |
| 20 | 330019-11 | 7 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 21 | 330019-28 | 1 | SCREW | 4,57 Lei | |
| 22 | N576084 | 1 | SENSOR | 37,73 Lei | |
| 25 | 90090721 | 1 | PIN | 4,57 Lei | |
| 28 | N561356 | 1 | BRAKE SA | 41,93 Lei | |
| 29 | 90638025 | 1 | STRAP | 7,37 Lei | |
| 30 | 90627301 | 1 | SPIROL PIN | 4,57 Lei | |
| 32 | 90594864 | 1 | PIN | 4,57 Lei | |
| 33 | N572224 | 1 | MAGNET | 6,4 Lei | |
| 34 | N566823 | 1 | TANK | 30,87 Lei | |
| 35 | 90622705 | 1 | FILTER SA | 6,23 Lei | |
| 36 | 90618295 | 1 | VALVE | 4,57 Lei | |
| 37 | 90104259 | 1 | SEAL | 4,57 Lei | |
| 38 | 90609541 | 1 | TUBE | 7,37 Lei | |
| 39 | 90609542 | 1 | TUBE | 5,21 Lei | |
| 40 | 90104269 | 1 | PLUG | 7,37 Lei | |
| 41 | 90104270 | 1 | O RING | 4,57 Lei | |
| 42 | 90624557 | 1 | PUMP SA | 30,87 Lei | |
| 43 | N722871 | 1 | COVER | 57,81 Lei | |
| 44 | N150961 | 1 | BEARING | 15,12 Lei | |
| 46 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 47 | N775805 | 1 | MOTOR SA | 389,28 Lei | |
| 48 | 90618228 | 1 | SPROCKET | 25,54 Lei | |
| 49 | 90618051 | 1 | SEAL | 4,57 Lei | |
| 50 | 90621730 | 1 | LEAF SPRING | 4,57 Lei | |
| 51 | 90618528 | 1 | PIN | 7,37 Lei | |
| 53 | 90618229 | 1 | WASHER | 4,57 Lei | |
| 54 | 90639221 | 1 | BOLT | 4,57 Lei | |
| 56 | 330019-12 | 17 | SCREW | 4,57 Lei | |
| 57 | 330019-14 | 7 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 59 | 90551022 | 1 | RING | 4,57 Lei | |
| 60 | N564358 | 1 | GASKET | 4,57 Lei | |
| 61 | 90620889 | 1 | SPRING | 4,57 Lei | |
| 63 | 90625343 | 1 | FOAM | 4,57 Lei | |
| 65 | 650974-00 | 1 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 65 | N737355 | 1 | CONNECTOR | 7,37 Lei | |
| 67 | N854520 | 1 | MODULE | 361,33 Lei | |
| 68 | N726725 | 1 | TERMINAL BLOCK | 52,22 Lei | |
| 69 | N726723 | 1 | HARNESS | 130,35 Lei | |
| 70 | 90609778 | 1 | COVER | 17,02 Lei | |
| 71 | N566816 | 1 | TENSIONING PULLEY | 17,02 Lei | |
| 72 | 90617659 | 1 | Gear | 6,23 Lei | |
| 73 | N687542 | 1 | OUTPUT SHAFT | 19,95 Lei | |
| 74 | 90618517 | 1 | Gear | 25,54 Lei | |
| 75 | N687543 | 1 | SEAL | 5,21 Lei | |
| 76 | N755866 | 1 | TIP | 4,57 Lei | |
| 77 | N594886 | 1 | MOTOR CAP CRAFTSMAN 60V CHAINSAW | 8,64 Lei | |
| 802 | N727921 | 1 | RATING LABEL | 4,57 Lei |
