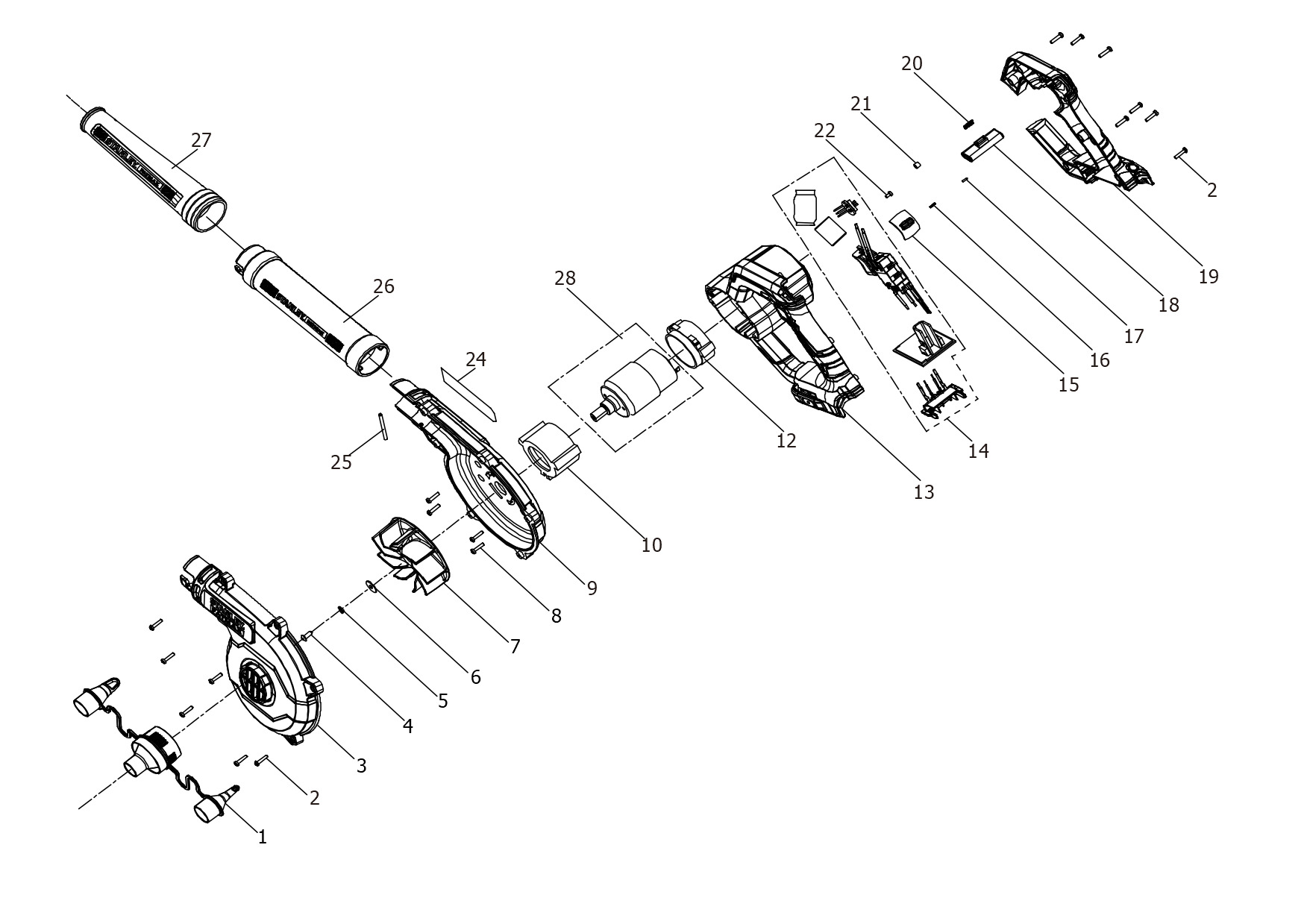

STANLEY BLOWER (Type 1)
SKU Produs: SFMCBL01B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5170046-00 | 1 | ADAPTOR SA | 21,11 Lei | |
| 2 | N433236 | 13 | SCREW | 5,21 Lei | |
| 3 | N851804 | 1 | COVER | 47,78 Lei | |
| 4 | N433233 | 1 | SCREW | 4,57 Lei | |
| 5 | N433232 | 1 | WASHER SPRING | 4,57 Lei | |
| 6 | N433229 | 1 | WASHER | 4,57 Lei | |
| 7 | N433228 | 1 | FAN | 21,85 Lei | |
| 8 | N433235 | 4 | SCREW | 4,57 Lei | |
| 9 | N851806 | 1 | COVER | 47,78 Lei | |
| 10 | N433226 | 1 | PAD | 12,71 Lei | |
| 11 | 5170046-01 | 1 | MOTOR | 161,18 Lei | |
| 12 | N433227 | 1 | PAD | 12,71 Lei | |
| 13 | N851811 | 1 | MOTOR COVER | 73,19 Lei | |
| 14 | N851828 | 1 | PCB SA | 288,54 Lei | |
| 15 | 5170046-02 | 1 | BUTTON | 5,15 Lei | |
| 16 | N440805 | 1 | SPRING | 4,57 Lei | |
| 17 | N440804 | 1 | PIN | 4,57 Lei | |
| 18 | 5170046-03 | 1 | BUTTON | 6,09 Lei | |
| 19 | N851814 | 1 | HANDLE | 34,65 Lei | |
| 20 | N433493 | 1 | SPRING | 4,57 Lei | |
| 21 | N433189 | 1 | CYLINDER | 4,57 Lei | |
| 22 | N433234 | 1 | SCREW | 4,57 Lei | |
| 23 | 5170046-04 | 1 | DRIVE SHAFT | 21,11 Lei | |
| 24 | N717195 | 1 | RATING LABEL | 5,15 Lei | |
| 25 | 5170046-05 | 1 | NEEDLE | 5,15 Lei | |
| 26 | N851823 | 1 | EXTENSION | 34,65 Lei | |
| 27 | N851825 | 1 | TUBE | 43,16 Lei | |
| 28 | N433225 | 1 | MOTOR SA | 157,92 Lei |
