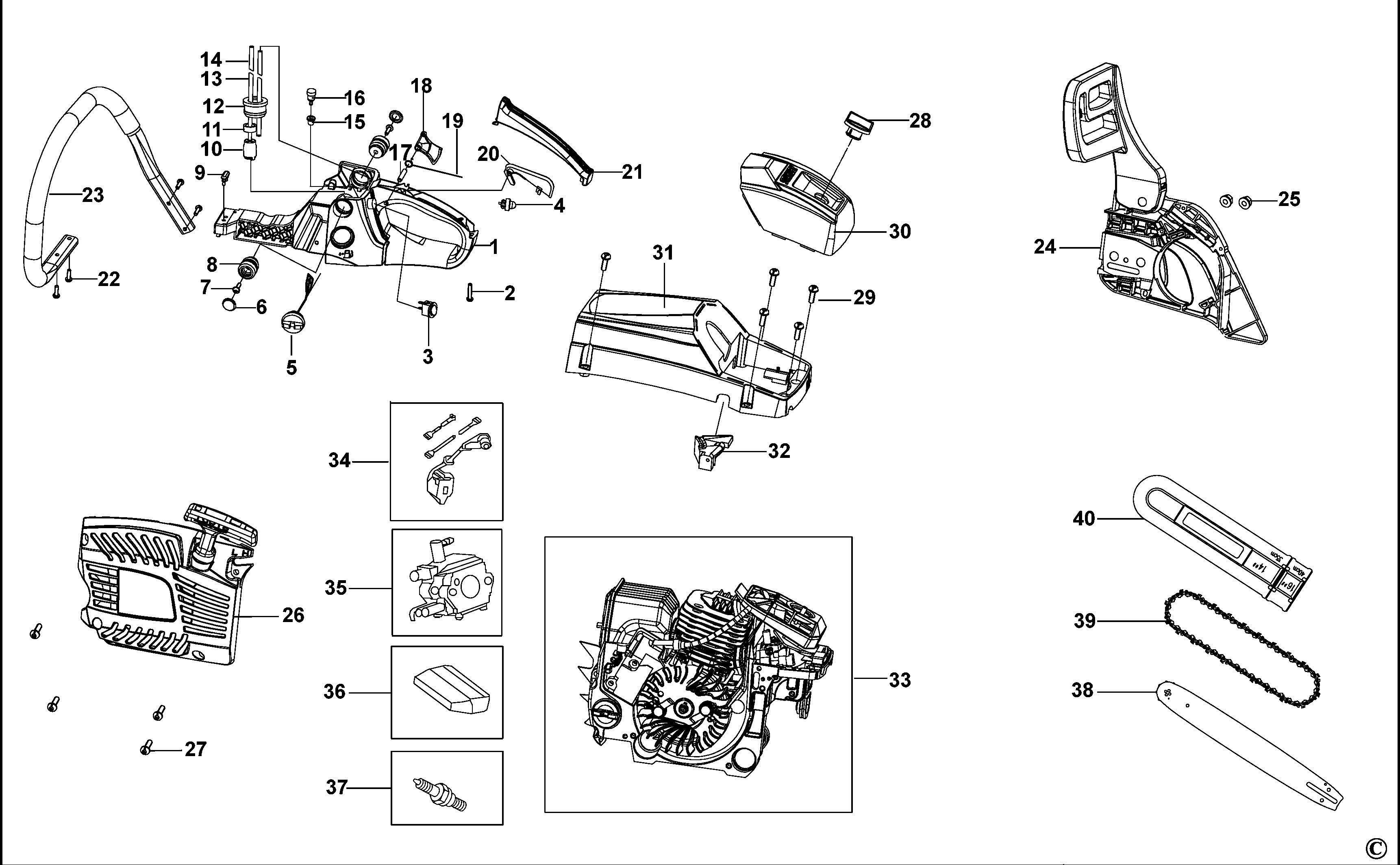

STANLEY CHAINSAW (Type 1)
SKU Produs: SCS-52 JET /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | E604100010A1 | 1 | TANK | 51 Lei | |
| 2 | E604100010A2 | 1 | SCREW | 4,5 Lei | |
| 3 | E604100010A3 | 1 | SWITCH | 7,2 Lei | |
| 4 | E604100010A4 | 1 | LEVEL | 12,4 Lei | |
| 5 | E604100010A5 | 1 | CAP SA | 4,5 Lei | |
| 6 | E604100010A6 | 2 | COVER | 4,5 Lei | |
| 7 | E604100010A7 | 2 | SCREW | 4,5 Lei | |
| 8 | E604100010A8 | 2 | SEAT | 4,5 Lei | |
| 9 | E604100010A9 | 1 | DAMPER | 4,5 Lei | |
| 10 | E604100010A10 | 1 | FILTER | 5,1 Lei | |
| 11 | E604100010A11 | 1 | WEIGHT | 4,5 Lei | |
| 12 | E604100010A12 | 1 | SEAT | 4,5 Lei | |
| 15 | E604100010A15 | 1 | HOLDER | 4,5 Lei | |
| 16 | E604100010A16 | 1 | BALANCE WEIGHT | 6,1 Lei | |
| 17 | E604100010A17 | 1 | PIN | 4,5 Lei | |
| 18 | E604100010A18 | 1 | TRIGGER | 4,5 Lei | |
| 20 | E604100010A20 | 1 | LEVER LOCK-OFF | 4,5 Lei | |
| 22 | E604100010A22 | 4 | SCREW | 4,5 Lei | |
| 23 | E604100010A23 | 1 | HANDLE SA | 68,7 Lei | |
| 25 | E604100010B3 | 2 | NUT | 4,5 Lei | |
| 26 | E604100010C0 | 1 | STARTER SA | 51 Lei | |
| 27 | E604100010C1 | 4 | SCREW | 4,5 Lei | |
| 28 | E604100010-D1 | 1 | NUT | 4,5 Lei | |
| 29 | E604100010-D4 | 5 | SCREW | 4,5 Lei | |
| 30 | E604100010-D3 | 1 | COVER | 19,5 Lei | |
| 31 | E604100010-D5 | 1 | COVER-TOP | 36,8 Lei | |
| 32 | E604100010-D7 | 1 | COVER | 4,5 Lei | |
| 34 | E604100010-E2 | 1 | COIL SA | 68,7 Lei | |
| 35 | E604100010-E3 | 1 | CARBURETTOR SA | 357,2 Lei | |
| 36 | E604100010-E4 | 1 | FILTER SA | 16,6 Lei | |
| 37 | E604100010-E5 | 1 | SPARK PLUG | 30,1 Lei | |
| 38 | E604100010-F2 | 1 | BAR | 234,6 Lei | |
| 39 | E604100010-F1 | 1 | CHAIN | 234,6 Lei | |
| 40 | E604100010-F3 | 1 | SHEATH | 12,4 Lei |
