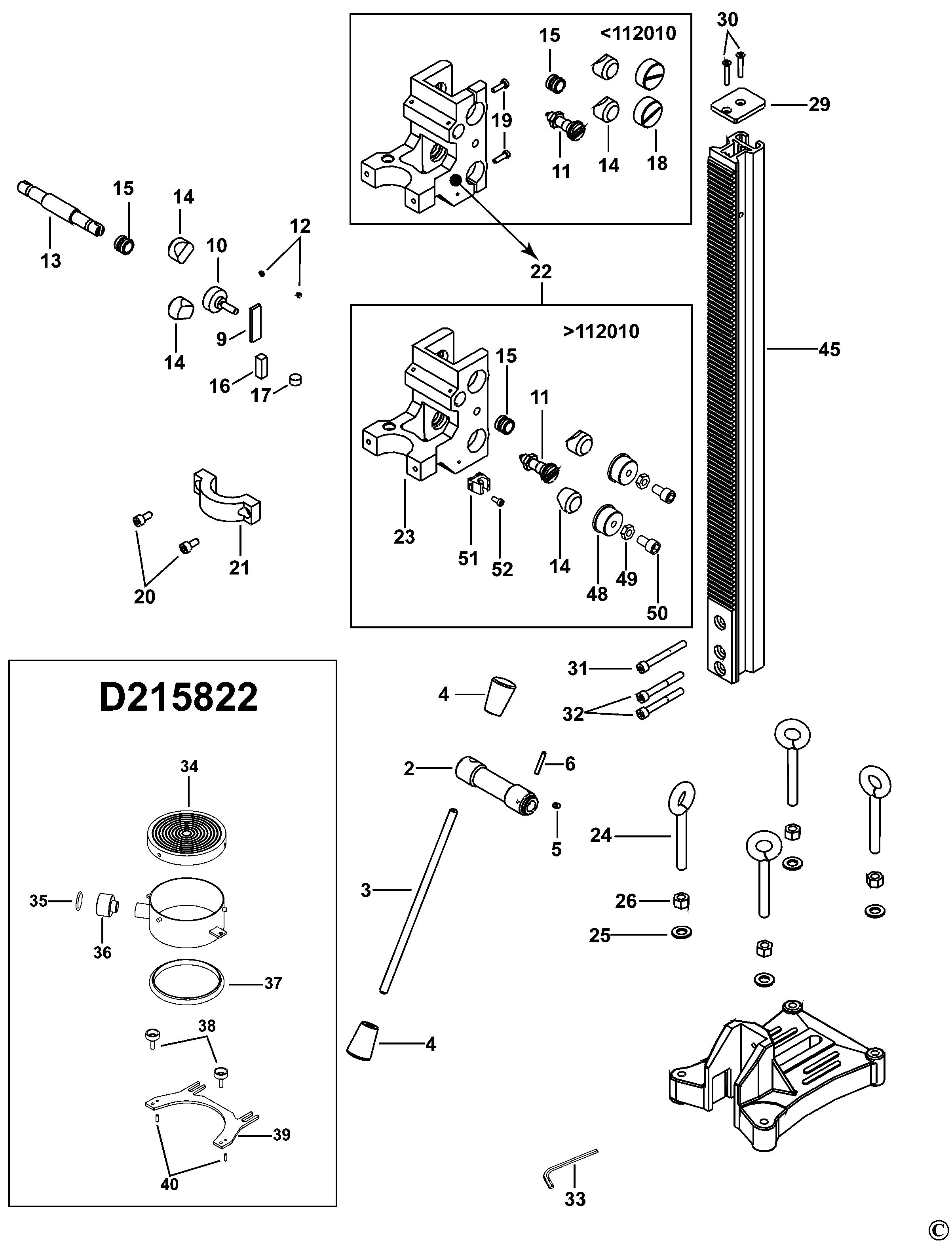

DRILL STAND
SKU Produs: D215821 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 1002936-00 | 1 | HANDLE | 120,82 Lei | |
| 3 | 1002937-00 | 1 | LEVER | 80,04 Lei | |
| 4 | 1002935-00 | 2 | CONE | 80,04 Lei | |
| 5 | 1002933-00 | 1 | CLIP | 25,54 Lei | |
| 6 | 1002927-00 | 1 | PIN | 13,85 Lei | |
| 9 | 1002944-00 | 1 | PLATE | 41,93 Lei | |
| 10 | 1002934-00 | 1 | LOCKING SCREW | 70,39 Lei | |
| 11 | 1002942-00 | 1 | BOLT | 195,02 Lei | |
| 12 | 1002945-00 | 2 | GRUB SCREW | 13,85 Lei | |
| 13 | 1002943-00 | 1 | PINION | 375,31 Lei | |
| 14 | 1002938-00 | 2 | THRUST PLATE | 52,22 Lei | |
| 15 | 1002939-00 | 2 | BEARING BUSH | 70,39 Lei | |
| 16 | 1002931-00 | 1 | LEVEL | 57,81 Lei | |
| 17 | 1002932-00 | 1 | LEVEL | 70,39 Lei | |
| 18 | 1002956-00 | 2 | SCREW.SPECIAL | 80,04 Lei | |
| 19 | 1002947-00 | 2 | SCREW.SPECIAL | 13,85 Lei | |
| 20 | 1002948-00 | 2 | SCREW.SPECIAL | 13,85 Lei | |
| 21 | 1002955-00 | 1 | PLATE D215821 | 200,99 Lei | |
| 22 | 1004529-00 | 1 | REPAIR KIT | 2410,27 Lei | |
| 23 | 1004529-01 | 1 | SLIDER | 1786,07 Lei | |
| 24 | 1002929-00 | 4 | BOLT | 41,93 Lei | |
| 25 | 1002930-00 | 4 | WASHER | 13,85 Lei | |
| 26 | 1002928-00 | 4 | NUT | 13,85 Lei | |
| 29 | 1002957-00 | 1 | CAP | 57,81 Lei | |
| 30 | 1002940-00 | 2 | SCREW | 17,02 Lei | |
| 31 | 1002941-00 | 1 | BOLT | 13,85 Lei | |
| 32 | 1002946-00 | 1 | BOLT | 13,85 Lei | |
| 33 | 1003202-00 | 1 | HEX KEY 6 MM | 15,12 Lei | |
| 34 | 1003358-00 | 1 | RUBBER SEAL | 157,92 Lei | |
| 35 | 1002971-00 | 1 | RING | 13,85 Lei | |
| 36 | 1002673-00 | 1 | ADAPTOR | 331,47 Lei | |
| 37 | 1002972-00 | 1 | SEAL | 120,82 Lei | |
| 38 | 1002934-00 | 2 | LOCKING SCREW | 70,39 Lei | |
| 39 | 1003359-00 | 1 | BRACKET | 252,58 Lei | |
| 40 | 1002958-00 | 2 | PIN | 13,85 Lei | |
| 45 | 1004565-00 | 1 | COLUMN | 3011,72 Lei | |
| 48 | 1002979-00 | 2 | CAP | 41,93 Lei | |
| 49 | 1002961-00 | 2 | NUT | 13,85 Lei | |
| 50 | 1002964-00 | 2 | SCREW | 15,12 Lei | |
| 51 | 1004529-02 | 1 | CABLE CLAMP | 96,56 Lei | |
| 52 | 1004529-03 | 1 | SCREW | 13,85 Lei |
