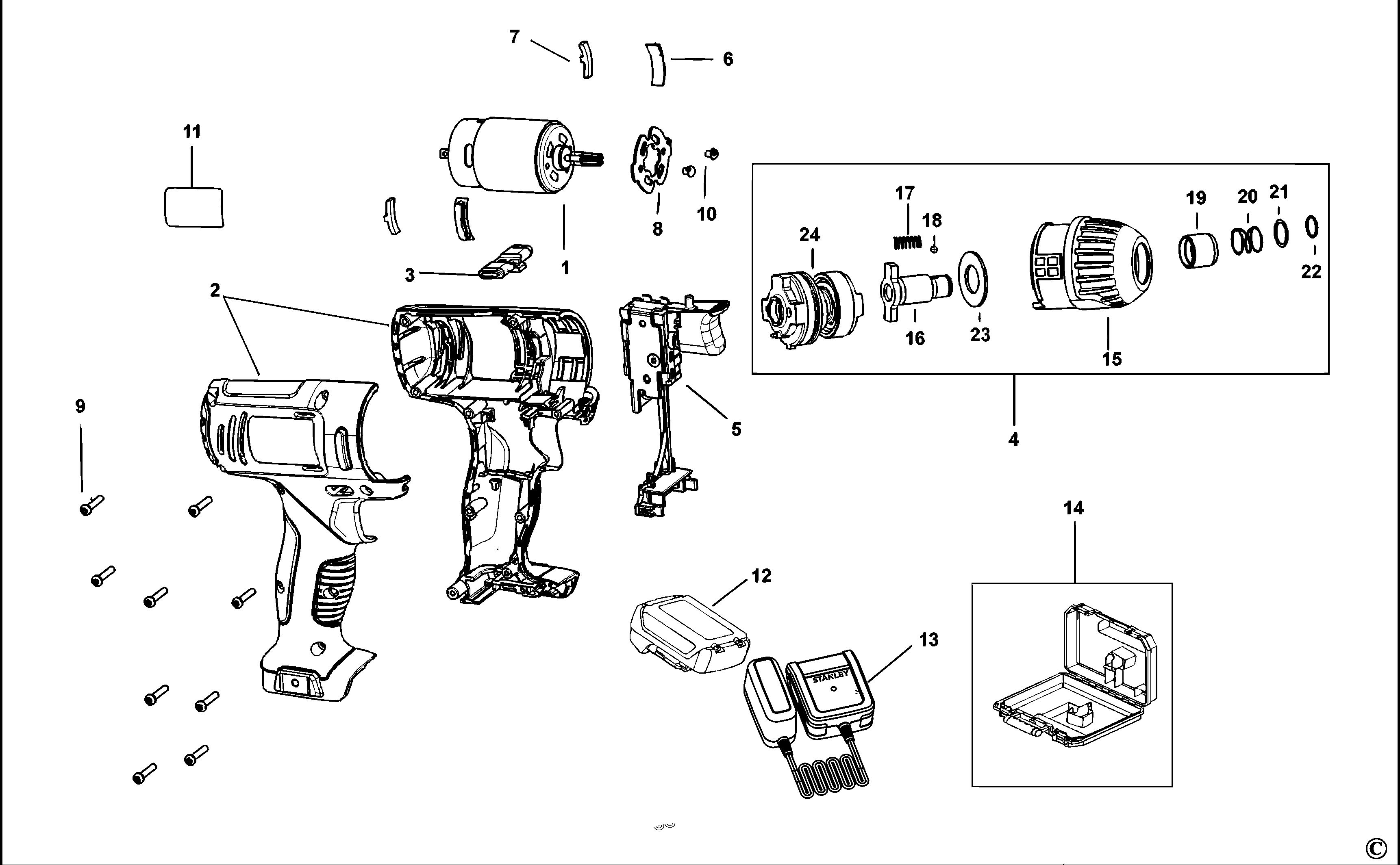

STANLEY DRILL (Type 1)
SKU Produs: SCI121S2K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N457130 | 1 | MOTOR AND PINION | 80,04 Lei | |
| 2 | N441398 | 1 | HOUSING SA | 38,6 Lei | |
| 3 | N432808 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 4 | N441418 | 1 | TRANSMISSION SA | 225,26 Lei | |
| 5 | N371619 | 1 | D2 E SWITCH DRILL WITH EMI | 252,58 Lei | |
| 6 | N441397 | 2 | RUBBER | 4,57 Lei | |
| 7 | N431109 | 2 | RUBBER | 4,57 Lei | |
| 8 | N029891 | 1 | PLATE | 6,23 Lei | |
| 9 | 682211-00 | 9 | SCREW, PLASTITE | 4,57 Lei | |
| 10 | 330024-54 | 2 | MACHINE SCREW M3 X 0.5 | 4,57 Lei | |
| 14 | N653734 | 1 | KITBOX | 72 Lei | |
| 15 | N459468 | 1 | NOSE SA | 34,05 Lei | |
| 16 | N459469 | 1 | ANVIL ASSEMBLY | 70,39 Lei | |
| 17 | N459470 | 1 | SPRING | 4,57 Lei | |
| 18 | N459471 | 1 | BALL STEEL | 4,57 Lei | |
| 19 | N459472 | 1 | SLEEVE | 10,29 Lei | |
| 20 | N459474 | 1 | SPRING | 4,57 Lei | |
| 21 | N459473 | 1 | WASHER | 4,57 Lei | |
| 22 | N459475 | 1 | RETAINER | 6,23 Lei | |
| 23 | N459476 | 1 | WASHER | 5,21 Lei | |
| 24 | N459477 | 1 | CLUTCH SA | 200,99 Lei |
