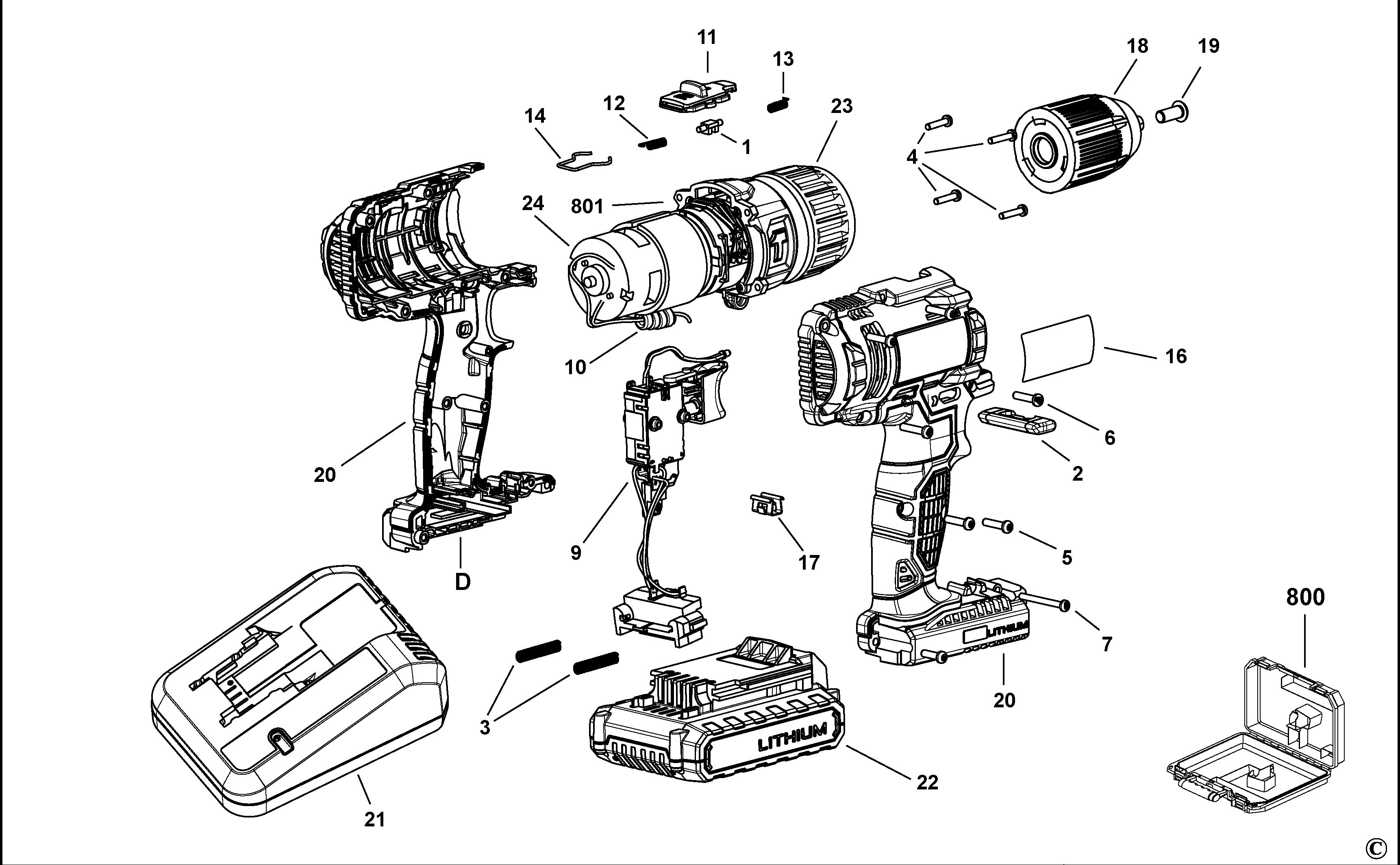

STANLEY HAMMER DRILL (Type 1)
SKU Produs: SCH201 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90569691-03 | 1 | HOLDER | 4,57 Lei | |
| 2 | 90569693-01 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 3 | 5100035-03 | 2 | SPRING | 4,57 Lei | |
| 4 | 5101046-00 | 4 | SCREW | 4,57 Lei | |
| 5 | 497283-01 | 1 | SCREW | 4,57 Lei | |
| 6 | 5106167-00 | 6 | SCREW | 4,57 Lei | |
| 7 | 486578-00 | 1 | SCREW | 4,57 Lei | |
| 9 | 90609167 | 1 | SWITCH SA | 120,82 Lei | |
| 10 | 90596605 | 4 | RING | 4,57 Lei | |
| 11 | 90593143-02 | 1 | RETRACT LOCKING TOOL LYD | 7,37 Lei | |
| 12 | 90591282 | 1 | SPRING LH | 4,57 Lei | |
| 13 | 90600347 | 1 | SPRING RH | 4,57 Lei | |
| 14 | 90556568 | 1 | LEAF SPRING | 4,57 Lei | |
| 17 | 148354-03 | 1 | CLIP, BIT HOLDER | 4,57 Lei | |
| 18 | 90629418 | 1 | CHUCK,WEIDA SG13LF 1/2 PLASTIC SLEEVE | 120,82 Lei | |
| 19 | 5103096-01 | 1 | SCREW | 4,57 Lei | |
| 20 | 90597016-02 | 1 | HOUSING SA | 52,22 Lei | |
| 23 | 90629583-04 | 1 | TRANSMISSION SA | 252,58 Lei | |
| 24 | 90629582-03 | 1 | GEARBOX SA | 383,69 Lei | |
| 24 | 90636865 | 1 | MOTOR AND PINION | 120,82 Lei |
