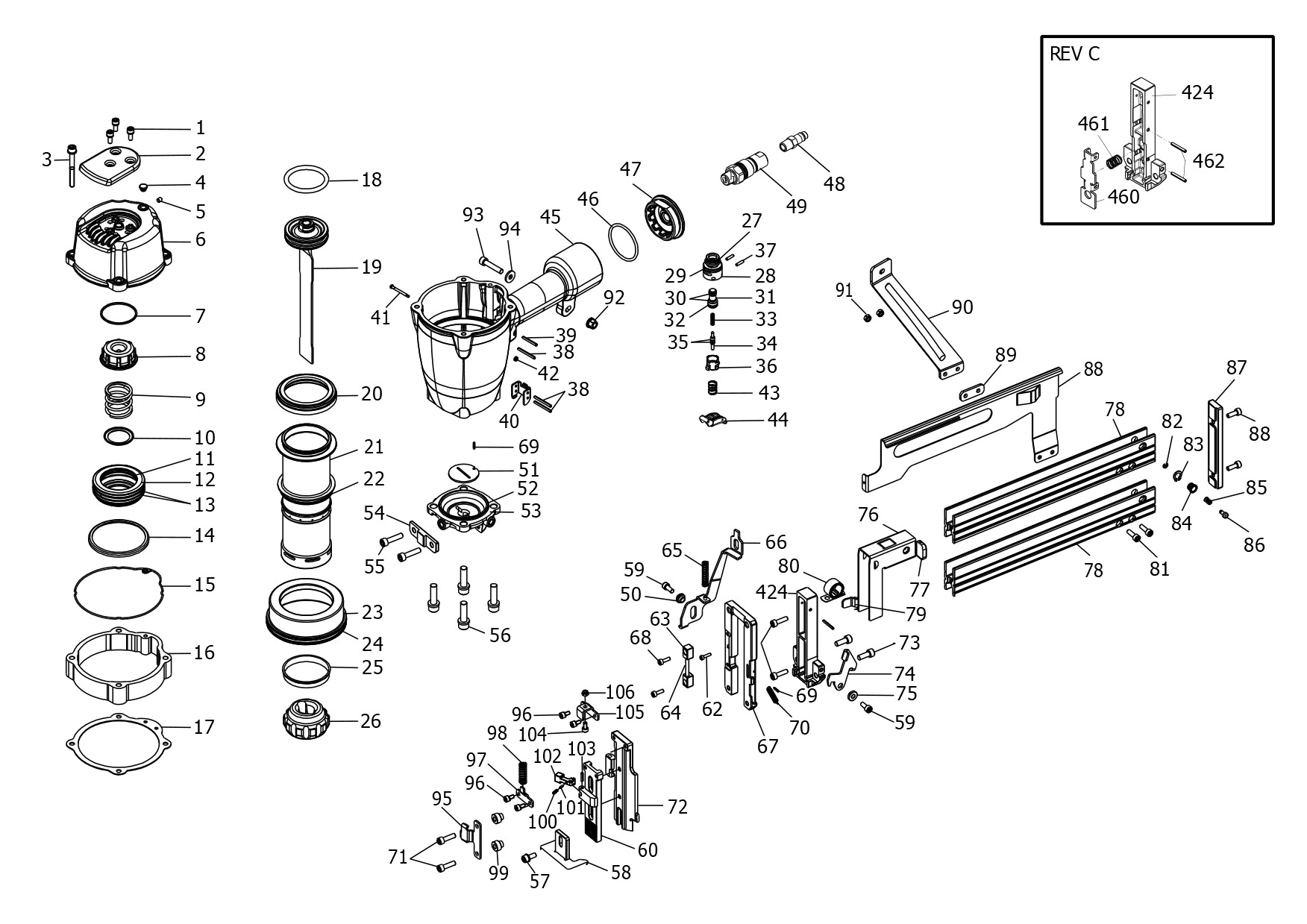

BOSTITCH PNEUMATIC STAPLER (Type REV C)
SKU Produs: SB130S1-2-E /Type: REV C
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 2040100-03090 | 1 | BOLT ASSY | 4,31 Lei | |
| 2 | 11371-0374706 | 1 | DEFLECTOR | 25,52 Lei | |
| 3 | 2040100-04171 | 1 | BOLT ASSY | 6,09 Lei | |
| 4 | 1135S-0350001 | 1 | GROMMET | 5,15 Lei | |
| 5 | 2040104-03010 | 1 | HEX.SOC.HD.SCREW | 5,15 Lei | |
| 6 | 11369-0374309 | 1 | CAP | 310,17 Lei | |
| 7 | 11380-0374702 | 1 | GASKET | 6,09 Lei | |
| 8 | 11370-0370003 | 1 | SEAL | 66,15 Lei | |
| 9 | 11360-0370001 | 1 | COMPRESSION SPRING | 12,5 Lei | |
| 10 | 11381-0370003 | 1 | WASHER | 14,07 Lei | |
| 11 | 2041108-05050 | 1 | O-RING | 16,49 Lei | |
| 13 | 2041108-07040 | 1 | O-RING | 12,5 Lei | |
| 14 | 1136D-0374701 | 1 | PRESS RING | 16,49 Lei | |
| 15 | 11302-0374705 | 1 | CYLINDER CAP SEAL | 14,07 Lei | |
| 16 | 1130E-1524301 | 1 | CAP | 238,88 Lei | |
| 17 | 1130B-1524701 | 1 | GASKET | 28,14 Lei | |
| 18 | 2041104-05091 | 1 | O-RING | 5,15 Lei | |
| 19 | 11204-1520001 | 1 | DRIVER SA | 1,38 Lei | |
| 20 | 11399-0370002 | 1 | COLLER | 31,19 Lei | |
| 21 | 11320-1520001 | 1 | CYLINDER | 898,7 Lei | |
| 22 | 2041106-07020 | 1 | O-RING | 5,15 Lei | |
| 23 | 11321-1520001 | 1 | CYLINDER SPACER | 253,89 Lei | |
| 24 | 2041108-10010 | 1 | O-RING | 11,45 Lei | |
| 25 | 11322-0370002 | 1 | CYLINDER RING | 6,09 Lei | |
| 26 | 11327-1524701 | 1 | BUMPER | 139,97 Lei | |
| 27 | 2041104-02020 | 1 | O-RING | 3,78 Lei | |
| 28 | 11374-0084701 | 1 | PLUNGER CAP | 12,5 Lei | |
| 29 | 2041104-02030 | 1 | O-RING | 4,57 Lei | |
| 30 | 2041100-01070 | 1 | O-RING | 3,78 Lei | |
| 31 | 1133S-0250002 | 1 | VALVE PLUNGER | 18,06 Lei | |
| 32 | 2041100-01030 | 1 | O-RING | 3,78 Lei | |
| 33 | 11376-0254701 | 1 | SPRING | 3,78 Lei | |
| 34 | 11375-0084701 | 1 | PLUNGER | 3,78 Lei | |
| 35 | 2041102-01030 | 1 | O-RING | 3,78 Lei | |
| 36 | 11373-0084701 | 1 | HEAD | 6,23 Lei | |
| 37 | 2040400-05060 | 1 | SPRING PIN | 3,78 Lei | |
| 38 | 2040400-05160 | 1 | SPRING PIN | 3,78 Lei | |
| 39 | 2040400-05130 | 1 | SPRING PIN | 4,57 Lei | |
| 40 | 11338-0374703 | 1 | SAFETY GUIDE | 14,07 Lei | |
| 41 | 11318-0374701 | 1 | TRIGGER PIVOT PIN | 5,15 Lei | |
| 43 | 11376-0370001 | 1 | SPRING | 3,78 Lei | |
| 44 | 11224-0371102 | 1 | TRIGGER UNIT | 25,52 Lei | |
| 45 | 11230-0378001 | 1 | GUN BODY UNIT | 330,12 Lei | |
| 46 | 2041108-05040 | 1 | O-RING | 5,15 Lei | |
| 47 | 11346-0371310 | 1 | END CAP | 47,78 Lei | |
| 48 | 1135V-0000003 | 1 | ADAPTOR | 18,06 Lei | |
| 49 | 11217-1520001 | 1 | VALVE | 341,25 Lei | |
| 50 | 11398-1524704 | 1 | LATCH SPRING BUSHING C | 12,5 Lei | |
| 51 | 11388-1524701 | 1 | DRIVER GUIDE | 14,07 Lei | |
| 52 | 2041101-07010 | 1 | O-RING | 4,31 Lei | |
| 53 | 11326-1524701 | 1 | BASE | 589,89 Lei | |
| 54 | 11353-1524701 | 1 | DRIVER GUIDE COVER B | 107,73 Lei | |
| 55 | 2040101-04090 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 56 | 2040100-05010 | 1 | BOLT ASSY | 6,09 Lei | |
| 57 | 2040100-03240 | 1 | BOLT CAP | 4,31 Lei | |
| 58 | 11254-1524701 | 1 | SAFETY A UNIT | 273,95 Lei | |
| 59 | 2040101-03050 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 60 | 11257-1524702 | 1 | BRACKET | 330,12 Lei | |
| 62 | 2040101-02060 | 1 | HEX.SOC.HD.BOLT | 3,78 Lei | |
| 63 | 1131F-1524701 | 1 | ANCHOR BLOCK | 58,17 Lei | |
| 64 | 11329-1524701 | 1 | PIN | 16,49 Lei | |
| 65 | 11337-1524701 | 1 | SAFETY SPRING | 5,15 Lei | |
| 66 | 11256-1524701 | 1 | SAFETY B UNIT | 79,8 Lei | |
| 67 | 11303-1524702 | 1 | DRIVER GUIDE | 1,99 Lei | |
| 68 | 2040101-02070 | 1 | BOLT | 3,78 Lei | |
| 69 | 2040400-03050 | 1 | SPRING PIN | 3,78 Lei | |
| 70 | 11328-1524701 | 1 | PULL SPRING | 5,15 Lei | |
| 71 | 2040101-03080 | 1 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 72 | 11352-1524702 | 1 | GUIDE | 702,56 Lei | |
| 73 | 2040101-04040 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 74 | 1135Y-1524701 | 1 | LATCH | 21,11 Lei | |
| 75 | 11398-1524701 | 1 | LATCH SPRING BUSHING A | 12,5 Lei | |
| 76 | 11363-1524702 | 1 | PUSHER | 66,15 Lei | |
| 77 | 1135F-0684701 | 1 | PUSHER CUSHION | 11,45 Lei | |
| 78 | 11389-1520001 | 1 | MAGAZINE A | 310,17 Lei | |
| 79 | 2040400-04110 | 1 | SPRING PIN | 3,78 Lei | |
| 80 | 11278-1520001 | 1 | SPRING UNIT | 43,16 Lei | |
| 81 | 2040101-03070 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 82 | 2040302-23010 | 1 | E-RING | 3,78 Lei | |
| 83 | 2040301-10010 | 1 | SNAP RING | 3,78 Lei | |
| 84 | 1130W-1524701 | 1 | DOOR LATCH COVER | 18,06 Lei | |
| 85 | 11311-0074701 | 1 | LATCH SPRING | 3,78 Lei | |
| 86 | 11310-0074701 | 1 | DOOR LATCH | 5,15 Lei | |
| 87 | 11347-1524701 | 1 | REAR PLATE | 161,18 Lei | |
| 88 | 11348-1520001 | 1 | STAPLERS BRACKET | 373,38 Lei | |
| 89 | 11380-1524701 | 1 | GASKET | 34,65 Lei | |
| 90 | 11323-1524701 | 1 | BRACKET UNIT | 88,41 Lei | |
| 91 | 2040500-03020 | 1 | LOCK NUT | 3,78 Lei | |
| 92 | 2040501-04010 | 1 | BOLT CAP | 5,15 Lei | |
| 93 | 2040101-04110 | 1 | HEX.SOC.HD.BOLT | 3,78 Lei | |
| 94 | 2040202-04010 | 1 | FLAT WASHER | 5,15 Lei | |
| 95 | 1137A-1524701 | 1 | COVER | 12,5 Lei | |
| 96 | 2040100-02040 | 1 | BOLT | 5,15 Lei | |
| 97 | 1137A-1524702 | 1 | COVER | 8,51 Lei | |
| 98 | 11337-1684701 | 1 | SPRING | 3,78 Lei | |
| 99 | 11398-1524703 | 1 | BUSHING | 16,49 Lei | |
| 100 | 1137T-1524701 | 1 | SPRING | 3,78 Lei | |
| 101 | 2040400-03030 | 1 | PIN | 3,78 Lei | |
| 102 | 113AK-1524701 | 1 | STOP | 43,16 Lei | |
| 103 | 2040400-04060 | 1 | PIN | 3,78 Lei | |
| 104 | 2040101-02030 | 1 | BOLT | 3,78 Lei | |
| 105 | 1137A-1524703 | 1 | COVER | 11,45 Lei | |
| 106 | 2040500-02010 | 1 | LOCK NUT | 4,31 Lei | |
| 424 | 11303-1524705 | 1 | GUIDE | 1,38 Lei | |
| 460 | 1135B-1684701 | 1 | GUIDE | 16,49 Lei | |
| 461 | 11376-0260001 | 1 | SPRING | 3,78 Lei | |
| 462 | 2040400-05110 | 1 | PIN | 3,78 Lei |
