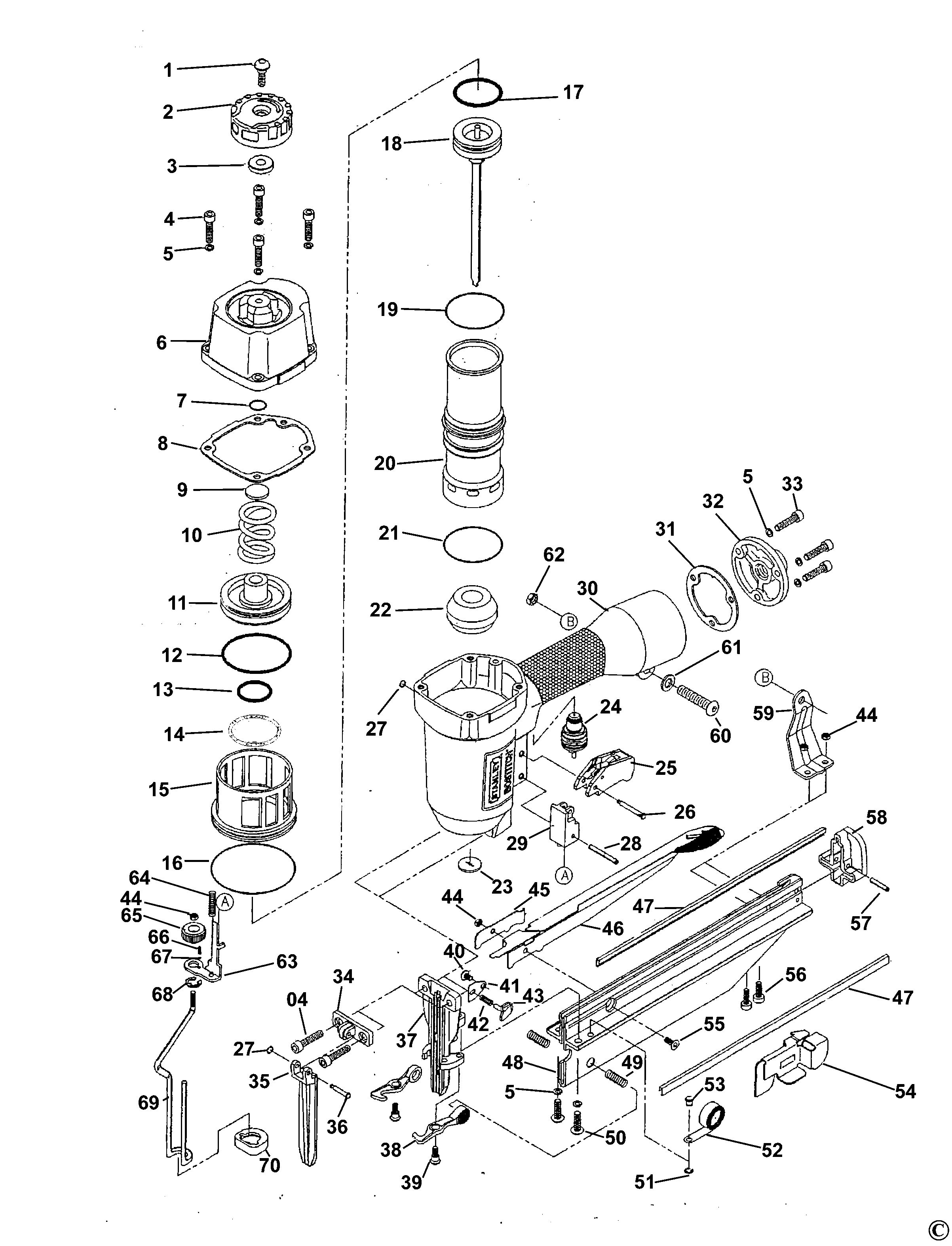

BOSTITCH FINISH NAILER 16 GAUGE (Type REV A)
SKU Produs: SB-1664FN /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | OA5131I1 | 1 | SHOULDER SCREW | 5,15 Lei | |
| 7 | 1FP0018 | 1 | O-RING | 5,15 Lei | |
| 8 | PA1151I1 | 1 | PACKING | 5,15 Lei | |
| 9 | 195037 | 1 | SEAL | 6,09 Lei | |
| 11 | PA1051W1 | 1 | HEAD VALVE PISTON | 99,86 Lei | |
| 12 | 1FZ0006 | 1 | O-RING | 5,15 Lei | |
| 13 | 1FP2025 | 1 | O-RING | 5,15 Lei | |
| 14 | 1FP2038 | 1 | O-RING | 5,15 Lei | |
| 15 | PA1091E1 | 1 | COLLAR | 6,09 Lei | |
| 16 | 9R199765 | 1 | O RING | 3,78 Lei | |
| 17 | 1FP0032 | 1 | O-RING | 5,15 Lei | |
| 19 | 1FA0130 | 1 | O-RING | 5,15 Lei | |
| 21 | 1FP0042 | 1 | O-RING | 5,15 Lei | |
| 22 | PA1111O1 | 1 | BUMPER | 34,65 Lei | |
| 25 | PB2081A1 | 1 | TRIGGER UNIT (ST) | 31,19 Lei | |
| 26 | JA2071W1 | 1 | STEPPED PIN | 5,15 Lei | |
| 27 | 174073 | 1 | O RING | 5,15 Lei | |
| 29 | PB5141E1 | 1 | SAFETY GUIDE | 5,15 Lei | |
| 30 | PA3301A1 | 1 | BODY | 99,86 Lei | |
| 31 | 9R207531 | 1 | SEAL | 3,78 Lei | |
| 32 | 9R207530 | 1 | END CAP | 16,49 Lei | |
| 33 | 9R199720 | 1 | SCREW | 4,31 Lei | |
| 37 | 9R209599 | 1 | NOSE | 90,6 Lei | |
| 44 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 52 | 180563 | 1 | SPRING, CONTACT FORCE | 5,15 Lei | |
| 56 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 57 | 1H03016 | 1 | SPRING PIN | 6,09 Lei | |
| 60 | 1L106201 | 1 | BUTTOM HD.SOC.SCREW | 5,15 Lei | |
| 61 | 1E10610 | 1 | FLAT WASHER | 5,15 Lei | |
| 62 | 1G106 | 1 | LOCK NUT | 5,15 Lei | |
| 64 | PB5092S1 | 1 | SPRING | 5,15 Lei | |
| 70 | P1640003932 | 1 | SAFETY PAD | 3,78 Lei |
