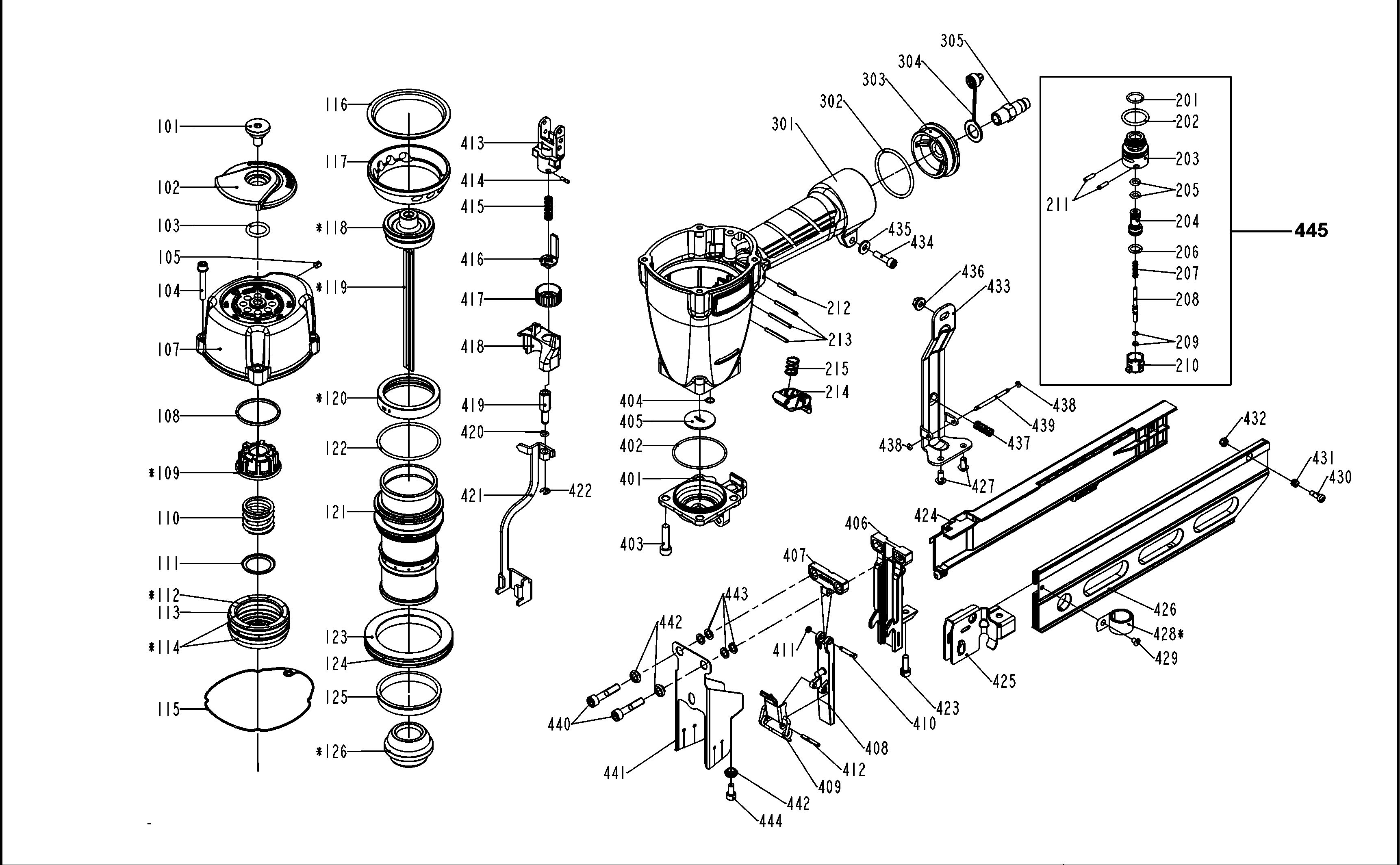

BOSTITCH STAPLER (Type 1)
SKU Produs: S5765-6-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 1136B-0374702 | 1 | PAD | 18,06 Lei | |
| 102 | 11371-0374704 | 1 | DEFLECTOR | 21,11 Lei | |
| 103 | 2041106-02010 | 1 | O RING | 3,78 Lei | |
| 104 | 2040100-03220 | 1 | BOLT | 5,15 Lei | |
| 105 | 2040104-03010 | 1 | HEX.SOC.HD.SCREW | 5,15 Lei | |
| 107 | 11369-0984301 | 1 | CAP | 317,1 Lei | |
| 108 | 11381-0950001 | 1 | WASHER SEAL | 12,5 Lei | |
| 109 | 11370-0950001 | 1 | BUMPER, TOP | 43,16 Lei | |
| 110 | 11360-1010001 | 1 | SPRING, HEAD VALVE | 10,5 Lei | |
| 111 | 11381-0950002 | 1 | WASHER | 5,15 Lei | |
| 112 | 2041108-05070 | 1 | O RING | 5,15 Lei | |
| 113 | 11368-1010001 | 1 | HD.VALVE PISTON | 107,73 Lei | |
| 114 | 2041104-06050 | 1 | O-RING | 5,15 Lei | |
| 115 | 1132M-1094701 | 1 | GASKET | 11,45 Lei | |
| 116 | 1136D-0984701 | 1 | RING | 21,11 Lei | |
| 117 | 1131E-0084701 | 1 | RING | 12,5 Lei | |
| 118 | 2041100-05062 | 1 | O RING | 21,11 Lei | |
| 119 | 11204-1174701 | 1 | DRIVER | 641,76 Lei | |
| 120 | 11399-1014701 | 1 | COLLAR | 21,11 Lei | |
| 121 | 11320-1050001 | 1 | CYLINDER | 248,33 Lei | |
| 122 | 2041109-06020 | 1 | O RING | 8,51 Lei | |
| 123 | 11321-0080006 | 1 | SPACER | 21,11 Lei | |
| 124 | 2041104-08010 | 1 | O RING | 6,09 Lei | |
| 125 | 11322-0764701 | 1 | RING | 8,51 Lei | |
| 126 | 11327-0764702 | 1 | BUMPER | 47,78 Lei | |
| 201 | 2041104-02020 | 1 | O-RING | 3,78 Lei | |
| 202 | 2041104-02030 | 1 | O-RING | 4,57 Lei | |
| 203 | 11374-0084701 | 1 | PLUNGER CAP | 12,5 Lei | |
| 204 | 1133S-0250001 | 1 | PLUNGER | 18,06 Lei | |
| 205 | 2041100-01070 | 1 | O-RING | 3,78 Lei | |
| 206 | 2041100-01030 | 1 | O-RING | 3,78 Lei | |
| 207 | 11376-0254701 | 1 | SPRING | 3,78 Lei | |
| 208 | 11375-0084701 | 1 | PLUNGER | 3,78 Lei | |
| 209 | 2041102-01030 | 1 | O-RING | 3,78 Lei | |
| 210 | 11373-0084701 | 1 | HEAD | 6,23 Lei | |
| 211 | 2040400-05060 | 1 | SPRING PIN | 3,78 Lei | |
| 212 | 2040400-05110 | 1 | PIN | 3,78 Lei | |
| 213 | 2040400-05160 | 1 | SPRING PIN | 3,78 Lei | |
| 214 | 11224-0764701 | 1 | TRIGGER | 43,16 Lei | |
| 215 | 11376-0370001 | 1 | SPRING | 3,78 Lei | |
| 301 | 11230-1098001 | 1 | BODY | 620,13 Lei | |
| 302 | 2041109-05050 | 1 | O RING | 3,78 Lei | |
| 303 | 11346-0084303 | 1 | END CAP | 28,14 Lei | |
| 304 | 1132L-0014701 | 1 | COVER | 4,31 Lei | |
| 305 | 9R196808 | 1 | PLUG | 21,11 Lei | |
| 401 | 11326-0984701 | 1 | BASE | 263,03 Lei | |
| 402 | 2041104-05020 | 1 | O RING | 6,09 Lei | |
| 403 | 2040101-04090 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 404 | 2041109-01060 | 1 | O RING | 3,78 Lei | |
| 405 | 11388-1174701 | 1 | GUIDE | 6,09 Lei | |
| 406 | 11303-1174701 | 1 | GUIDE | 317,1 Lei | |
| 407 | 11353-1174701 | 1 | COVER | 79,8 Lei | |
| 408 | 11352-1174701 | 1 | COVER | 130,52 Lei | |
| 409 | 11244-0074701 | 1 | HANDLE | 43,16 Lei | |
| 410 | 1130U-0254701 | 1 | PLUG | 18,06 Lei | |
| 411 | 1135H-0790001 | 1 | RETAINER | 3,78 Lei | |
| 412 | 2040401-05110 | 1 | SPIROL PIN | 3,78 Lei | |
| 413 | 11338-0764701 | 1 | GUIDE | 11,45 Lei | |
| 414 | 2040400-04050 | 1 | PIN | 3,78 Lei | |
| 415 | 11337-0084701 | 1 | SPRING COMPRESSION | 3,78 Lei | |
| 416 | 11332-0794705 | 1 | ACTUATOR | 28,14 Lei | |
| 417 | 11393-0761101 | 1 | WHEEL ADJUSTER | 5,15 Lei | |
| 418 | 1137A-0764701 | 1 | COVER | 10,5 Lei | |
| 419 | 11393-0764701 | 1 | ROD | 28,14 Lei | |
| 420 | 2041102-01050 | 1 | O RING | 3,78 Lei | |
| 421 | 11330-1174701 | 1 | BRACKET | 73,19 Lei | |
| 422 | 2040302-24010 | 1 | RING | 3,78 Lei | |
| 423 | 9R189943 | 1 | BOLT | 6,09 Lei | |
| 424 | 11348-1174701 | 1 | BRACKET | 43,16 Lei | |
| 425 | 11363-1174701 | 1 | PUSHER | 43,16 Lei | |
| 426 | 11389-1174701 | 1 | MAGAZINE | 263,03 Lei | |
| 427 | 2040102-03020 | 1 | BOLT | 4,31 Lei | |
| 428 | 11372-0980001 | 1 | SPRING | 34,65 Lei | |
| 429 | 1131H-0074701 | 1 | SCREW | 14,07 Lei | |
| 430 | 11310-0074703 | 1 | LATCH | 18,06 Lei | |
| 431 | 11311-0074701 | 1 | LATCH SPRING | 3,78 Lei | |
| 432 | 2040500-02020 | 1 | NUT | 3,78 Lei | |
| 433 | 11323-1174701 | 1 | BRACKET | 79,8 Lei | |
| 434 | 2040101-03100 | 1 | BOLT | 3,78 Lei | |
| 435 | 2040202-03010 | 1 | WASHER | 4,31 Lei | |
| 436 | 2040501-03040 | 1 | BOLT CAP | 5,15 Lei | |
| 437 | 9R189946 | 1 | SPRING | 4,31 Lei | |
| 439 | 9R189948 | 1 | PIN | 10,5 Lei | |
| 440 | 9R196815 | 1 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 441 | 11383-2000001 | 1 | PROTECTOR | 28,14 Lei | |
| 442 | 113BF-0074701 | 1 | RING | 12,5 Lei | |
| 443 | 2040201-04080 | 1 | WASHER | 3,78 Lei | |
| 444 | 2040101-03040 | 1 | BOLT | 3,78 Lei | |
| 445 | 11226-0080001-2 | 1 | VALVE KIT | 43,16 Lei |
