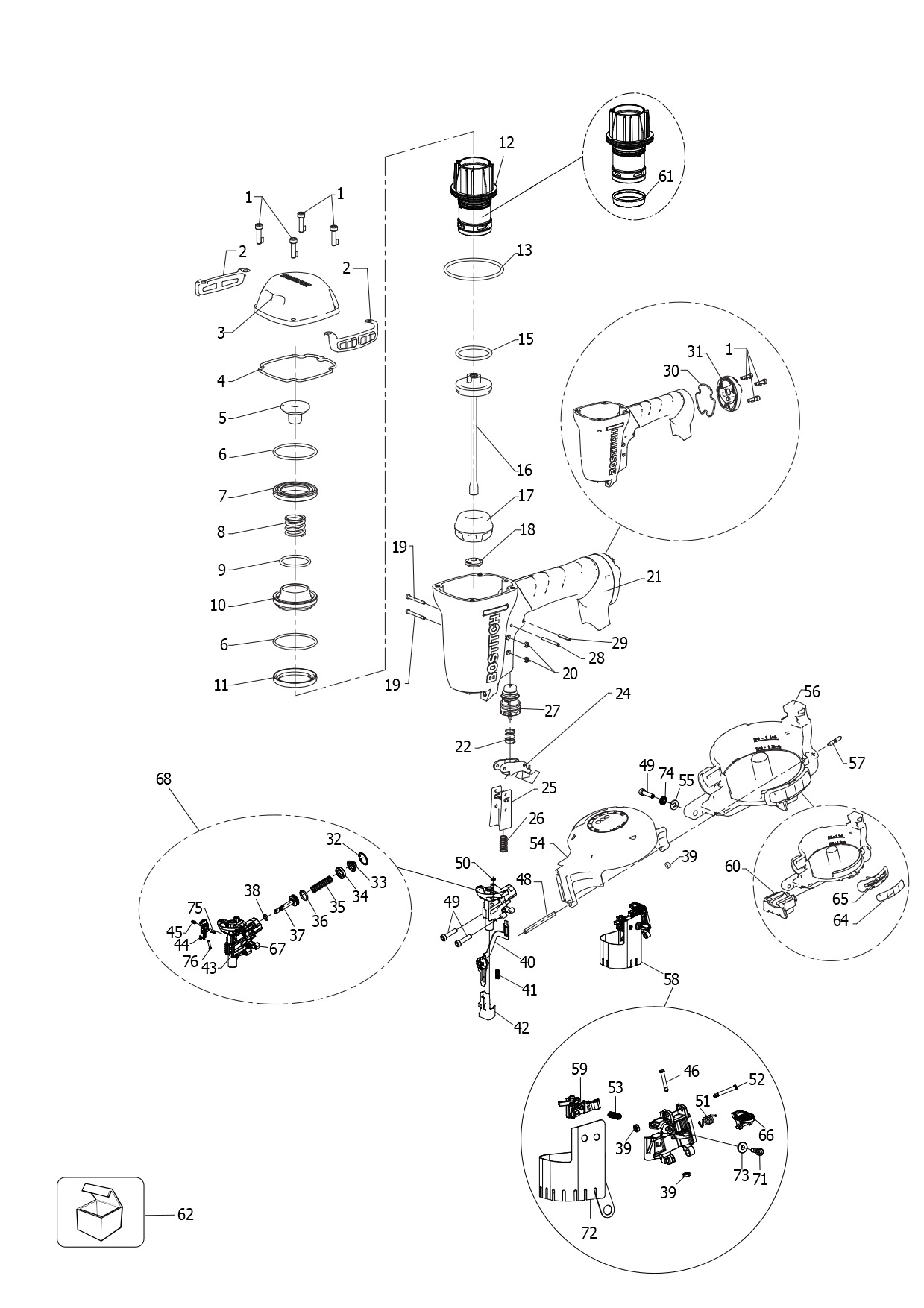

BOSTITCH ROOFING NAILER (Type 1)
SKU Produs: RN46K-2-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 149845 | 1 | ASSY, WEAR PLATE | 5,15 Lei | |
| 3 | 149808 | 1 | CAP, MACHINING | 99,86 Lei | |
| 4 | 149832 | 1 | SEAL, FRAME/CAP | 5,15 Lei | |
| 5 | 149838 | 1 | BUMPER, HEAD VALVE | 5,15 Lei | |
| 6 | 149828 | 1 | O-RING 1.925X.103XNBR | 5,15 Lei | |
| 7 | 149836 | 1 | UPPER BODY, HEAD VALVE | 5,15 Lei | |
| 8 | 149806 | 1 | SPRING, HEAD VALVE | 5,15 Lei | |
| 9 | 149842 | 1 | O-RING 1.299X.103XNBR | 5,15 Lei | |
| 10 | 149839 | 1 | LOWER BODY, HEAD VALVE | 6,09 Lei | |
| 11 | 149840 | 1 | SEAL, SLEEVE | 5,15 Lei | |
| 12 | 9R217792 | 1 | SLEEVE SA | 31,19 Lei | |
| 13 | 850766 | 1 | O-RING,2.609X.139 (KN85) | 7,14 Lei | |
| 15 | 850607 | 1 | O-RING,1.484X.139 | 6,09 Lei | |
| 16 | 149826 | 1 | ASSY PISTON/DRIVER | 288,54 Lei | |
| 17 | 191777 | 1 | BUMPER | 25,52 Lei | |
| 18 | 149820 | 1 | GUIDE, DRIVER | 5,15 Lei | |
| 19 | 105811 | 1 | SCREW,TRIGGER PIVOT | 5,15 Lei | |
| 20 | MHE3050-100 | 1 | NUT,ESN,M3X0.5 | 5,15 Lei | |
| 21 | 9R202298 | 1 | HOUSING SA | 208,74 Lei | |
| 22 | 100387 | 1 | SPRING | 5,15 Lei | |
| 24 | 107582 | 1 | ASSEMBLY,S.T.TRIGGER | 5,15 Lei | |
| 25 | 107522 | 1 | GUIDE,TRIP | 12,5 Lei | |
| 26 | 149871 | 1 | SPRING, CONTACT ARM | 5,15 Lei | |
| 27 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 28 | 100298 | 1 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 29 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 30 | 149816 | 1 | SEAL, END CAP | 5,15 Lei | |
| 31 | 149817 | 1 | CAP, END | 34,65 Lei | |
| 32 | 149854 | 1 | RETAINING RING, INCH | 5,15 Lei | |
| 33 | 149853 | 1 | COLLAR, SPRING | 5,15 Lei | |
| 34 | 149855 | 1 | STOP, FEED PISTON | 5,15 Lei | |
| 35 | 149887 | 1 | SPRING C78, FEED PISTON | 5,15 Lei | |
| 36 | 88998 | 1 | O-RING,.674X.103 | 10,5 Lei | |
| 37 | 9R210352 | 1 | FEED PISTON | 70,39 Lei | |
| 38 | 149883 | 1 | O-RING .299X.103 NBR | 5,15 Lei | |
| 39 | N12112 | 1 | PIN, RETAINER | 5,15 Lei | |
| 40 | 149899 | 1 | ASSEMBLY, TRIP | 79,8 Lei | |
| 41 | 149874 | 1 | SPRING, DEPTH ADJUST CAM | 5,15 Lei | |
| 42 | 149900 | 1 | ASSEMBLY, CONTACT ARM FOOT | 88,41 Lei | |
| 43 | 9R217778 | 1 | NOSE ASSEMBLY | 438,59 Lei | |
| 44 | 9R205576 | 1 | PAWL | 47,78 Lei | |
| 45 | 149859 | 1 | SPRING, FEED PAWL | 5,15 Lei | |
| 46 | 149882 | 1 | PIN, CHECK PAWL | 5,15 Lei | |
| 48 | 149905 | 1 | PIN, DOOR/COVER | 5,15 Lei | |
| 49 | MSC6100-30 | 1 | SCREW,SHCS,M6X1.00X30 | 5,15 Lei | |
| 50 | 149885 | 1 | O-RING .145X.070 CP | 5,15 Lei | |
| 51 | 9R205484 | 1 | SPRING TORSION | 4,57 Lei | |
| 52 | 149886 | 1 | PIN,DOOR LATCH | 5,15 Lei | |
| 53 | 149898 | 1 | APS ORDER ONLY (SPRING, CHECK PAWL) | 5,15 Lei | |
| 54 | 149943 | 1 | ASSY COVER/CANISTER | 21,11 Lei | |
| 55 | MPW6.2 | 1 | WASHER.SPECIAL | 5,15 Lei | |
| 56 | 149939 | 1 | ASSEMBLY, CANISTER | 166,11 Lei | |
| 57 | 149907 | 1 | PIN, COVER/CANISTER | 5,15 Lei | |
| 59 | 160142 | 1 | PAWL,CHECK | 58,17 Lei | |
| 60 | 149940 | 1 | ASSY, SHINGLE GUIDE | 21,11 Lei | |
| 61 | 9R217687 | 1 | CHECK SEAL | 6,09 Lei | |
| 62 | RN46-RK | 1 | REPAIR KIT RN46 | 88,41 Lei | |
| 64 | 149866 | 1 | WEAR PAD, CANISTER | 5,15 Lei | |
| 65 | 161236 | 1 | GUARD,CANISTER | 5,15 Lei | |
| 66 | 149861 | 1 | LATCH | 34,65 Lei | |
| 67 | MHE6100-100 | 1 | NUT,ESN M6X1 | 5,15 Lei | |
| 68 | 9R217778 | 1 | NOSE ASSEMBLY | 438,59 Lei | |
| 71 | S0110412101 | 1 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 72 | 9R217653 | 1 | SHIELD | 11,45 Lei | |
| 73 | 9R217656 | 1 | COLLAR | 3,78 Lei | |
| 74 | 9R217711 | 1 | COLLAR | 11,45 Lei | |
| 75 | MPG030010 | 1 | ROLL PIN | 3,78 Lei | |
| 76 | 9R210179 | 1 | CHECK PAWL PIN | 13,85 Lei |
