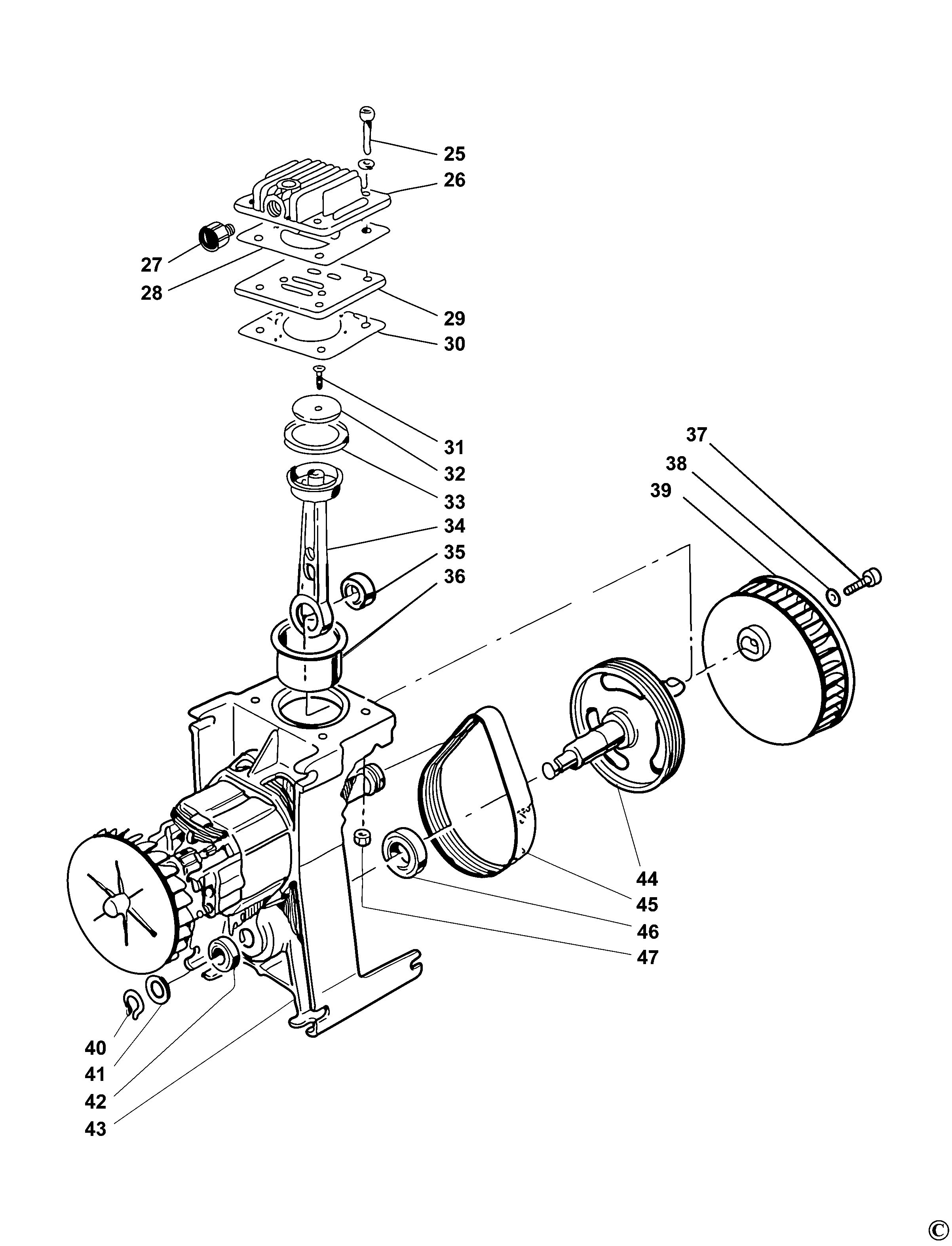

BOSTITCH COMPRESSOR (Type REV A)
SKU Produs: RC-10 /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 9416089055 | 1 | CONTROL PANEL R.CAGE 10 9005B | 263,03 Lei | |
| 3 | 9043216 | 1 | PIPE | 58,17 Lei | |
| 5 | 9064185 | 1 | SWITCH LUM.V220 C/PROT.PULS | 16,49 Lei | |
| 6 | 9065853 | 1 | CORDSET | 119,91 Lei | |
| 9 | P020382 | 1 | VALVE | 130,35 Lei | |
| 10 | D073041 | 1 | CONNECTOR | 47,78 Lei | |
| 12 | 9414249 | 1 | CONNECTOR | 47,78 Lei | |
| 13 | 9043238 | 1 | PIPE | 66,15 Lei | |
| 14 | C70000B | 1 | PUMP SA | 1,61 Lei | |
| 15 | 9417755 | 1 | PIPE | 34,65 Lei | |
| 16 | 9052070 | 1 | GAUGE 63 1/4 S 0-16 RAD 10B SX (left) | 58,17 Lei | |
| 17 | 9051513 | 1 | PRESS.RED.MANIFOLD 10-20L(RED) | 186,17 Lei | |
| 18 | 9047071 | 1 | COUPLING | 79,8 Lei | |
| 19 | 9052069 | 1 | GAUGE 63 1/4 S 0-16 RAD 10B DX (right) | 58,17 Lei | |
| 21 | 9063202 | 1 | PRESS.SW.MINI 8-10BARS CE | 66,15 Lei | |
| 24 | AB-9038197 | 4 | RUBBER FOOT | 5,15 Lei | |
| 25 | 9411228 | 4 | SCREW | 11,45 Lei | |
| 27 | AB-9412016 | 4 | WASHER 8X24X2 | 6,09 Lei | |
| 46 | 9415531 | 1 | BEARING | 66,15 Lei | |
| 47 | 9122453 | 1 | NUT M6 | 11,45 Lei | |
| 52 | 9069291 | 1 | FOOT | 30,1 Lei |
