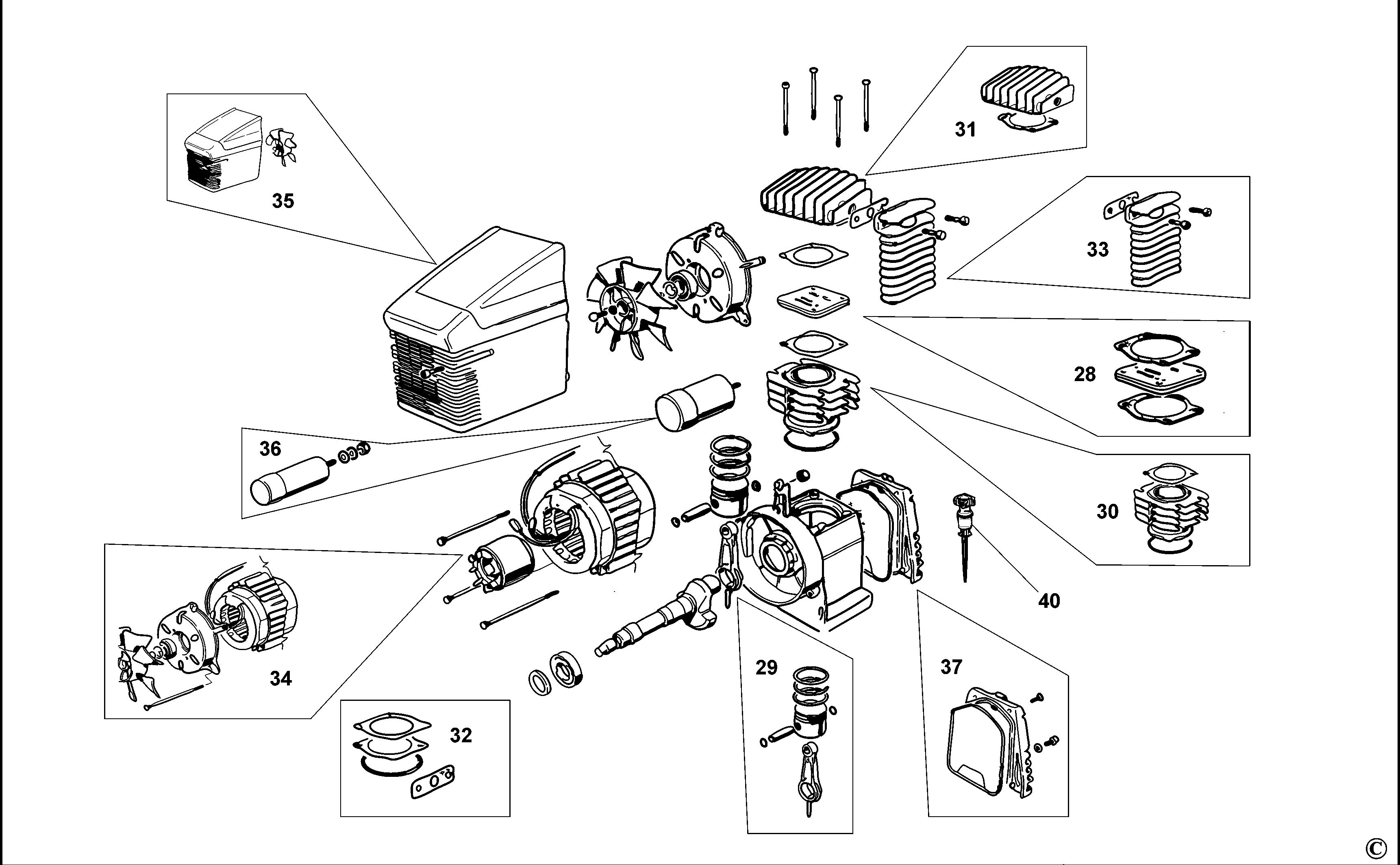

BOSTITCH COMPRESSOR (Type REV A)
SKU Produs: PS20 /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 8 | 9416452 | 1 | LOCK HANDLE | 73,19 Lei | |
| 10 | 9052070 | 1 | GAUGE 63 1/4 S 0-16 RAD 10B SX (left) | 58,17 Lei | |
| 12 | 9417755 | 1 | PIPE | 34,65 Lei | |
| 13 | P020382 | 1 | VALVE | 130,35 Lei | |
| 14 | 9412071 | 1 | SWITCH CUT OUT SA | 139,97 Lei | |
| 16 | 9052069 | 1 | GAUGE 63 1/4 S 0-16 RAD 10B DX (right) | 58,17 Lei | |
| 17 | 9047071 | 2 | COUPLING | 79,8 Lei | |
| 18 | 9051513 | 1 | PRESS.RED.MANIFOLD 10-20L(RED) | 186,17 Lei | |
| 23 | 9414076 | 2 | SPACER | 18,06 Lei | |
| 24 | AB-9038197 | 2 | RUBBER FOOT | 5,15 Lei | |
| 28 | 9434A44 | 1 | VALVE | 107,73 Lei | |
| 28 | 9434A45 | 1 | VALVE | 161,18 Lei | |
| 29 | 9434B46 | 1 | CON ROD SA | 176,19 Lei | |
| 32 | 9434F45 | 1 | GASKET SET | 73,19 Lei | |
| 38 | 9122333 | 1 | NUT M8 | 6,09 Lei | |
| 39 | 9038176 | 1 | DAMPER | 58,17 Lei |
