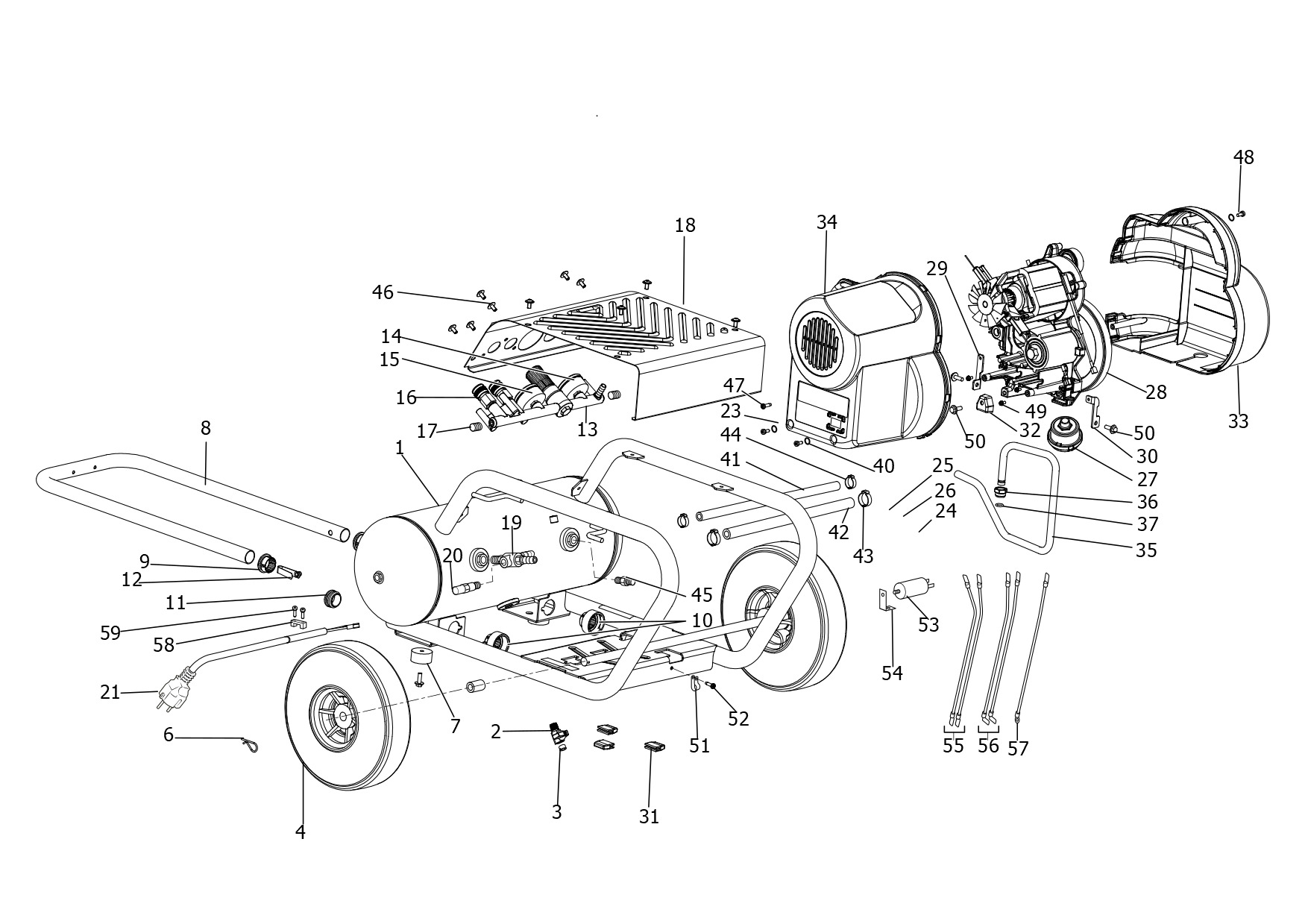

BOSTITCH COMPRESSOR (Type 1)
SKU Produs: PS17-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 9413579112 | 1 | TANK | 2561,46 Lei | |
| 2 | AB-9047091 | 1 | BALL VALVE | 34,65 Lei | |
| 3 | 9038905 | 1 | O RING | 7,5 Lei | |
| 4 | AB-9042104 | 2 | WHEEL | 198,66 Lei | |
| 6 | 4105855 | 2 | CLEVIS PIN | 98,8 Lei | |
| 7 | B-SST108 | 2 | BUMPER | 25,54 Lei | |
| 9 | A16379 | 1 | INSERT | 6,09 Lei | |
| 10 | A16392 | 1 | INSERT | 10,5 Lei | |
| 12 | B-D26863 | 2 | BUTTON | 7,37 Lei | |
| 13 | AB-9051300 | 1 | REGULATOR | 589,89 Lei | |
| 14 | 9052272 | 1 | GAUGE | 88,55 Lei | |
| 15 | 9052273 | 1 | GAUGE | 88,55 Lei | |
| 16 | 9047068 | 2 | COUPLING | 79,8 Lei | |
| 17 | 9054020 | 2 | PLUG | 12,71 Lei | |
| 19 | N098563 | 1 | FITTING | 43,16 Lei | |
| 20 | 9049519 | 1 | VALVE | 148,5 Lei | |
| 21 | 9065472 | 1 | CORDSET | 225,26 Lei | |
| 23 | 9064185 | 1 | SWITCH LUM.V220 C/PROT.PULS | 16,49 Lei | |
| 24 | 9063306 | 1 | SWITCH | 117,9 Lei | |
| 25 | N105826 | 1 | BRACKET | 25,54 Lei | |
| 27 | N013711 | 1 | FILTER | 25,52 Lei | |
| 28 | 9417856 | 1 | PUMP SA | 3081,7 Lei | |
| 29 | N056703 | 1 | BRACKET | 14,07 Lei | |
| 31 | B-AC0716 | 3 | INSULATOR | 4,31 Lei | |
| 32 | B-ACG18 | 1 | MOUNT | 14,07 Lei | |
| 33 | B-A15533 | 1 | SHROUD | 130,52 Lei | |
| 36 | B-AC0780 | 1 | NUT | 16,49 Lei | |
| 37 | B-AC0781 | 1 | O RING | 4,31 Lei | |
| 40 | B-SSG3102 | 3 | O RING | 6,09 Lei | |
| 41 | 9270052 | 1 | HOSE | 79,8 Lei | |
| 42 | 9270051 | 1 | HOSE | 157,92 Lei | |
| 43 | B-A20009 | 2 | CLAMP | 10,5 Lei | |
| 44 | B-CAC12061 | 2 | CLAMP | 10,5 Lei | |
| 45 | 9048134 | 1 | VALVE | 150,05 Lei | |
| 46 | B-D28104 | 10 | SCREW | 6,09 Lei | |
| 47 | B-D29132 | 1 | SCREW | 6,09 Lei | |
| 48 | B-SSF5531 | 3 | SCREW | 6,09 Lei | |
| 49 | B-SUDL91 | 5 | SCREW | 6,09 Lei | |
| 50 | B-91895680 | 5 | SCREW | 6,09 Lei | |
| 51 | 9064905 | 1 | CABLE CLAMP | 6,09 Lei | |
| 53 | 9064944 | 1 | FILTER | 107,73 Lei | |
| 54 | 9083624 | 1 | BRACKET | 12,5 Lei | |
| 55 | 9065439 | 2 | CABLE | 21,11 Lei | |
| 56 | 9065430 | 2 | CABLE | 21,11 Lei | |
| 57 | 9065452 | 1 | CABLE | 21,11 Lei | |
| 58 | 9064821 | 1 | CABLE CLAMP | 12,5 Lei |
