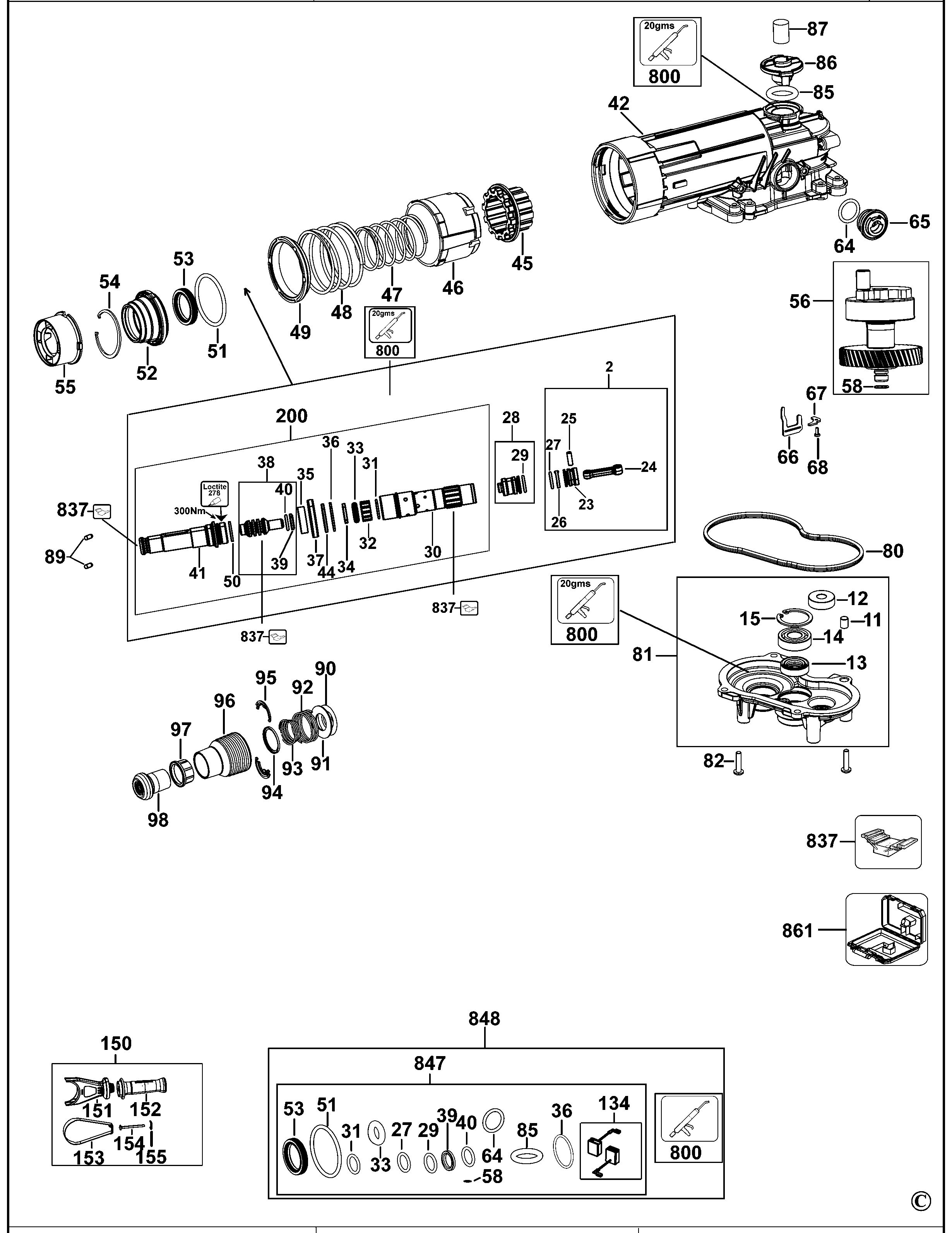

CHIPPING HAMMER
SKU Produs: D25810 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N491963 | 1 | ARMATURE 230V | 264,01 Lei | |
| 2 | N492871 | 1 | PISTON SA | 80,04 Lei | |
| 8 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 9 | N466979 | 1 | MAGNET | 21,85 Lei | |
| 11 | 327575-00 | 1 | SLEEVE | 5,21 Lei | |
| 12 | N110358 | 1 | BEARING | 17,02 Lei | |
| 13 | N495599 | 1 | SEAL | 17,02 Lei | |
| 14 | 577745-01 | 1 | BEARING, BALL 6001 | 30,87 Lei | |
| 15 | 488147-01 | 1 | CIRCLIP, INTERNAL 28MM | 4,57 Lei | |
| 23 | N444288 | 1 | PISTON | 41,93 Lei | |
| 24 | N922659 | 1 | CON ROD | 8,64 Lei | |
| 25 | N446699 | 1 | PIN | 6,23 Lei | |
| 26 | N922676 | 1 | PISTON RING | 4,57 Lei | |
| 27 | N446544 | 1 | O RING | 19,95 Lei | |
| 28 | N492863 | 1 | RAM SA | 70,39 Lei | |
| 29 | N446544 | 1 | O RING | 19,95 Lei | |
| 30 | N567968 | 1 | SPINDLE SA | 570,96 Lei | |
| 31 | N474624 | 1 | O RING | 10,29 Lei | |
| 32 | N922656 | 1 | BUSH | 7,37 Lei | |
| 33 | N460601 | 1 | DAMPER | 17,02 Lei | |
| 34 | N462095 | 1 | WASHER | 19,95 Lei | |
| 35 | N539518 | 1 | SPACER | 12,71 Lei | |
| 36 | N559339 | 2 | WASHER | 25,54 Lei | |
| 37 | N526259 | 1 | BEARING | 52,22 Lei | |
| 38 | N492872 | 1 | BEAT PIECE | 157,92 Lei | |
| 39 | N244259 | 1 | BEATPIECE NMSH SEALING | 30,87 Lei | |
| 40 | N487314 | 1 | O RING | 13,85 Lei | |
| 41 | N567968 | 1 | SPINDLE SA | 570,96 Lei | |
| 42 | N506091 | 1 | HOUSING SA | 276,84 Lei | |
| 44 | N559339 | 1 | WASHER | 25,54 Lei | |
| 45 | N445599 | 1 | SLEEVE | 34,05 Lei | |
| 46 | N433094 | 1 | SLEEVE | 15,12 Lei | |
| 47 | N437808 | 1 | SPRING | 5,21 Lei | |
| 48 | N437814 | 1 | SPRING | 7,37 Lei | |
| 49 | N460603 | 1 | SUPPORT | 5,21 Lei | |
| 50 | N539527 | 1 | RETAINER | 4,57 Lei | |
| 51 | N432556 | 1 | O RING | 17,02 Lei | |
| 52 | N526257 | 1 | SLEEVE | 7,37 Lei | |
| 53 | N446361 | 2 | O RING | 12,71 Lei | |
| 54 | N532870 | 1 | CIRCLIP | 5,21 Lei | |
| 55 | N464914 | 1 | CAP | 8,64 Lei | |
| 56 | N492873 | 1 | CRANKSHAFT | 145,09 Lei | |
| 58 | 323711-26 | 1 | O RING, 5X1.2 | 4,57 Lei | |
| 64 | N553858 | 1 | O RING | 4,57 Lei | |
| 65 | N435997 | 1 | ECCENTRIC | 7,37 Lei | |
| 66 | N422798 | 1 | PLATE | 7,37 Lei | |
| 67 | N422797 | 1 | PLATE | 5,21 Lei | |
| 68 | N445171 | 1 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 71 | N435623 | 1 | BAFFLE FAN | 8,64 Lei | |
| 76 | N433780 | 1 | HOUSING MOTOR | 80,04 Lei | |
| 77 | N449094 | 1 | COVER BEARING | 4,57 Lei | |
| 78 | N492847 | 1 | FIELD 230V | 145,09 Lei | |
| 80 | N422796 | 1 | GASKET | 7,37 Lei | |
| 81 | N492875 | 1 | GEARCASE SA | 130,35 Lei | |
| 82 | 324007-11 | 8 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 83 | N444425 | 2 | BRUSH SPRING | 4,57 Lei | |
| 84 | N448156 | 1 | COIL | 52,22 Lei | |
| 85 | N504436 | 1 | O RING | 4,57 Lei | |
| 86 | N452721 | 1 | CAP | 7,37 Lei | |
| 87 | N395554 | 1 | FELT 4KG | 6,23 Lei | |
| 89 | 325878-00 | 2 | ROLLER, 8 X 20 | 8,64 Lei | |
| 90 | N038151 | 1 | FELT 31X52 | 7,37 Lei | |
| 91 | N465749 | 1 | WASHER | 7,37 Lei | |
| 92 | 323395-06 | 1 | SPRING.CPRSN 2.2/47 | 4,57 Lei | |
| 93 | 487118-00 | 1 | SPRING, CONICAL | 7,37 Lei | |
| 94 | N464690 | 1 | GUIDE | 4,57 Lei | |
| 95 | N468172 | 2 | LOCKING PIN | 6,23 Lei | |
| 96 | N464913 | 1 | SLEEVE | 41,93 Lei | |
| 97 | 326575-01 | 1 | SLEEVE, SDS, YELLOW (SUBC) | 21,85 Lei | |
| 98 | N465586 | 1 | LIP SEAL | 52,22 Lei | |
| 99 | N429783 | 1 | COVER | 30,87 Lei | |
| 104 | N463364 | 1 | SIDE RH | 7,37 Lei | |
| 105 | N878130 | 1 | SIDE LH | 13,85 Lei | |
| 106 | N445171 | 3 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 107 | N464282 | 1 | SA MODE CHANGE KNOB 5KG | 13,85 Lei | |
| 108 | 330065-08 | 14 | SCREW M4X18 | 4,57 Lei | |
| 109 | N452043 | 1 | BELLOWS | 7,37 Lei | |
| 110 | N452385 | 1 | SET OF LEAD WIRES | 80,04 Lei | |
| 111 | N452042 | 1 | BELLOWS | 10,29 Lei | |
| 112 | N152623 | 1 | LIMIT STOP | 25,54 Lei | |
| 113 | N492860 | 1 | CLAMSHELL SET | 70,39 Lei | |
| 114 | 1005752-00 | 1 | CORDSET (EURO) | 57,81 Lei | |
| 115 | N870797 | 1 | SWITCH | 57,81 Lei | |
| 116 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 118 | 488065-01 | 1 | TRIGGER TOGGLE (MOULD) | 10,29 Lei | |
| 119 | N159443 | 1 | AXIS | 6,23 Lei | |
| 120 | N106188 | 1 | SPRING, AV 4KG HANDLE | 6,23 Lei | |
| 121 | 323091-01 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 123 | 324007-11 | 2 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 125 | N438602 | 1 | END CAP | 34,05 Lei | |
| 126 | N438601 | 1 | CLAMSHELL | 41,93 Lei | |
| 127 | N492877 | 1 | CONTROL MODULE SA | 157,92 Lei | |
| 128 | N449848 | 1 | BRACKET | 4,57 Lei | |
| 129 | N371839 | 2 | SCREW, PLSTC THD FORM, M4X22 T20 | 4,57 Lei | |
| 130 | N450546 | 1 | LEAD SA | 15,12 Lei | |
| 132 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 133 | 330065-10 | 2 | SCREW, PLASTIC 4X55 | 4,57 Lei | |
| 134 | N492849 | 1 | BRUSH PAIR 230V | 34,05 Lei | |
| 135 | N450097 | 2 | BRUSHBOX SA | 7,37 Lei | |
| 136 | N086775 | 5 | SCREW | 4,57 Lei | |
| 150 | N466680 | 1 | HANDLE SIDE SA | 127,2 Lei | |
| 151 | N466673 | 1 | CLAMP | 25,54 Lei | |
| 152 | N533870 | 1 | HANDLE SA | 57,81 Lei | |
| 153 | N466679 | 1 | CLAMP | 34,05 Lei | |
| 154 | N466678 | 1 | MUSHROOM HEAD BOLT M6x75 ISO 8677 | 6,23 Lei | |
| 155 | N466677 | 1 | CLAMP WASHER 15mm | 4,57 Lei | |
| 160 | N196274 | 1 | LABEL | 4,57 Lei | |
| 200 | N687564 | 1 | SPINDLE SA | 570,96 Lei | |
| 800 | 578970-04 | 1 | GLK FLUID 249 PLUS NLGI 00 | 127,2 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 821 | NA130659 | 1 | RATING LABEL | 4,57 Lei | |
| 837 | 1003961-99 | 1 | S.T.SUPPORT PLATE | 400,84 Lei | |
| 837 | 1003962-99 | 1 | S.T.DIS-ASSEMBLY JIG | 305,3 Lei | |
| 837 | 1003963-99 | 1 | S.T.DIS-ASSEMBLY JIG | 145,6 Lei | |
| 837 | 1003964-99 | 1 | S.T.SEAL FITTING TOOL | 154,11 Lei | |
| 837 | 1003965-99 | 1 | S.T.SEAL FITTING TOOL | 96,3 Lei | |
| 837 | 1003966-99 | 1 | S.T.LIP SEAL REMOVER | 162,24 Lei | |
| 847 | N513646 | 1 | SERVICE KIT 230V | 181,55 Lei | |
| 848 | 1004727-68 | 1 | SERVICE KIT 230V | 331,47 Lei | |
| 861 | N469730 | 1 | KITBOX | 240,38 Lei |
