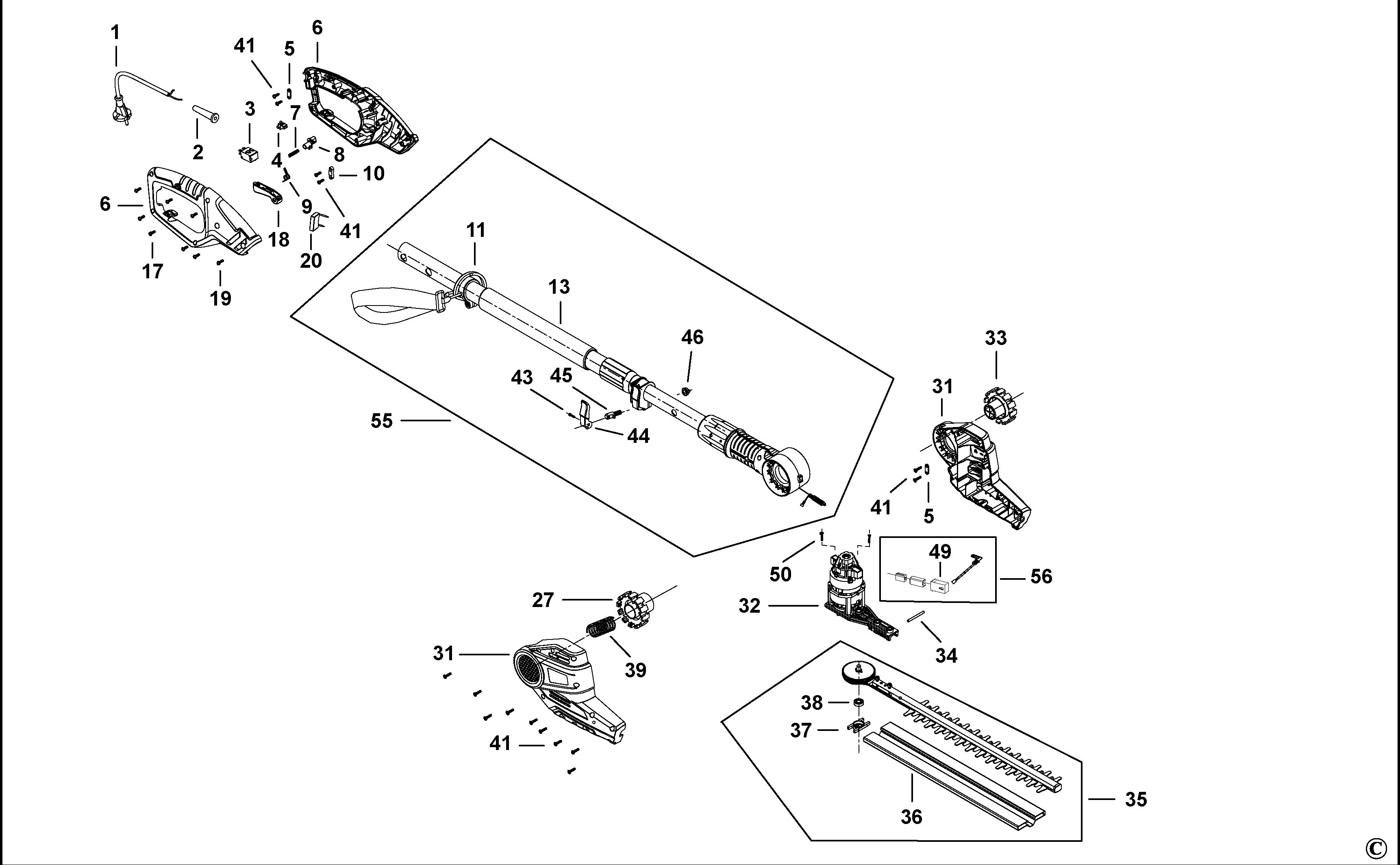

BLACK+DECKER HEDGE TRIMMER (Type 1)
SKU Produs: PH5551 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004706-85 | 1 | CORDSET | 17,02 Lei | |
| 2 | 1004706-86 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 3 | 1004706-87 | 1 | SWITCH | 30,87 Lei | |
| 4 | 1004706-88 | 1 | CONNECTOR | 4,57 Lei | |
| 5 | 1004706-89 | 1 | CABLE CLAMP | 4,57 Lei | |
| 6 | 1004730-46 | 1 | CLAMSHELL PAIR | 52,22 Lei | |
| 7 | 1004697-57 | 1 | SPRING | 4,57 Lei | |
| 8 | 1004697-58 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 9 | 1004697-59 | 1 | SPRING | 4,57 Lei | |
| 10 | 1004706-94 | 1 | CABLE CLAMP | 4,57 Lei | |
| 11 | 1004697-63 | 1 | STRAP | 57,81 Lei | |
| 13 | 1004707-01 | 1 | SLEEVE | 12,71 Lei | |
| 17 | 1004707-03 | 1 | SCREW | 4,57 Lei | |
| 18 | 1004697-60 | 1 | TRIGGER | 6,23 Lei | |
| 19 | 1004707-05 | 2 | SCREW | 4,57 Lei | |
| 20 | 1004707-98 | 1 | CAPACITOR | 6,23 Lei | |
| 27 | 1004707-08 | 1 | ADJUSTER PLATE | 13,85 Lei | |
| 31 | 1004707-10 | 1 | CLAMSHELL SET | 57,81 Lei | |
| 32 | 1004707-11 | 1 | MOTOR SA | 300,47 Lei | |
| 33 | 1004707-19 | 1 | ADJUSTER PLATE | 17,02 Lei | |
| 34 | 1004707-20 | 1 | PIN | 4,57 Lei | |
| 35 | 1004707-21 | 1 | BLADE SA | 361,33 Lei | |
| 36 | 1004707-22 | 1 | COVER | 19,95 Lei | |
| 37 | 1004707-23 | 1 | RETAINER | 4,57 Lei | |
| 38 | 1004707-24 | 1 | BEARING | 12,71 Lei | |
| 39 | 1004707-25 | 1 | SPRING | 4,57 Lei | |
| 41 | 1004707-27 | 30 | SCREW | 4,57 Lei | |
| 43 | 1004707-41 | 1 | PIN | 4,57 Lei | |
| 44 | 1004707-42 | 1 | LEVER | 4,57 Lei | |
| 45 | 1004707-43 | 1 | BOLT | 5,21 Lei | |
| 46 | 1004707-44 | 1 | NUT | 4,57 Lei | |
| 49 | 1004707-14 | 1 | BRUSHBOX | 4,57 Lei | |
| 50 | 1004707-12 | 2 | SCREW | 4,57 Lei | |
| 55 | 1004707-45 | 1 | POLE PIECE SA | 361,33 Lei | |
| 56 | 1004708-06 | 1 | BRUSH SA | 52,22 Lei |
