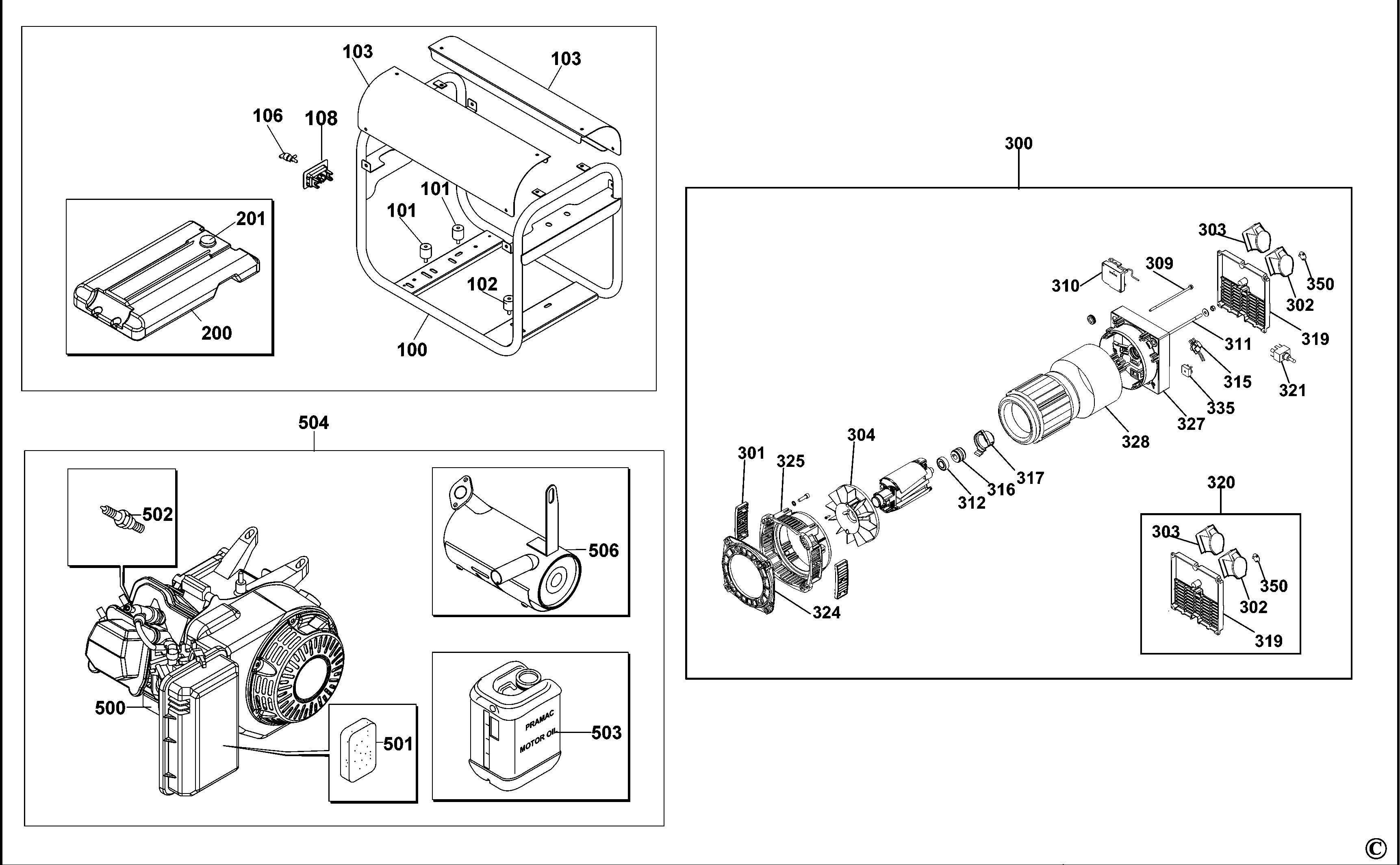

DEWALT PETROL GENERATOR (Type 1)
SKU Produs: PE292SHI015 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 100 | 1004714-73 | 1 | FRAME | 2055,16 Lei | |
| 101 | 1004714-30 | 1 | BLOCK | 25,54 Lei | |
| 101 | 1004714-31 | 1 | SOCKET SA | 80,04 Lei | |
| 102 | 1004714-30 | 1 | BLOCK | 25,54 Lei | |
| 102 | 1004714-31 | 1 | SOCKET SA | 80,04 Lei | |
| 103 | 1004714-72 | 1 | COVER-TOP | 276,84 Lei | |
| 106 | 1004714-35 | 1 | VALVE | 30,87 Lei | |
| 108 | 1004714-71 | 1 | HOLDER | 20,4 Lei | |
| 200 | 1004714-37 | 1 | FUEL TANK | 195,02 Lei | |
| 200 | 1004714-38 | 1 | DIODE | 52,22 Lei | |
| 200 | 1004714-39 | 1 | CAPACITOR | 80,04 Lei | |
| 201 | 1004714-34 | 1 | FUEL CAP | 88,55 Lei | |
| 300 | 1004718-20 | 1 | ALTERNATOR | 3612,67 Lei | |
| 301 | 1004714-49 | 1 | GRILLE | 31,6 Lei | |
| 302 | 1004718-00 | 1 | SOCKET | 173,3 Lei | |
| 303 | 1004717-99 | 1 | SOCKET | 169,36 Lei | |
| 304 | 1004714-53 | 1 | FAN | 57,81 Lei | |
| 304 | 1004714-54 | 1 | COVER | 106,98 Lei | |
| 309 | 1004714-44 | 1 | TIE ROD | 26,1 Lei | |
| 310 | 1004714-43 | 1 | MODULE | 2335,8 Lei | |
| 311 | 1004714-45 | 1 | TIE ROD | 59,2 Lei | |
| 312 | 1004714-36 | 1 | BEARING | 81,9 Lei | |
| 315 | 1004714-57 | 1 | BRUSH AND HOLDER SA | 213,19 Lei | |
| 315 | 1004714-58 | 1 | BRACKET | 225,26 Lei | |
| 315 | 1004714-59 | 1 | BRACKET | 181,55 Lei | |
| 316 | 1004714-62 | 1 | MANIFOLD ASSEMBLY | 462,3 Lei | |
| 317 | 1004714-50 | 1 | COVER | 26,1 Lei | |
| 317 | 1004714-51 | 1 | SUPPORT | 21,85 Lei | |
| 317 | 1004714-52 | 1 | FAN | 52,22 Lei | |
| 319 | 1004718-36 | 1 | COVER | 199,6 Lei | |
| 320 | 1004718-34 | 1 | COVER SA | 1565,13 Lei | |
| 321 | 1004718-35 | 1 | SWITCH SA | 1087,42 Lei | |
| 324 | 1004714-55 | 1 | FLANGE | 230,5 Lei | |
| 324 | 1004714-56 | 1 | COVER SA | 240,38 Lei | |
| 325 | 1004714-60 | 1 | COVER SA | 133,4 Lei | |
| 327 | 1004714-61 | 1 | COVER SA | 462,3 Lei | |
| 328 | 1004714-46 | 1 | COVER | 90,6 Lei | |
| 328 | 1004714-47 | 1 | END CAP | 30,87 Lei | |
| 328 | 1004714-48 | 1 | FLANGE | 57,81 Lei | |
| 335 | 1004714-67 | 1 | CAPACITOR | 70,39 Lei | |
| 335 | 1004714-68 | 1 | RESISTOR | 19,95 Lei | |
| 350 | 1004714-63 | 1 | PLUG | 21,85 Lei | |
| 350 | 1004714-64 | 1 | SCREW | 19,95 Lei | |
| 350 | 1004714-65 | 1 | ROD | 34,05 Lei | |
| 350 | 1004714-66 | 1 | COVER SA | 613,14 Lei | |
| 501 | 1004714-69 | 1 | FILTER | 98,8 Lei | |
| 502 | 1004714-70 | 1 | SPARK PLUG | 70,39 Lei | |
| 503 | 1004714-42 | 1 | OIL | 81,9 Lei | |
| 504 | 1004714-41 | 1 | REPAIR KIT | 375,31 Lei | |
| 506 | 1004714-40 | 1 | MUFFLER | 318,26 Lei |
