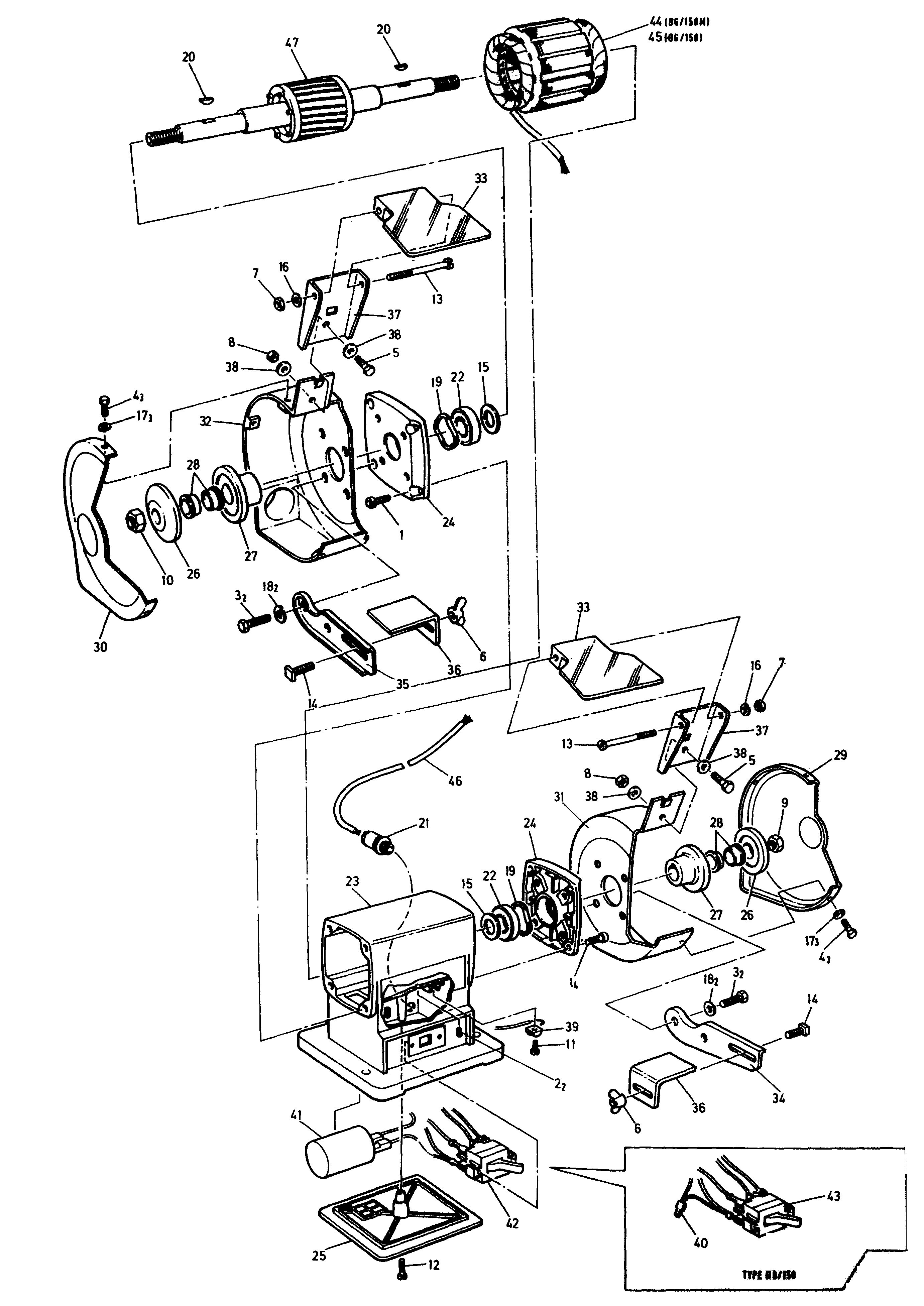

BLACK+DECKER BENCH GRINDER Type 1
SKU Produs: P7501
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 860085-03 | 4 | SCREW,HEX M.8X20 UNI 5739 | 4,7 Lei | |
| 4 | 860085-13 | 6 | SCREW,HEX M.6X12 UNI5739 BLCK | 4,7 Lei | |
| 5 | 860085-07 | 2 | SCREW | 4,7 Lei | |
| 6 | 946469-00 | 2 | KNOB | 5,3 Lei | |
| 7 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 8 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 9 | 860083-06 | 1 | NUT,HEX THICK M.12 UNI 5587 | 4,7 Lei | |
| 15 | 860073-00 | 2 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 17 | 933055-00 | 6 | TOOTHED WASHER DW320 | 4,7 Lei | |
| 19 | 860080-02 | 2 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 20 | 860318-01 | 2 | KEY,WOODRUFF 4X5 UNI 6606 | 5,1 Lei | |
| 22 | 330003-14 | 2 | BEARING | 31,6 Lei | |
| 38 | 860075-00 | 4 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 39 | 944650-00 | 1 | CLAMP,WIRE ZINC PLATED | 4,7 Lei |
