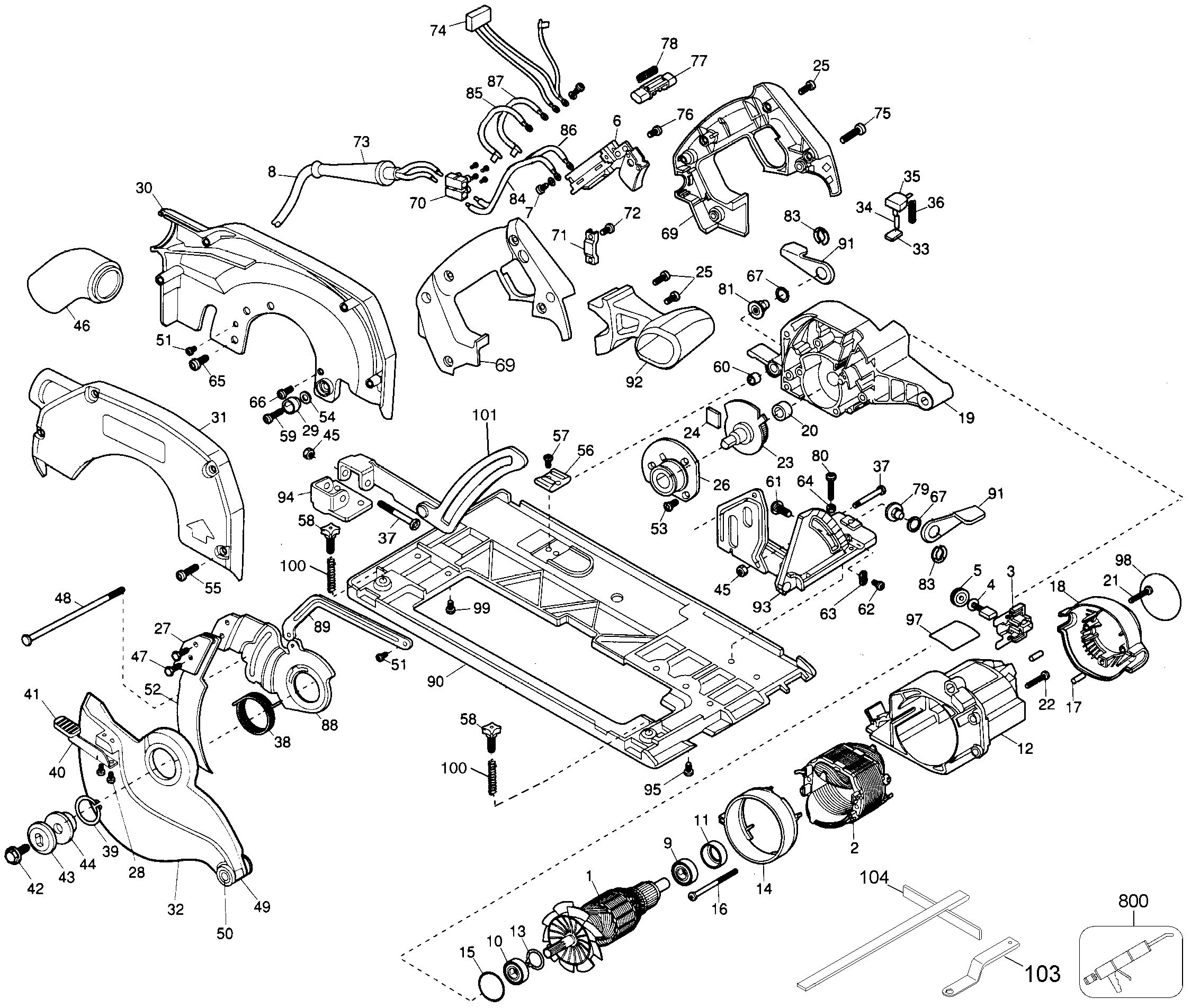

BLACK+DECKER PROF 86MM CIR SAW GERMANY Type 1
SKU Produs: P3910-30
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 147097-09 | 2 | BRUSH HOLDER SA | 98,8 Lei | |
| 4 | 145323-06 | 2 | BRUSH SA | 22,4 Lei | |
| 7 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,7 Lei | |
| 9 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 10 | 605040-27 | 1 | BALL BEARING | 14,2 Lei | |
| 13 | 144803-00 | 1 | SEAL RING | 4,7 Lei | |
| 15 | 701297-00 | 1 | SEAL | 4,7 Lei | |
| 16 | 330019-19 | 2 | SCREW, PLASTITE | 5,3 Lei | |
| 17 | 87205-00 | 2 | PIN | 4,5 Lei | |
| 20 | 330004-06 | 1 | BEARING, NEEDLE | 10,5 Lei | |
| 21 | 330019-20 | 2 | SCREW | 4,7 Lei | |
| 22 | 330045-19 | 4 | SCREW TEMP | 4,7 Lei | |
| 25 | 330019-14 | 6 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,7 Lei | |
| 28 | 330045-05 | 2 | SCREW.TEMP | 4,7 Lei | |
| 35 | 145350-00 | 1 | BUTTON | 4,7 Lei | |
| 42 | 145344-00 | 1 | SCREW SPECIAL | 10,5 Lei | |
| 43 | 145446-00 | 1 | WASHER OUTER CLAMP | 10,5 Lei | |
| 44 | 145442-03 | 1 | WASHER INNER CLAMP | 26,1 Lei | |
| 45 | 148641-00 | 2 | LOCK NUT | 4,7 Lei | |
| 55 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,7 Lei | |
| 57 | 098102-10 | 2 | SCREW, FLAT HEAD | 5,3 Lei | |
| 61 | N022876 | 1 | CARRIAGE BOLT | 4,7 Lei | |
| 62 | 330045-44 | 1 | SCREW, METAL THD FORM, M4X8 T20 | 4,7 Lei | |
| 64 | 330015-04 | 1 | NUT | 4,7 Lei | |
| 65 | 330045-23 | 2 | SCREW | 4,7 Lei | |
| 67 | 610744-00 | 2 | NUT | 14,8 Lei | |
| 70 | 320078-00 | 1 | BLOCK TERMINAL | 4,7 Lei | |
| 71 | 003618-00 | 1 | CORD CLAMP | 8,8 Lei | |
| 73 | 445338-00 | 1 | CORD PROTECTOR | 8,8 Lei | |
| 75 | 330019-21 | 3 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,7 Lei | |
| 76 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,7 Lei | |
| 83 | 152211-00 | 2 | RING | 4,7 Lei | |
| 91 | 145347-00 | 2 | LEVER | 8,8 Lei | |
| 95 | 098102-10 | 4 | SCREW, FLAT HEAD | 5,3 Lei | |
| 103 | 145378-01 | 1 | WRENCH | 10,5 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 148,5 Lei |
