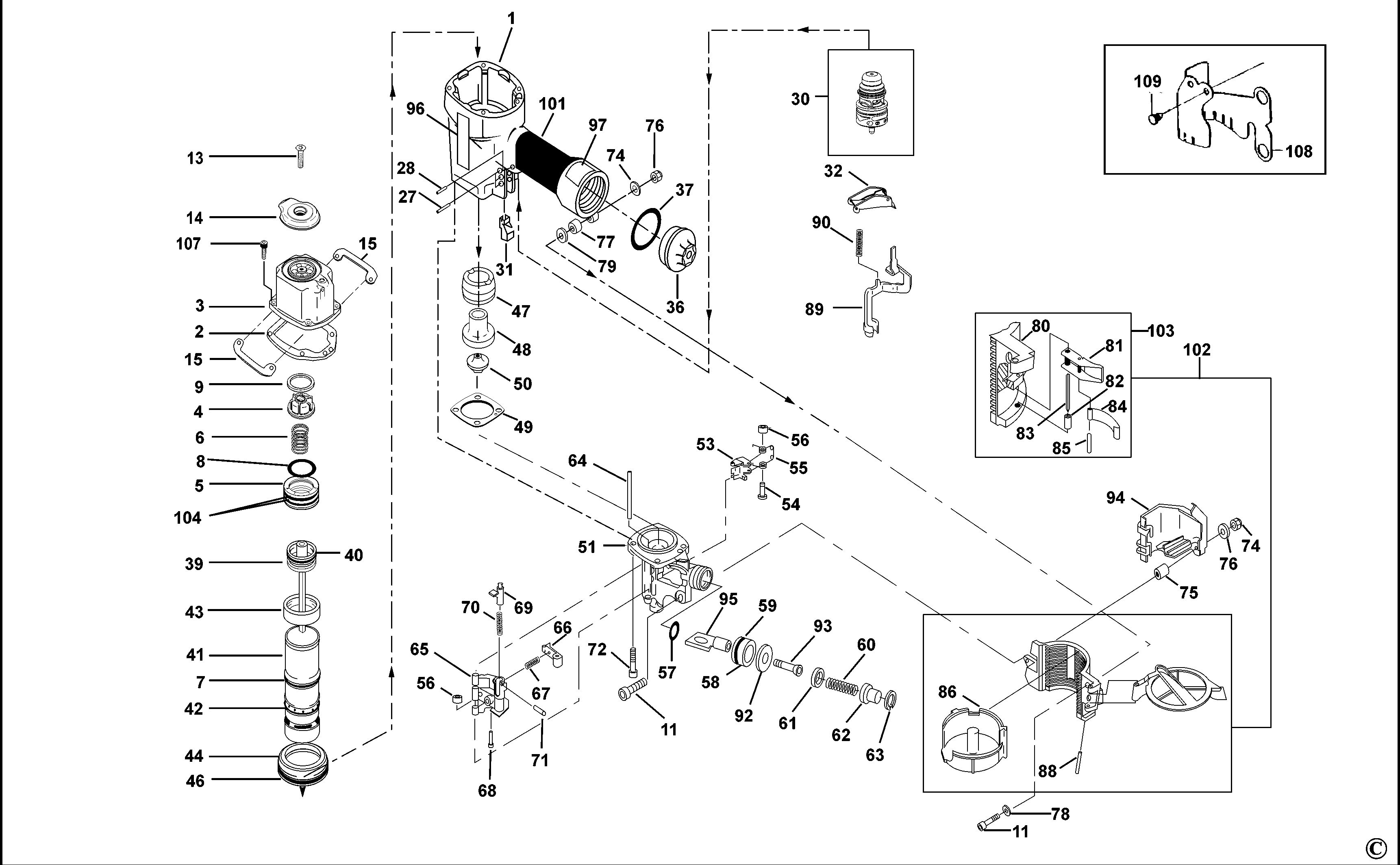

BOSTITCH NAILER (Type Rev A)
SKU Produs: N8090CB-1ML-E /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 110005 | 1 | FRAME | 248,33 Lei | |
| 2 | 9R199852 | 1 | SEAL | 16,49 Lei | |
| 3 | 105590 | 1 | CAP (SERVICE PART) N80 | 198,66 Lei | |
| 4 | N80161 | 1 | PISTON STOP | 6,09 Lei | |
| 5 | 104059 | 1 | HEAD VALVE | 88,41 Lei | |
| 6 | 101256 | 1 | SPRING | 5,15 Lei | |
| 7 | 101236 | 1 | O-RING,2.250X.115 | 5,15 Lei | |
| 8 | MRG041630 | 1 | O-RING,1.638X.118 | 16,49 Lei | |
| 9 | T55031 | 1 | RING, BUMPER | 5,15 Lei | |
| 11 | MSC6100-40 | 1 | SCREW,SOC. HD. CAP M6X1.0 | 5,15 Lei | |
| 13 | MSF8125-25 | 1 | SCREW, SFHCS M8 X 1.25X25 | 5,15 Lei | |
| 14 | 102506 | 1 | COVER,EXHAUST | 18,06 Lei | |
| 15 | 102473 | 1 | PROTECTOR,TOP FRAME | 7,14 Lei | |
| 27 | 102549 | 1 | PIN,SPECIAL SPIRAL | 5,15 Lei | |
| 28 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 30 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 31 | N70145 | 1 | ARM GUIDE | 6,09 Lei | |
| 32 | CNTK2 | 1 | KIT, CONTACT TRIP CONVERSION | 34,65 Lei | |
| 36 | N70167 | 1 | END CAP, 1/4 | 58,17 Lei | |
| 37 | MRG049431 | 1 | O-RING,2.343X.118 | 5,15 Lei | |
| 39 | 9R209551 | 1 | PISTON SA | 198,66 Lei | |
| 40 | 851439 | 1 | O-RING,1.689X.190 | 6,09 Lei | |
| 41 | N80170 | 1 | SLEEVE,CYLINDER | 99,86 Lei | |
| 42 | N80169 | 1 | SEAL,CHECK | 5,15 Lei | |
| 43 | N70155 | 1 | CYLINDER SEAL | 8,51 Lei | |
| 44 | N80168 | 1 | RING,CYLINDER | 12,5 Lei | |
| 46 | MRG084431 | 1 | O-RING,3.323X.122 | 8,51 Lei | |
| 47 | N70156 | 1 | BUMPER - A | 47,78 Lei | |
| 48 | N70157 | 1 | BUMPER - B | 28,14 Lei | |
| 49 | N80354 | 1 | GASKET, NOSE | 5,15 Lei | |
| 50 | 105033 | 1 | GUIDE,DRIVER | 31,19 Lei | |
| 51 | 9R198724 | 1 | NOSE | 411,39 Lei | |
| 53 | N80119 | 1 | PAWL, FEED | 107,73 Lei | |
| 54 | N50087 | 1 | PIN,SPECIAL(STEP) | 5,15 Lei | |
| 55 | N80120 | 1 | SPRING,TORSION | 5,15 Lei | |
| 56 | 854004 | 1 | WASHER | 5,15 Lei | |
| 57 | MRG009824 | 1 | O-RING,.386X.094 | 31,19 Lei | |
| 58 | N80128 | 1 | PISTON, FEED | 47,78 Lei | |
| 59 | 851384 | 1 | O-RING,.987X.103 | 43,16 Lei | |
| 60 | N80122 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 61 | N80123 | 1 | BUMPER, FEED PISTON | 5,15 Lei | |
| 62 | N80124 | 1 | COVER, FEED PISTON | 5,15 Lei | |
| 63 | 851383 | 1 | RING, RETAINING METRIC | 5,15 Lei | |
| 64 | N80125 | 1 | PIN,SPECIAL | 5,15 Lei | |
| 65 | N80126 | 1 | DOOR, N80 | 176,19 Lei | |
| 66 | N70149 | 1 | PAWL CHECK | 43,16 Lei | |
| 67 | 854011 | 1 | COMPRESSION SPRING | 5,15 Lei | |
| 68 | N70140 | 1 | PIN SPECIAL | 5,15 Lei | |
| 69 | N70150 | 1 | LATCH DOOR | 47,78 Lei | |
| 70 | 854013 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 71 | MPP030012 | 1 | PIN, SPIROL | 5,15 Lei | |
| 72 | MSC8125-28 | 1 | SCREW, SHCS M8X28MM METRI | 5,15 Lei | |
| 74 | MHE6100-100 | 1 | NUT,ESN M6X1 | 5,15 Lei | |
| 75 | 105973 | 1 | SPACER | 7,14 Lei | |
| 76 | MPW6.2 | 1 | WASHER.SPECIAL | 5,15 Lei | |
| 77 | N70143 | 1 | BUSHING - RUBBER | 5,15 Lei | |
| 78 | MPW6.3 | 1 | WASHER,PWN M6 | 5,15 Lei | |
| 79 | N80107 | 1 | SPACER, FRAME | 5,15 Lei | |
| 80 | N80101 | 1 | BRACKET, CANISTER | 43,16 Lei | |
| 81 | 107455 | 1 | LATCH,CANISTER | 11,45 Lei | |
| 82 | N80106 | 1 | SPACER, LATCH | 5,15 Lei | |
| 83 | UB2126 | 1 | PIN, ROLL 1/8 X 1 5/8 LON | 5,15 Lei | |
| 84 | N80108 | 1 | SPRING,FLAT | 5,15 Lei | |
| 85 | UB2110.4 | 1 | PIN, ROLL 1/8 X 5/8 | 5,15 Lei | |
| 86 | N80103 | 1 | BOTTOM,CANISTER | 43,16 Lei | |
| 88 | UB5130 | 1 | PIN,SPIROL 1/4 X 1 7/8 | 5,15 Lei | |
| 89 | N80137 | 1 | ARM,CONTACT - SMOOTH TIP | 119,91 Lei | |
| 90 | N80132 | 1 | C.T. SPRING - N80 | 5,15 Lei | |
| 92 | LW14.2 | 1 | WASHER,1/4 HI COL LOCK | 5,15 Lei | |
| 93 | MSC6100-16 | 1 | SCREW,SHCS,M6X1.00X16 | 16,49 Lei | |
| 94 | N80131 | 1 | GUARD | 11,45 Lei | |
| 95 | N80121 | 1 | ROD, FEED PISTON | 99,86 Lei | |
| 96 | 112767 | 1 | LABEL,BOSTITCH | 5,15 Lei | |
| 97 | 159912 | 1 | LABEL,WARNING,COIL NAILER | 5,15 Lei | |
| 101 | 107490 | 1 | GRIP,HANDLE | 12,5 Lei | |
| 102 | 121635 | 1 | ASSEMBLY,CANISTER | 88,41 Lei | |
| 103 | 121632 | 1 | ASSEMBLY,BRACKET | 176,19 Lei | |
| 104 | 851438 | 2 | O-RING,2.236X.115 | 21,11 Lei | |
| 107 | MSC6100-30 | 1 | SCREW,SHCS,M6X1.00X30 | 5,15 Lei | |
| 108 | 9R217658 | 1 | SHIELD | 12,5 Lei | |
| 109 | 9R204227 | 1 | PLUG | 5,21 Lei |
