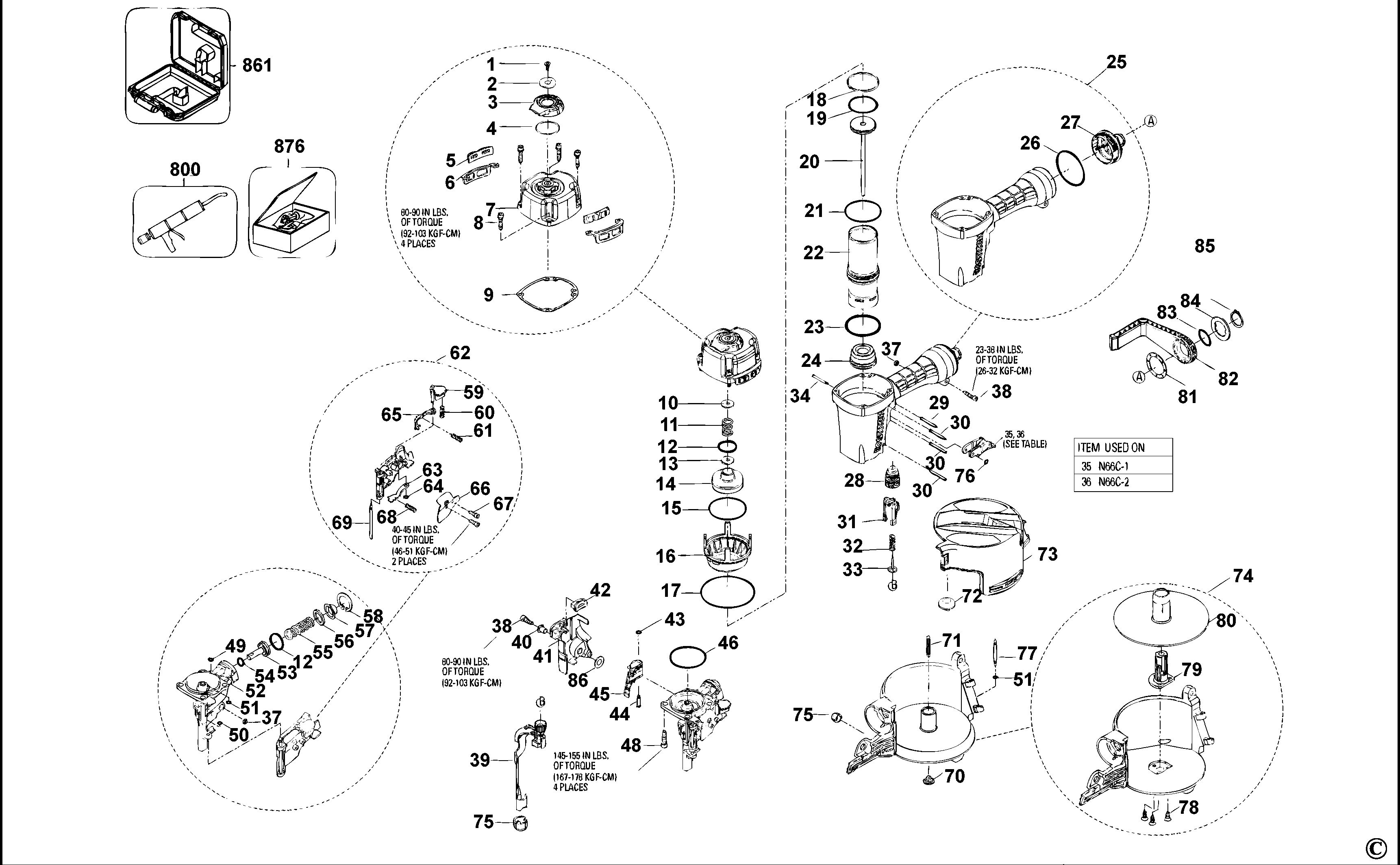

BOSTITCH NAILER (Type REV F)
SKU Produs: N66C-1 /Type: REV F
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 174041 | 1 | SCREW,SFHCS,M40X0.7X10 CF15 | 3,78 Lei | |
| 2 | 174042 | 1 | SPACER,EXHAUST COVER | 4,31 Lei | |
| 3 | 174043 | 1 | COVER,EXHAUST | 6,09 Lei | |
| 4 | 174044 | 1 | O RING | 5,15 Lei | |
| 5 | 174045 | 1 | PAD, RUBBER | 5,15 Lei | |
| 6 | 174046 | 1 | BRACKET, RUBBER PAD | 5,15 Lei | |
| 7 | G5400700 | 1 | DEFLECTOR UNIT | 66,15 Lei | |
| 8 | 175554 | 1 | SCREW, SHCD, M5X0.80X3 | 3,78 Lei | |
| 9 | 174050 | 1 | PACKING | 28,14 Lei | |
| 10 | 174049 | 1 | SEAL, DEFLECTOR | 5,15 Lei | |
| 11 | 174051 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 12 | 174053 | 1 | O-RING, 20.8MMX2.4MM | 5,15 Lei | |
| 13 | 174052 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 14 | 174054 | 1 | PISTON, HEAD VALVE | 11,45 Lei | |
| 15 | 174055 | 1 | O-RING, 44.7MMX3.5MM | 5,15 Lei | |
| 16 | 174057 | 1 | COLLAR, CYLINDER SLEEVE | 5,15 Lei | |
| 17 | 174056 | 1 | O-RING, 66.5MMX2.0MM | 5,15 Lei | |
| 18 | P2320006600 | 1 | SEAL RING | 5,15 Lei | |
| 19 | S06S003600 | 1 | O-RING | 5,15 Lei | |
| 20 | G0209200 | 1 | DRIVER UNIT N66C | 373,38 Lei | |
| 21 | 174058 | 1 | O-RING, 45.5MMX2.0MM | 5,15 Lei | |
| 22 | 9R213301 | 1 | COLLAR | 28,14 Lei | |
| 23 | 86460 | 1 | O-RING,1.859X.139 | 16,49 Lei | |
| 24 | 174075 | 1 | BUMPER, PISTON STOP | 43,16 Lei | |
| 25 | P3490000600 | 1 | ASSEMBLY,FRAME UNIT N66C-1 / N75C (ALU) | 218,19 Lei | |
| 26 | 174067 | 1 | O-RING,45.7MMX2.62MM N66C | 3,78 Lei | |
| 27 | 9R209578 | 1 | END CAP | 28,14 Lei | |
| 28 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 29 | 174070 | 1 | PIN | 5,15 Lei | |
| 30 | 174071 | 1 | PIN SPRING M3 X 30MM | 3,78 Lei | |
| 31 | 9R199740 | 1 | GUIDE | 7,14 Lei | |
| 32 | P2325202662 | 1 | SPRING | 5,15 Lei | |
| 33 | P2845203062 | 1 | SPRING HOLDER | 10,5 Lei | |
| 34 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 35 | CNTK1 | 1 | KIT, CONTACT TRIP CONVERSION | 34,65 Lei | |
| 36 | SEQ4 | 1 | KIT, SEQUENTIAL TRIP CONVERSION | 31,19 Lei | |
| 38 | 9R199720 | 1 | SCREW | 4,31 Lei | |
| 39 | G4007600 | 1 | ASSEMBLY, CONTACT ARM SMOOTH | 43,16 Lei | |
| 40 | P2325205662 | 1 | MAGAZINE SPACER | 5,15 Lei | |
| 41 | P2320005500 | 1 | GUARD | 6,09 Lei | |
| 42 | P2320005400 | 1 | RUBBER PAD | 5,15 Lei | |
| 43 | S06A000500 | 1 | O-RING | 5,15 Lei | |
| 44 | P2325207562 | 1 | SPRING PIN | 5,15 Lei | |
| 45 | G7600200 | 1 | ASSEMBLY, FEED JAW/CONNECTOR | 107,73 Lei | |
| 46 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 48 | 9R195545 | 1 | SCREW | 3,78 Lei | |
| 49 | S06P000400 | 1 | O-RING | 5,15 Lei | |
| 50 | 184434 | 1 | O RING | 3,78 Lei | |
| 51 | S06P000300 | 1 | O-RING | 5,15 Lei | |
| 52 | P2840001065 | 1 | NOSE | 589,89 Lei | |
| 53 | S06P000900 | 1 | O-RING | 5,15 Lei | |
| 54 | P2325504962 | 1 | FEED PISTON | 16,49 Lei | |
| 55 | P2325205062 | 1 | SPRING | 5,15 Lei | |
| 56 | P2322005100 | 1 | FEED PISTON BUMPER | 5,15 Lei | |
| 57 | P2325205262 | 1 | FEED PISTON COVER | 5,15 Lei | |
| 58 | S15202800 | 1 | C-RING | 5,15 Lei | |
| 59 | P2320004400 | 1 | DOOR LATCH | 5,15 Lei | |
| 60 | P2820004162 | 1 | SPRING | 5,15 Lei | |
| 61 | 188566 | 1 | SPRING | 5,15 Lei | |
| 62 | 188721 | 1 | ASSEMBLY, DOOR N66C (NEW) | 99,86 Lei | |
| 63 | P2325204062 | 1 | SECOND NAIL STOPPER | 5,15 Lei | |
| 64 | P2840004100 | 1 | GROMMET | 5,15 Lei | |
| 65 | P2325204262 | 1 | UPPER NAIL STOPPER | 18,06 Lei | |
| 66 | P2325203862 | 1 | DOOR COVER | 7,14 Lei | |
| 67 | 9R199448 | 1 | SCREW | 4,57 Lei | |
| 69 | P2325203662 | 1 | DOOR PIVOT PIN | 5,15 Lei | |
| 70 | 195013 | 1 | CAP | 3,78 Lei | |
| 71 | 191794 | 1 | SPRING | 3,78 Lei | |
| 73 | P2840002566 | 1 | MAGAZINE COVER | 21,11 Lei | |
| 74 | P2840003200 | 1 | ASEMBLY, MAGAZINE | 176,19 Lei | |
| 75 | P2840003732 | 1 | SAFETY SLEEVE N66C | 3,78 Lei | |
| 76 | 174073 | 1 | O RING | 5,15 Lei | |
| 77 | P2845202662 | 1 | PIN | 5,15 Lei | |
| 79 | P2840002466 | 1 | ADJUSTING POST | 5,15 Lei | |
| 80 | P2840002366 | 1 | NAIL HOLDER | 8,51 Lei | |
| 81 | 175582 | 1 | SEAT PLATE, HOOK | 5,15 Lei | |
| 82 | 175583 | 1 | HOOK | 5,15 Lei | |
| 83 | 175557 | 1 | O-RING | 5,15 Lei | |
| 84 | 175585 | 1 | CAP, HOOK | 5,15 Lei | |
| 85 | 175586 | 1 | RING, RETAINING | 5,15 Lei | |
| 86 | P3490000200 | 1 | WASHER | 3,78 Lei | |
| 800 | 100679 | 1 | LUBE ( 1LB.CAN)** WAS 86524 ** | 330,12 Lei | |
| 861 | B284102001 | 1 | CARRY CASE FOR N66C | 66,15 Lei |
