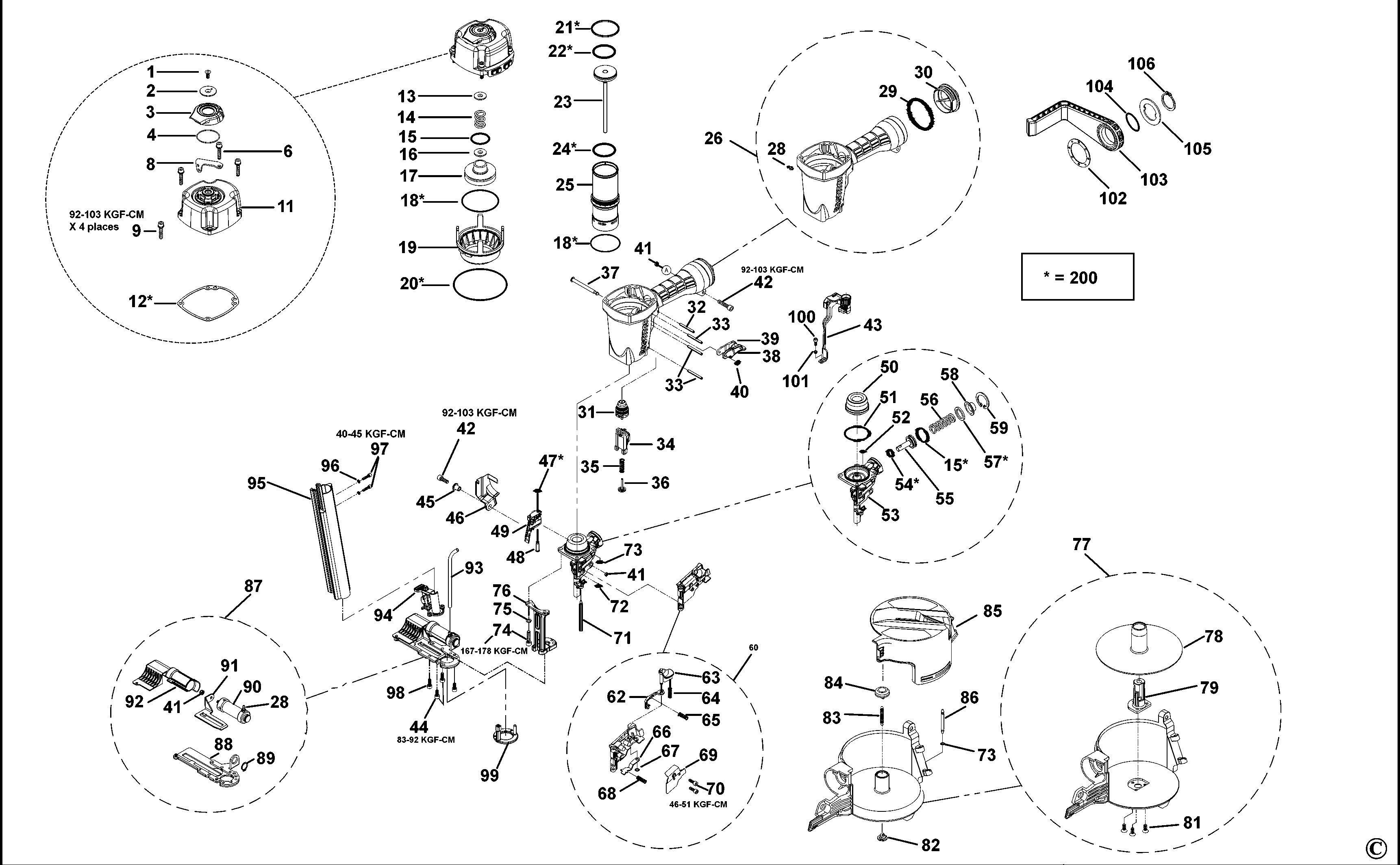

BOSTITCH NAILER (Type Rev E)
SKU Produs: N66BC /Type: REV E
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 174041 | 1 | SCREW,SFHCS,M40X0.7X10 CF15 | 3,78 Lei | |
| 2 | 174042 | 1 | SPACER,EXHAUST COVER | 4,31 Lei | |
| 3 | 174043 | 1 | COVER,EXHAUST | 6,09 Lei | |
| 4 | 174044 | 1 | O RING | 5,15 Lei | |
| 6 | 175554 | 1 | SCREW, SHCD, M5X0.80X3 | 3,78 Lei | |
| 9 | 175554 | 1 | SCREW, SHCD, M5X0.80X3 | 3,78 Lei | |
| 11 | G5400700 | 1 | DEFLECTOR UNIT | 66,15 Lei | |
| 12 | 174050 | 1 | PACKING | 28,14 Lei | |
| 13 | 174049 | 1 | SEAL, DEFLECTOR | 5,15 Lei | |
| 14 | 174051 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 15 | 174053 | 1 | O-RING, 20.8MMX2.4MM | 5,15 Lei | |
| 16 | 174052 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 17 | 174054 | 1 | PISTON, HEAD VALVE | 11,45 Lei | |
| 18 | 86460 | 1 | O-RING,1.859X.139 | 16,49 Lei | |
| 19 | 174057 | 1 | COLLAR, CYLINDER SLEEVE | 5,15 Lei | |
| 20 | 174056 | 1 | O-RING, 66.5MMX2.0MM | 5,15 Lei | |
| 21 | P2320006600 | 1 | SEAL RING | 5,15 Lei | |
| 22 | S06S003600 | 1 | O-RING | 5,15 Lei | |
| 24 | 174058 | 1 | O-RING, 45.5MMX2.0MM | 5,15 Lei | |
| 25 | 9R213301 | 1 | COLLAR | 28,14 Lei | |
| 28 | 188636 | 1 | FITTING | 5,15 Lei | |
| 29 | 174067 | 1 | O-RING,45.7MMX2.62MM N66C | 3,78 Lei | |
| 30 | 9R209578 | 1 | END CAP | 28,14 Lei | |
| 31 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 32 | 174070 | 1 | PIN | 5,15 Lei | |
| 33 | 100298 | 1 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 34 | 9R199740 | 1 | GUIDE | 7,14 Lei | |
| 35 | P2325202662 | 1 | SPRING | 5,15 Lei | |
| 36 | P2845203062 | 1 | SPRING HOLDER | 10,5 Lei | |
| 37 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 38 | SEQ4 | 1 | KIT, SEQUENTIAL TRIP CONVERSION | 31,19 Lei | |
| 39 | CNTK1 | 1 | KIT, CONTACT TRIP CONVERSION | 34,65 Lei | |
| 40 | 174073 | 1 | O RING | 5,15 Lei | |
| 42 | 9R199720 | 1 | SCREW | 4,31 Lei | |
| 45 | P2325205662 | 1 | MAGAZINE SPACER | 5,15 Lei | |
| 47 | S06A000500 | 1 | O-RING | 5,15 Lei | |
| 48 | P2325207562 | 1 | SPRING PIN | 5,15 Lei | |
| 49 | G7600200 | 1 | ASSEMBLY, FEED JAW/CONNECTOR | 107,73 Lei | |
| 50 | 174075 | 1 | BUMPER, PISTON STOP | 43,16 Lei | |
| 51 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 52 | S06P000400 | 1 | O-RING | 5,15 Lei | |
| 53 | P2840001065 | 1 | NOSE | 589,89 Lei | |
| 54 | S06P000900 | 1 | O-RING | 5,15 Lei | |
| 55 | P2325504962 | 1 | FEED PISTON | 16,49 Lei | |
| 56 | P2325205062 | 1 | SPRING | 5,15 Lei | |
| 57 | P2322005100 | 1 | FEED PISTON BUMPER | 5,15 Lei | |
| 58 | P2325205262 | 1 | FEED PISTON COVER | 5,15 Lei | |
| 59 | S15202800 | 1 | C-RING | 5,15 Lei | |
| 60 | 188721 | 1 | ASSEMBLY, DOOR N66C (NEW) | 99,86 Lei | |
| 62 | P2325204262 | 1 | UPPER NAIL STOPPER | 18,06 Lei | |
| 63 | P2320004400 | 1 | DOOR LATCH | 5,15 Lei | |
| 64 | P2820004162 | 1 | SPRING | 5,15 Lei | |
| 65 | 188566 | 1 | SPRING | 5,15 Lei | |
| 66 | P2325204062 | 1 | SECOND NAIL STOPPER | 5,15 Lei | |
| 67 | P2840004100 | 1 | GROMMET | 5,15 Lei | |
| 68 | 188713 | 1 | SPRING | 4,31 Lei | |
| 69 | P2325203862 | 1 | DOOR COVER | 7,14 Lei | |
| 70 | 9R199448 | 1 | SCREW | 4,57 Lei | |
| 71 | P2325203662 | 1 | DOOR PIVOT PIN | 5,15 Lei | |
| 72 | 184434 | 1 | O RING | 3,78 Lei | |
| 73 | S06P000300 | 1 | O-RING | 5,15 Lei | |
| 74 | MSC6100-25 | 1 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 77 | P2840003200 | 1 | ASEMBLY, MAGAZINE | 176,19 Lei | |
| 78 | P2840002366 | 1 | NAIL HOLDER | 8,51 Lei | |
| 79 | P2840002466 | 1 | ADJUSTING POST | 5,15 Lei | |
| 82 | 195013 | 1 | CAP | 3,78 Lei | |
| 83 | 191794 | 1 | SPRING | 3,78 Lei | |
| 85 | P2840002566 | 1 | MAGAZINE COVER | 21,11 Lei | |
| 86 | P2845202662 | 1 | PIN | 5,15 Lei | |
| 97 | S0110408100 | 1 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 98 | 188625 | 1 | SCREW, SHCS, M5X0.80X14 | 5,15 Lei | |
| 100 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 102 | 175582 | 1 | SEAT PLATE, HOOK | 5,15 Lei | |
| 103 | 175583 | 1 | HOOK | 5,15 Lei | |
| 104 | 175557 | 1 | O-RING | 5,15 Lei | |
| 105 | 175585 | 1 | CAP, HOOK | 5,15 Lei | |
| 106 | 175586 | 1 | RING, RETAINING | 5,15 Lei |
