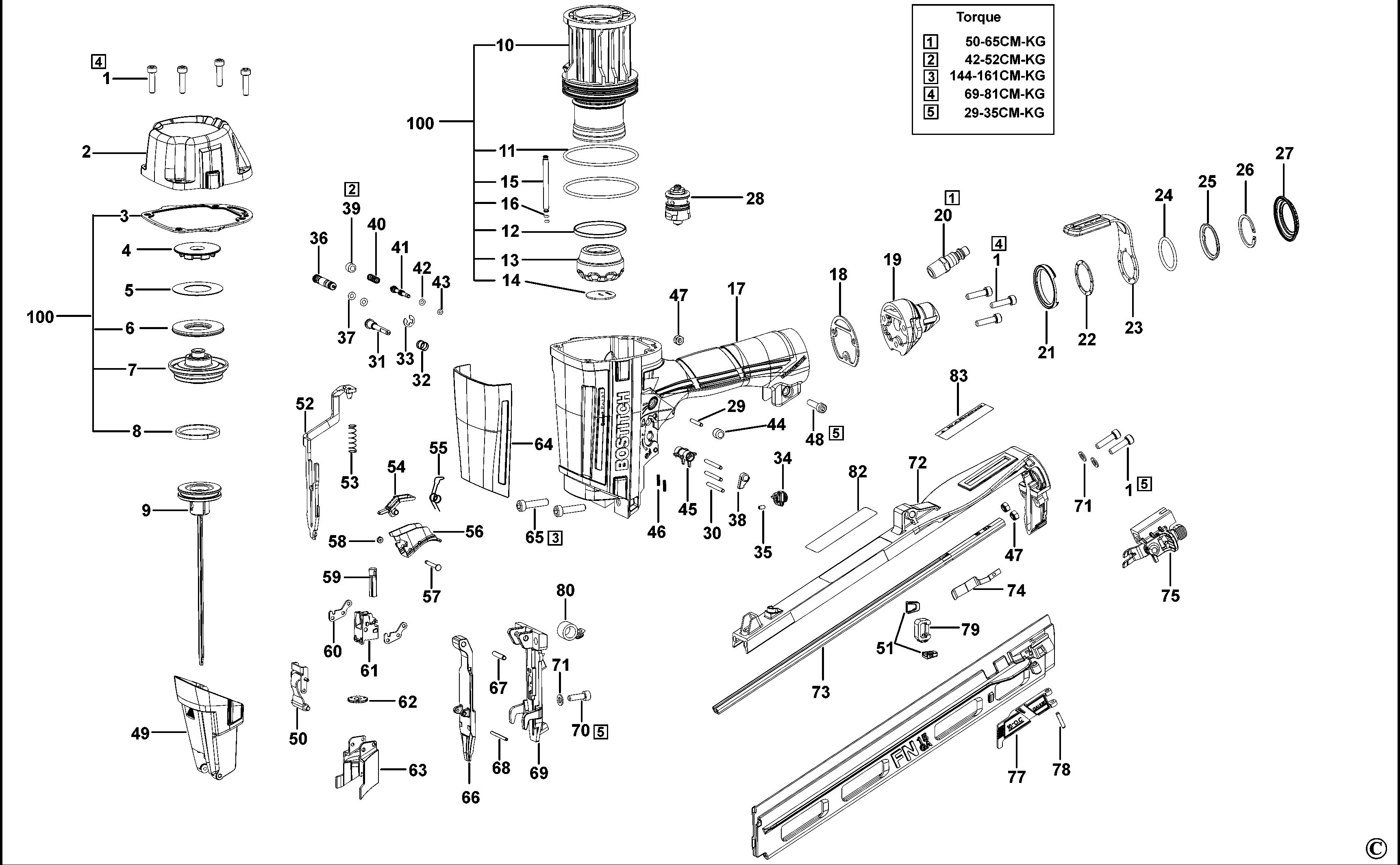

BOSTITCH NAILER (Type Rev 1)
SKU Produs: N62FNSP-E /Type: REV 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 9R203925 | 1 | CAP | 99,86 Lei | |
| 3 | 9R203928 | 1 | GASKET | 16,49 Lei | |
| 4 | 9R188810 | 1 | SEAL, FRAME CAP | 5,15 Lei | |
| 5 | 9R188852 | 1 | PLATE, HEAD VALVE | 5,15 Lei | |
| 6 | 9R188849 | 1 | SEAL, HEAD VALVE | 5,15 Lei | |
| 7 | 9R188859 | 1 | ASSEMBLY, HEAD VALVE | 18,06 Lei | |
| 8 | 9R188846 | 1 | RING, PISTON | 6,09 Lei | |
| 9 | 9R203772 | 1 | DRIVER SA | 119,91 Lei | |
| 10 | 9R188809 | 1 | CYLINDER | 28,14 Lei | |
| 11 | 9R188836 | 1 | O-RING, 64.1X2.5 | 5,15 Lei | |
| 12 | 9R188835 | 1 | CHECK SEAL | 5,15 Lei | |
| 13 | 9R188807 | 1 | BUMPER, BOTTOM | 18,06 Lei | |
| 14 | 9R188847 | 1 | DRIVER GUIDE | 5,15 Lei | |
| 15 | 9R188825 | 1 | TUBE, BLOWER | 5,15 Lei | |
| 16 | 166797 | 1 | O RING | 5,15 Lei | |
| 17 | 9R203750 | 1 | FRAME | 317,1 Lei | |
| 18 | 9R188827 | 1 | GASKET, END CAP | 5,15 Lei | |
| 19 | 9R188814 | 1 | END CAP | 31,19 Lei | |
| 20 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 21 | 188829 | 1 | HOUSING | 5,15 Lei | |
| 22 | 9R188830 | 1 | PLATE | 3,78 Lei | |
| 23 | 9R188815 | 1 | HOOK | 14,07 Lei | |
| 24 | 174309 | 1 | O-RING,1.049X.103 | 5,15 Lei | |
| 25 | 9R188812 | 1 | CAP | 4,31 Lei | |
| 26 | 9R188811 | 1 | CIRCLIP | 3,78 Lei | |
| 27 | 9R188828 | 1 | COVER | 6,09 Lei | |
| 28 | 9R196764 | 1 | VALVE | 34,65 Lei | |
| 29 | 180475 | 1 | PIN | 5,15 Lei | |
| 30 | 9R203788 | 1 | SPIROL PIN | 3,78 Lei | |
| 31 | 9R205605 | 1 | PIN | 15,12 Lei | |
| 32 | 9R188850 | 1 | SPRING, MODE SWITCH | 5,15 Lei | |
| 33 | 9R200515 | 1 | CIRCLIP | 3,78 Lei | |
| 34 | 9R195254 | 1 | BUTTON | 4,31 Lei | |
| 35 | 9R198788 | 1 | GRUB SCREW | 3,78 Lei | |
| 37 | 9R196690 | 1 | O RING | 3,78 Lei | |
| 38 | 9R188822 | 1 | BUTTON LOCK-ON | 3,78 Lei | |
| 39 | 9R188837 | 1 | SCREW | 3,78 Lei | |
| 40 | 9R188832 | 1 | SPRING | 3,78 Lei | |
| 41 | 195518 | 1 | ROD | 11,45 Lei | |
| 42 | 9R188768 | 1 | O-RING, 3 X 1.5 | 5,15 Lei | |
| 43 | MRG002514 | 1 | O-RING,.098X.055 | 5,15 Lei | |
| 44 | 9R188824 | 1 | BUTTON | 3,78 Lei | |
| 45 | 9R201813 | 1 | PAWL | 16,49 Lei | |
| 46 | 9R201809 | 1 | SPRING | 3,78 Lei | |
| 47 | MHE5080-100 | 1 | LOCK-NUT | 5,15 Lei | |
| 48 | MSC5080-22 | 1 | SCREW | 5,15 Lei | |
| 49 | 9R203763 | 1 | COVER | 14,07 Lei | |
| 50 | 9R188794 | 1 | ASSEMBLY,PINCH PLATE | 7,14 Lei | |
| 51 | 9R203909 | 1 | FOOT | 6,09 Lei | |
| 52 | 9R203775 | 1 | TRIP SA | 47,78 Lei | |
| 53 | 9R203787 | 1 | SPRING | 4,31 Lei | |
| 54 | 9R205614 | 1 | ROCKER | 34,65 Lei | |
| 55 | 9R205607 | 1 | SPRING | 3,78 Lei | |
| 56 | 9R205611 | 1 | TRIGGER | 25,52 Lei | |
| 57 | 9R196682 | 1 | PIN | 3,78 Lei | |
| 58 | 391814-00 | 1 | GROMMET | 4,57 Lei | |
| 59 | 9R203784 | 1 | PIN SA | 31,19 Lei | |
| 60 | 9R201812 | 1 | BRACKET | 4,31 Lei | |
| 61 | 9R205579 | 1 | GUIDE | 4,31 Lei | |
| 62 | 9R198779 | 1 | WHEEL ADJUSTER | 3,78 Lei | |
| 63 | 9R203773 | 1 | COVER | 6,09 Lei | |
| 64 | 9R203757 | 1 | COVER | 6,09 Lei | |
| 65 | MSC6100-25 | 1 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 66 | 9R203761 | 1 | DOOR | 66,15 Lei | |
| 67 | 103858 | 1 | PIN,SPRING,4X20MM | 5,15 Lei | |
| 68 | 9R203790 | 1 | PLUNGER | 3,78 Lei | |
| 69 | 9R203759 | 1 | NOSE | 139,97 Lei | |
| 70 | 9R188771 | 1 | SCREW | 3,78 Lei | |
| 71 | 180569 | 1 | WASHER | 5,15 Lei | |
| 73 | 9R188798 | 1 | NAIL LINER | 28,14 Lei | |
| 74 | 9R188801 | 1 | STOP | 5,15 Lei | |
| 75 | 9R203778 | 1 | PUSHER | 34,65 Lei | |
| 77 | 9R188804 | 1 | FLAP | 5,15 Lei | |
| 78 | 181920 | 1 | PIN | 3,78 Lei | |
| 79 | 9R203923 | 1 | ADAPTOR | 6,09 Lei | |
| 80 | 9R188831 | 1 | SPRING, CONSTANT FORCE | 11,45 Lei | |
| 82 | 180296 | 1 | LABEL | 3,78 Lei | |
| 83 | 180582 | 1 | LABEL | 3,78 Lei | |
| 100 | N62FNB-RK | 1 | REPAIR KIT | 161,18 Lei |
