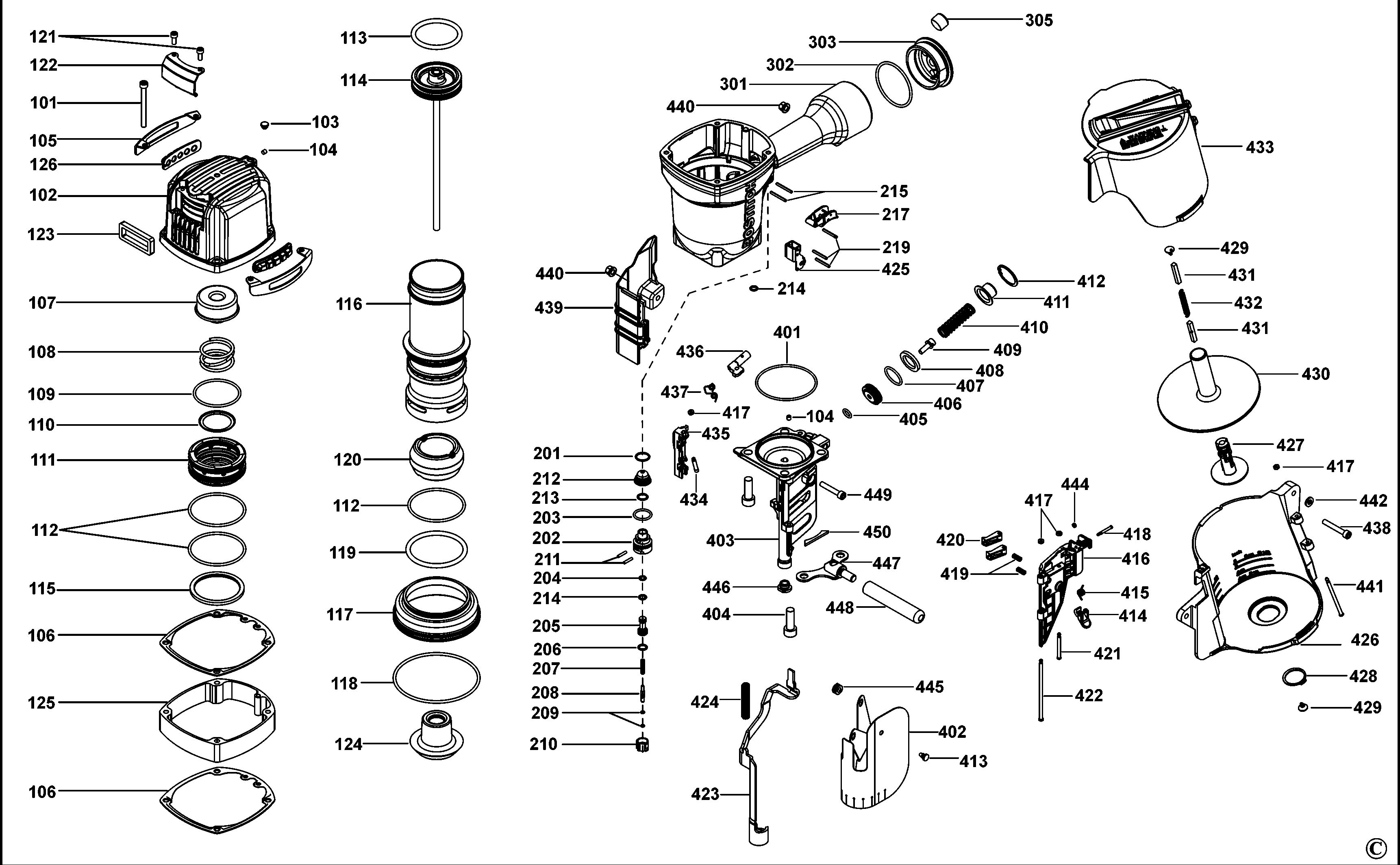

BOSTITCH NAILER (Type REV 1)
SKU Produs: N512C-2-E /Type: REV 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 2040101-04161 | 1 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 102 | 11369-1034302 | 1 | CAP | 298,62 Lei | |
| 103 | 1135S-0350001 | 1 | GROMMET | 5,15 Lei | |
| 104 | 2040104-03010 | 1 | HEX.SOC.HD.SCREW | 5,15 Lei | |
| 105 | 11397-1034702 | 1 | GUIDE, COVER | 21,11 Lei | |
| 106 | 11302-1034701 | 1 | CYLINDER CAP SEAL | 58,17 Lei | |
| 107 | 11370-1030001 | 1 | SEAL | 79,8 Lei | |
| 108 | 11360-1030001 | 1 | COMPRESSION SPRING | 12,5 Lei | |
| 109 | 2041108-06050 | 1 | O-RING | 5,15 Lei | |
| 110 | 11381-1030001 | 1 | WASHER | 5,15 Lei | |
| 111 | 11368-1030001 | 1 | HD VALVE PISTON | 150,05 Lei | |
| 112 | 2041108-07050 | 1 | O-RING | 5,15 Lei | |
| 113 | 2041100-06011 | 1 | O-RING | 6,09 Lei | |
| 114 | 11204-1110001 | 1 | ASSEMBLY, PISTON/DRIVER N512C | 641,76 Lei | |
| 115 | 11399-1030001 | 1 | COLLAR | 31,19 Lei | |
| 116 | 11320-1110001 | 1 | CYLINDER | 506,73 Lei | |
| 117 | 11321-1110001 | 1 | CYLINDER SPACER | 238,88 Lei | |
| 118 | 2041104-11010 | 1 | O-RING | 5,15 Lei | |
| 119 | 2041108-07060 | 1 | O-RING | 6,09 Lei | |
| 120 | 11327-1034702 | 1 | BUMPER-A | 88,41 Lei | |
| 121 | 2040101-03050 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 122 | 11371-1034701 | 1 | DEFLECTOR | 73,19 Lei | |
| 123 | 1132T-1030001 | 1 | MUFFLER | 73,19 Lei | |
| 124 | 11327-1034703 | 1 | BUMPER B | 88,41 Lei | |
| 125 | 1130E-1114301 | 1 | SPACER, CAP | 208,74 Lei | |
| 126 | 1135R-1034701 | 1 | PROTECTIVE CUSHION | 14,07 Lei | |
| 201 | 2041104-02060 | 1 | O RING | 4,31 Lei | |
| 202 | 11374-0860001 | 1 | CAP | 58,17 Lei | |
| 203 | 2041100-02050 | 1 | O RING | 5,15 Lei | |
| 204 | 2041100-01070 | 1 | O-RING | 3,78 Lei | |
| 205 | 1133S-0860001 | 1 | PLUNGER | 18,06 Lei | |
| 206 | 2041100-01030 | 1 | O-RING | 3,78 Lei | |
| 207 | 11376-0860001 | 1 | SPRING | 4,31 Lei | |
| 208 | 2041108-01020 | 1 | O RING | 3,78 Lei | |
| 209 | 11375-0860002 | 1 | PLUNGER | 18,06 Lei | |
| 210 | 11373-0860001 | 1 | HEAD | 14,07 Lei | |
| 211 | 11329-0860001 | 2 | PIN | 6,09 Lei | |
| 212 | 1137A-0860001 | 1 | COVER | 6,09 Lei | |
| 213 | 2041104-02070 | 1 | O RING | 4,31 Lei | |
| 214 | 2041100-01050 | 1 | O-RING | 5,15 Lei | |
| 215 | 9R196803 | 1 | SPIRAL PINS | 5,15 Lei | |
| 217 | 11224-1110001 | 1 | TRIGGER | 99,86 Lei | |
| 219 | 2040401-05120 | 1 | SPRING PIN N400C | 4,31 Lei | |
| 301 | 11230-1038001 | 1 | FRAME | 438,59 Lei | |
| 302 | 9R196806 | 1 | O-RING | 5,15 Lei | |
| 303 | 11346-0864304 | 1 | CAP END, 3/8 | 47,78 Lei | |
| 305 | 1135V-0000017 | 1 | PLUG | 28,14 Lei | |
| 401 | 2041104-08020 | 1 | O-RING | 5,15 Lei | |
| 402 | 11383-1110001 | 1 | MUZZLE PROTECTOR | 43,16 Lei | |
| 403 | 11382-1114701 | 1 | NOSE | 1,22 Lei | |
| 404 | MSC10150-30 | 4 | SCREW,SHCS,M10X1.50X30 | 6,09 Lei | |
| 405 | 2041100-01091 | 1 | O-RING | 5,15 Lei | |
| 406 | 11364-0974702 | 1 | PISTON | 47,78 Lei | |
| 407 | 2041104-03040 | 1 | O RING | 5,15 Lei | |
| 408 | 1134W-0970001 | 1 | BUMPER | 7,14 Lei | |
| 409 | 2040100-04080 | 1 | BOLT ASSY | 5,15 Lei | |
| 410 | 11367-1030001 | 1 | SPRING | 8,51 Lei | |
| 411 | 11366-0974701 | 1 | CAP | 8,51 Lei | |
| 412 | 2040300-08010 | 1 | C- RING | 5,15 Lei | |
| 413 | 1134B-0864701 | 1 | PLUG, DUST SHIELD | 5,15 Lei | |
| 414 | 11310-0254702 | 1 | DOOR LATCH | 47,78 Lei | |
| 415 | 11311-1030001 | 1 | LATCH SPRING | 5,15 Lei | |
| 416 | 11361-1114701 | 1 | DOOR | 253,89 Lei | |
| 417 | 1135H-0860001 | 1 | RETAINER | 6,09 Lei | |
| 418 | 1131K-1034701 | 1 | PIN | 14,07 Lei | |
| 419 | 1133C-0860001 | 1 | SPRING COMPRESSION | 5,15 Lei | |
| 420 | 11358-1114701 | 1 | NAIL STOP | 66,15 Lei | |
| 421 | 11359-1114701 | 1 | PIN-NAIL STOP | 10,5 Lei | |
| 422 | 11362-1034701 | 1 | DOOR SHAFT PIN | 25,52 Lei | |
| 423 | 11330-1114701 | 1 | SAFETY | 88,41 Lei | |
| 424 | 11337-1030001 | 1 | SAFETY SPRING | 5,15 Lei | |
| 425 | N70145 | 1 | ARM GUIDE | 6,09 Lei | |
| 426 | 11354-1114701 | 1 | PLATFORM, CANISTER | 166,11 Lei | |
| 427 | 11357-1034704-1 | 1 | POST | 18,06 Lei | |
| 428 | 2040301-24010 | 1 | RETAINER | 4,31 Lei | |
| 429 | 1134M-0864701 | 1 | SPRING BASE | 5,15 Lei | |
| 430 | 11356-1114701 | 1 | SPACER | 139,97 Lei | |
| 431 | 1138W-0860001 | 1 | SPACER | 5,15 Lei | |
| 432 | 11328-1114701 | 1 | PULL SPRING | 5,15 Lei | |
| 433 | 11355-1114701 | 1 | CANISTER COVER | 58,17 Lei | |
| 434 | 11365-0864701 | 1 | PIN FEED PISTON | 12,5 Lei | |
| 435 | 11306-1114701 | 1 | FEED FINGER | 107,73 Lei | |
| 436 | 11364-0974701 | 1 | PISTON | 99,86 Lei | |
| 437 | 11307-0970001 | 1 | SPRING | 6,09 Lei | |
| 438 | 2040101-04131 | 1 | BOLT | 6,09 Lei | |
| 439 | 1134R-1114701 | 1 | SPRING COVER | 18,06 Lei | |
| 440 | 2040501-04010 | 1 | BOLT CAP | 5,15 Lei | |
| 441 | 1136R-1034701 | 1 | MAGAZINE SHAFT PIN | 21,11 Lei | |
| 442 | 2040202-04010 | 1 | FLAT WASHER | 5,15 Lei | |
| 444 | 9R189935 | 1 | RETAINER | 5,15 Lei | |
| 445 | 1135U-1010001 | 1 | PROTECTOR WASHER | 6,09 Lei | |
| 447 | 1120K-1034701 | 1 | HANDLE | 99,86 Lei | |
| 448 | 1137K-1030001 | 1 | HANDLE | 66,15 Lei | |
| 449 | 2040101-04121 | 1 | BOLT | 5,15 Lei | |
| 450 | 1135G-1114701 | 1 | RUBBER PAD | 5,15 Lei | |
| 451 | 7USSB-3111003 | 1 | ASSEMBLY, CANISTER | 850,09 Lei |
