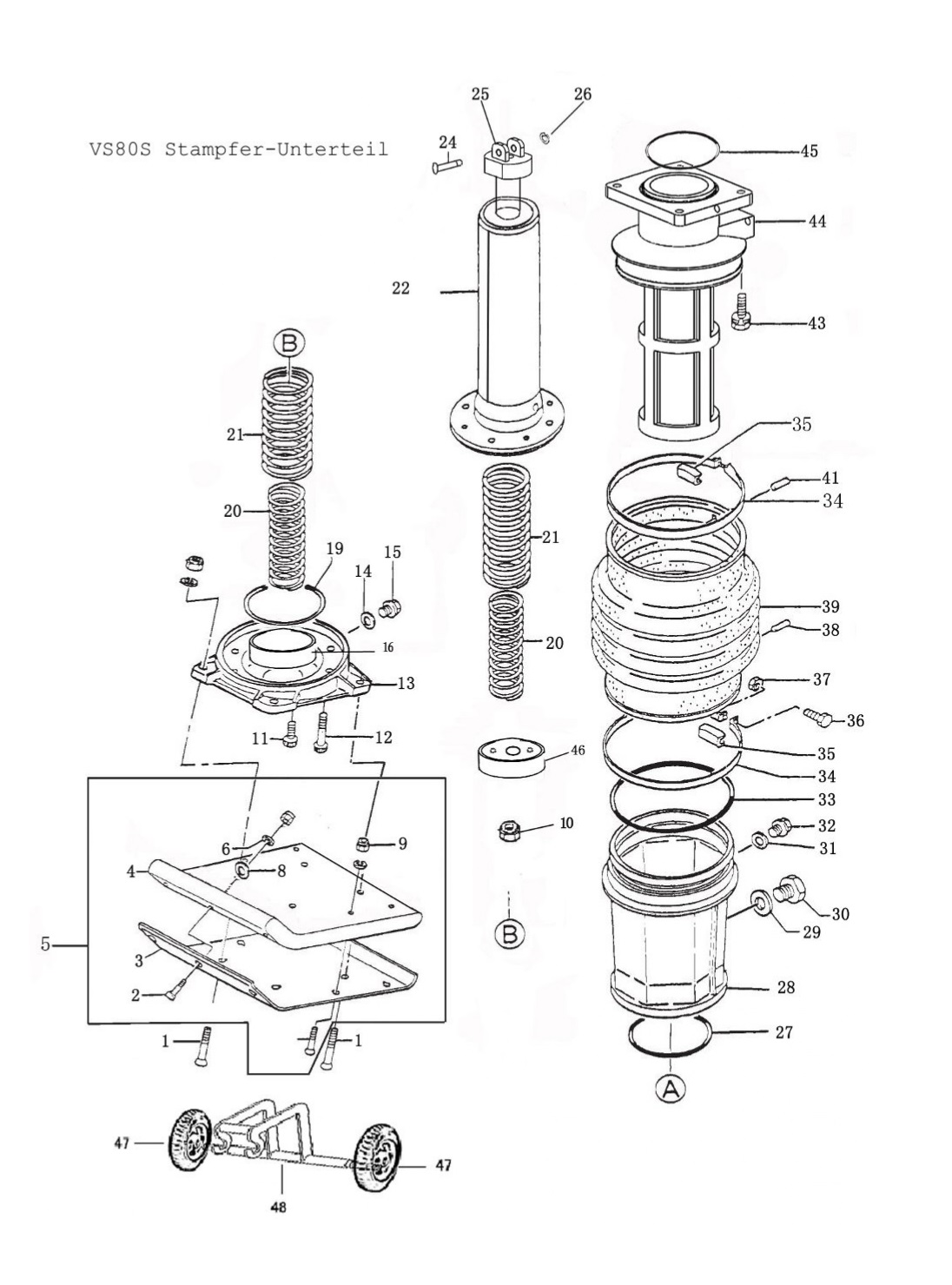

Lumag VS80S
SKU Produs: Lumag-VS80S
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 3VS80S01 | 1 | Guide bracket | 200 Lei | |
| 1-26A | 3VS80C3124 | 1 | Gearbox complete | 2228 Lei | |
| 10 | 3VS80SC10b | 1 | tank | 255 Lei | |
| 12 | 3VS80SC12 | 1 | Tank cap | 65 Lei | |
| 12 | 3VS80SC12b | 1 | Tank cap | 65 Lei | |
| 20 | 3LVS804S20 | 1 | cover | 460 Lei | |
| 28A | 3VS80SB40 | 1 | Centrifugal clutch | 450 Lei | |
| 28B | 3VS80SA26 | 1 | Oil reservoir Padfoot | 375 Lei | |
| 30B | 3VS80C2030 | 1 | Sight glass | 70 Lei | |
| 33A | 3RPi133016 | 1 | Oil drain plug | 25 Lei | |
| 40A | 3LVS80GXGSZ | 1 | Throttle cable | 125 Lei | |
| 40A | 3VS80C1040 | 1 | Throttle cable (short) | 125 Lei | |
| 40A | 3VS80C1040a | 1 | Throttle cable (short) | 125 Lei | |
| 43A | 3VS80SGH | 1 | Throttle lever | 170 Lei | |
| 44B | 3VS80C2044 | 1 | Cylinder | 880 Lei | |
| 5 | 3VS80CGH | 1 | Rubber buffer handle | 200 Lei | |
| 5 | 3VS80S105 | 1 | Rubber buffer handle | 200 Lei | |
| 5B | 3VS80C2005 | 1 | Base plate | 810 Lei | |
| N/O | 3RPi133017 | 1 | Sealing ring (oil blow-off screw) | 15 Lei | |
| N/O | 3VS80A15 | 1 | Sealing ring set | 320 Lei | |
| N/O | 3VS80GHG | 1 | handle | 45 Lei |
