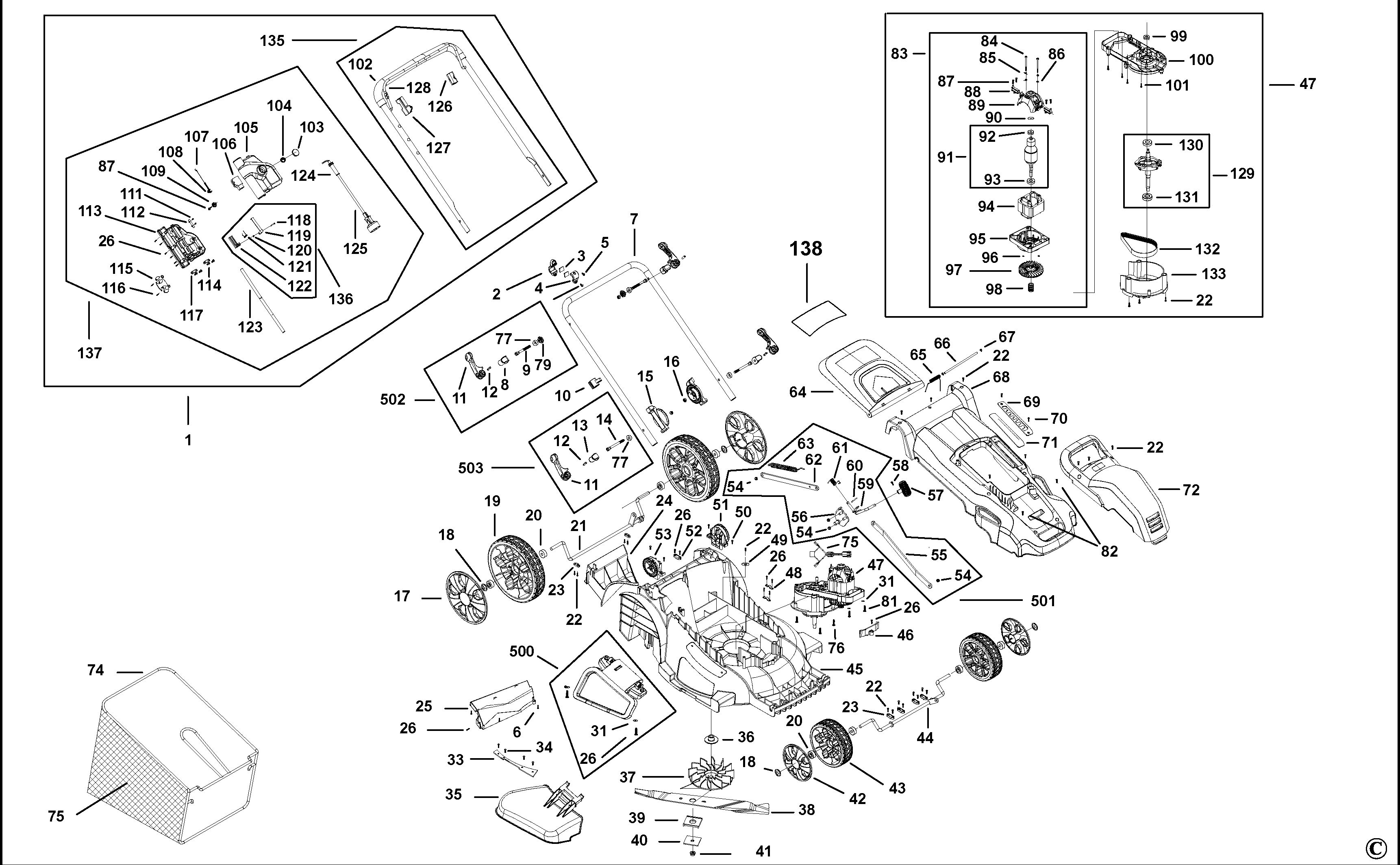

BLACK+DECKER CORDLESS MOWER (Type 1)
SKU Produs: LM2000 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004728-73 | 1 | HANDLE SA | 252,58 Lei | |
| 2 | 1004705-83 | 1 | COVER | 4,57 Lei | |
| 3 | 1004705-84 | 2 | GASKET | 4,57 Lei | |
| 4 | 1004705-85 | 1 | COVER | 4,57 Lei | |
| 5 | 1004728-88 | 1 | SCREW | 4,57 Lei | |
| 6 | 1004707-03 | 4 | SCREW | 4,57 Lei | |
| 7 | 1004728-77 | 1 | LOWER HANDLE | 70,39 Lei | |
| 8 | 1004705-89 | 2 | SEAT | 5,21 Lei | |
| 9 | 1004705-91 | 2 | CONNECTING ROD | 7,37 Lei | |
| 10 | 1004705-95 | 1 | CABLE GUIDE | 4,57 Lei | |
| 11 | 1004729-66 | 4 | FASTENER | 19,95 Lei | |
| 12 | 1004705-88 | 4 | PIN | 4,57 Lei | |
| 13 | 1004705-98 | 2 | SEAT | 4,57 Lei | |
| 14 | 1004706-00 | 1 | CONNECTING ROD | 6,23 Lei | |
| 15 | 1004706-01 | 2 | ADJUSTER | 15,12 Lei | |
| 16 | 1004695-01 | 4 | NUT | 4,57 Lei | |
| 17 | 1004706-02 | 2 | COVER | 13,85 Lei | |
| 18 | 1004706-03 | 4 | RETAINER | 4,57 Lei | |
| 19 | 1004706-05 | 2 | WHEEL REAR | 80,04 Lei | |
| 20 | 1004706-04 | 8 | COLLAR | 4,57 Lei | |
| 21 | 1004706-06 | 1 | AXLE REAR | 52,22 Lei | |
| 22 | 1004728-89 | 23 | SCREW | 4,57 Lei | |
| 23 | 1004706-07 | 2 | RETAINING PLATE | 4,57 Lei | |
| 24 | 1004706-10 | 1 | INSERT | 37,73 Lei | |
| 25 | 1004706-18 | 1 | GUIDE | 19,95 Lei | |
| 26 | 1004707-27 | 17 | SCREW | 4,57 Lei | |
| 31 | 1004706-12 | 2 | WASHER | 4,57 Lei | |
| 33 | 1004706-78 | 1 | PLATE | 12,71 Lei | |
| 34 | 1004728-25 | 4 | SCREW | 4,57 Lei | |
| 35 | 1004728-34 | 1 | SIDE EXTRUSION | 37,73 Lei | |
| 36 | 1004729-11 | 1 | SLEEVE | 25,54 Lei | |
| 37 | 1004728-97 | 1 | FAN | 41,93 Lei | |
| 38 | 1004706-29 | 1 | BLADE | 80,04 Lei | |
| 39 | 1004728-98 | 1 | BOARD | 6,23 Lei | |
| 40 | 1004729-12 | 1 | COVER | 8,64 Lei | |
| 41 | 1004729-13 | 1 | NUT | 4,57 Lei | |
| 42 | 1004706-32 | 2 | COVER | 7,37 Lei | |
| 43 | 1004706-33 | 2 | WHEEL FRONT | 52,22 Lei | |
| 44 | 1004706-34 | 1 | AXLE FRONT | 52,22 Lei | |
| 45 | 1004728-80 | 1 | CHASSIS | 433,24 Lei | |
| 46 | 1004729-00 | 1 | SCREEN | 4,57 Lei | |
| 47 | 1004728-91 | 1 | MOTOR SA | 613,14 Lei | |
| 48 | 1004706-38 | 1 | RETAINING PLATE | 4,57 Lei | |
| 49 | 1004706-64 | 1 | WASHER | 5,21 Lei | |
| 50 | 1004728-28 | 4 | SCREW | 4,57 Lei | |
| 51 | 1004706-13 | 1 | Gear | 21,85 Lei | |
| 52 | 1004728-94 | 1 | CLAMP | 4,57 Lei | |
| 53 | 1004706-11 | 1 | Gear | 21,85 Lei | |
| 54 | 1004706-57 | 8 | NUT | 4,57 Lei | |
| 55 | 1004728-95 | 1 | CONNECTING ROD | 21,85 Lei | |
| 56 | 1004706-58 | 1 | SUPPORT PLATE | 30,87 Lei | |
| 57 | 1004706-66 | 1 | ELEVATING HANDLE | 12,71 Lei | |
| 58 | 1004706-65 | 1 | SCREW | 4,57 Lei | |
| 59 | 1004706-59 | 1 | LINK | 17,02 Lei | |
| 60 | 1004706-61 | 1 | COTTER PIN | 4,57 Lei | |
| 61 | 1004706-60 | 1 | SPRING TORSION | 4,57 Lei | |
| 62 | 1004729-02 | 1 | CONNECTING ROD | 19,95 Lei | |
| 63 | 1004706-63 | 1 | SPRING TORSION | 7,37 Lei | |
| 64 | 1004728-81 | 1 | GRASSFLAP | 57,81 Lei | |
| 65 | 1004706-83 | 1 | SPRING TORSION | 6,23 Lei | |
| 66 | 1004728-51 | 1 | SHAFT | 12,71 Lei | |
| 67 | 1004706-74 | 2 | CIRCLIP | 4,57 Lei | |
| 68 | 1004729-19 | 1 | HOUSING UPPER | 181,55 Lei | |
| 69 | 1004706-54 | 1 | ADJUSTER PLATE | 17,02 Lei | |
| 70 | 1004706-55 | 2 | SCREW | 4,57 Lei | |
| 71 | 1004706-53 | 1 | SLEEVE | 6,23 Lei | |
| 72 | 1004729-03 | 1 | COVER | 80,04 Lei | |
| 73 | 1004728-09 | 1 | GRASSBAG | 240,38 Lei | |
| 74 | 1004705-97 | 1 | FRAME | 88,55 Lei | |
| 75 | 1004728-84 | 1 | BATTERY CONNECTOR | 19,95 Lei | |
| 76 | 1004729-14 | 3 | SCREW | 4,57 Lei | |
| 77 | 1004729-04 | 4 | PAD | 4,57 Lei | |
| 79 | 1004707-39 | 2 | LOCK KNOB | 25,54 Lei | |
| 81 | 1004729-18 | 2 | SCREW | 4,57 Lei | |
| 82 | 1004728-62 | 2 | SCREW | 4,57 Lei | |
| 83 | 1004728-90 | 1 | MOTOR | 389,28 Lei | |
| 84 | 1004729-51 | 2 | SCREW | 4,57 Lei | |
| 85 | 1004729-52 | 2 | WASHER SPRING | 4,57 Lei | |
| 86 | 1004729-53 | 1 | GASKET | 4,57 Lei | |
| 87 | 1004728-85 | 5 | SCREW | 4,57 Lei | |
| 88 | 1004729-05 | 1 | BRUSH PAIR | 21,85 Lei | |
| 89 | 1004729-54 | 1 | SUPPORT | 15,12 Lei | |
| 90 | 1004729-50 | 1 | WASHER SPRING | 4,57 Lei | |
| 91 | 1004729-30 | 1 | ARMATURE SA | 195,02 Lei | |
| 92 | 1004729-48 | 1 | BEARING | 13,85 Lei | |
| 93 | 1004729-49 | 1 | BEARING | 15,12 Lei | |
| 94 | 1004729-01 | 1 | FIELD | 145,09 Lei | |
| 95 | 1004729-55 | 1 | COVER | 25,54 Lei | |
| 96 | 1004729-56 | 2 | NUT | 4,57 Lei | |
| 97 | 1004730-16 | 1 | FAN | 41,93 Lei | |
| 98 | 1004729-47 | 1 | WHEEL | 17,02 Lei | |
| 99 | 1004729-57 | 1 | BEARING | 8,64 Lei | |
| 100 | 1004729-58 | 1 | FRAME | 52,22 Lei | |
| 101 | 1004729-59 | 4 | SCREW | 4,57 Lei | |
| 102 | 1004705-56 | 1 | FOAM | 13,85 Lei | |
| 103 | 1004705-58 | 1 | BUTTON | 4,57 Lei | |
| 104 | 1004705-59 | 1 | SPRING | 4,57 Lei | |
| 105 | 1004728-75 | 1 | SWITCH COVER | 4,57 Lei | |
| 106 | 1004728-76 | 1 | SWITCH | 25,54 Lei | |
| 107 | 1004729-38 | 1 | CABLE | 10,29 Lei | |
| 108 | 1004729-36 | 1 | HOOK | 88,55 Lei | |
| 109 | 1004705-64 | 1 | BOTTOM PLATE | 4,57 Lei | |
| 111 | 5170016-95 | 2 | BOLT | 4,57 Lei | |
| 112 | 1004705-75 | 1 | GUIDE | 4,57 Lei | |
| 113 | 1004728-82 | 1 | SWITCH COVER | 21,85 Lei | |
| 115 | 1004728-83 | 1 | GUIDE BLOCK | 4,57 Lei | |
| 116 | 1004728-86 | 2 | SCREW | 4,57 Lei | |
| 117 | 1004705-79 | 1 | CABLE CLAMP | 4,57 Lei | |
| 118 | 1004694-84 | 1 | SCREW | 10,29 Lei | |
| 119 | 1004694-83 | 1 | CATCHPLATE | 4,57 Lei | |
| 120 | 1004694-87 | 1 | NUT | 4,57 Lei | |
| 121 | 1004694-85 | 1 | SPRING TORSION | 4,57 Lei | |
| 122 | 1004729-37 | 1 | GUIDE | 4,57 Lei | |
| 123 | 1004729-10 | 1 | CABLE | 34,05 Lei | |
| 124 | 1004728-87 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 125 | 1004729-06 | 1 | CORDSET | 21,85 Lei | |
| 126 | 1004729-07 | 1 | SLEEVE INSULATING | 13,85 Lei | |
| 127 | 1004729-08 | 1 | SUPPORT | 6,23 Lei | |
| 128 | 1004729-09 | 1 | BAR | 25,54 Lei | |
| 129 | 1004729-64 | 1 | BRAKE SA | 80,04 Lei | |
| 130 | 1004729-60 | 1 | BEARING | 15,12 Lei | |
| 131 | 1004729-61 | 1 | BEARING | 17,02 Lei | |
| 132 | 1004728-92 | 1 | BELT | 25,54 Lei | |
| 133 | 1004729-62 | 1 | BASEPLATE | 25,54 Lei | |
| 134 | 1004728-89 | 3 | SCREW | 4,57 Lei | |
| 135 | 1004729-35 | 1 | HANDLE SA | 130,35 Lei | |
| 136 | 1004729-32 | 1 | SWITCH LOCK-ON | 15,12 Lei | |
| 137 | 1004729-63 | 1 | SWITCHBOX SA | 145,09 Lei | |
| 138 | 1004730-01 | 1 | RATING PLATE | 5,21 Lei | |
| 500 | 1004729-28 | 1 | OUTLET | 57,81 Lei | |
| 501 | 1004729-29 | 1 | ADJUSTER HEIGHT | 120,82 Lei | |
| 502 | 1004729-33 | 1 | CLAMP SA | 96,56 Lei | |
| 503 | 1004729-34 | 1 | CLAMP SA | 52,22 Lei |
