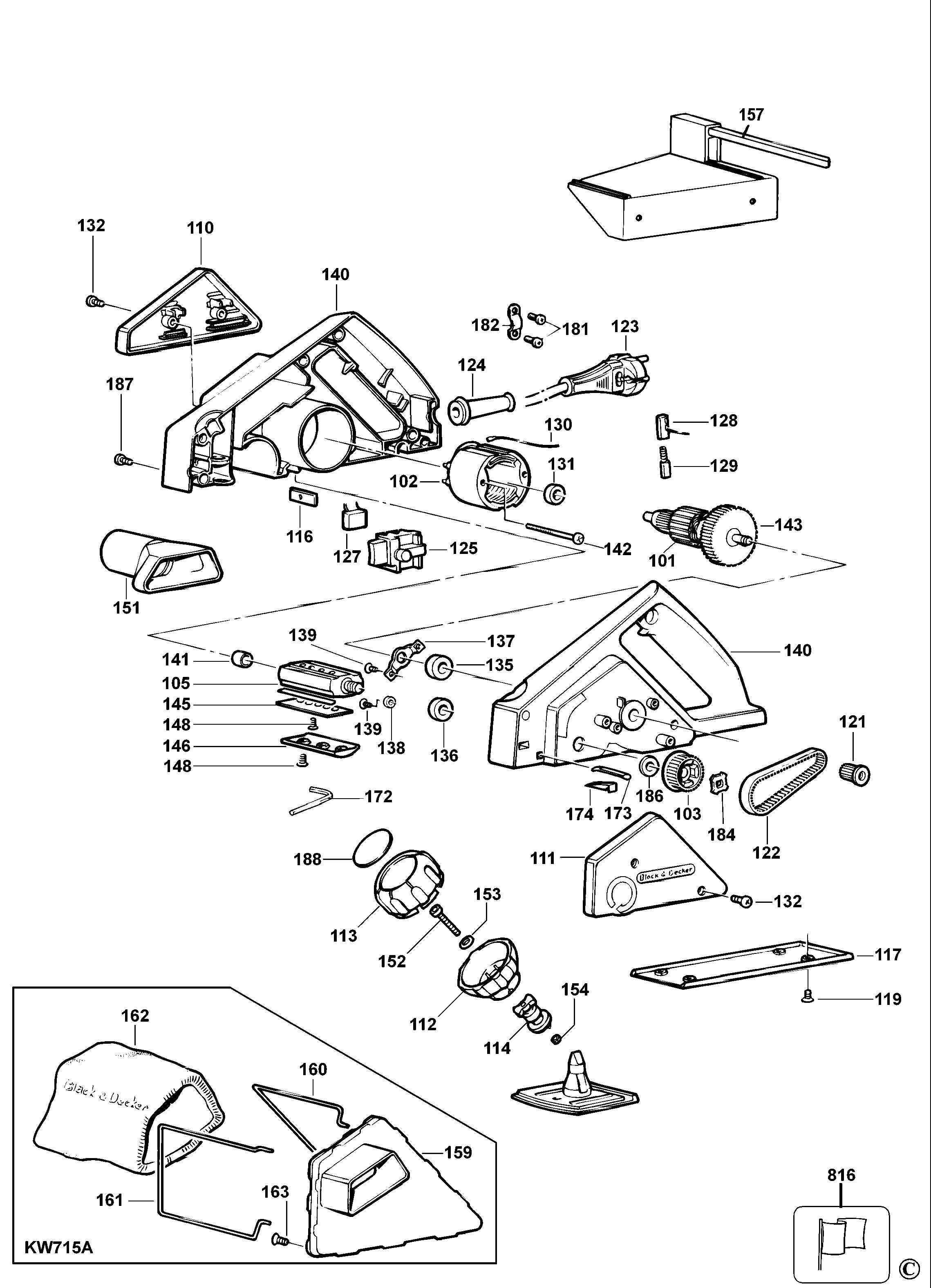

BLACK+DECKER PLANER (Type 3)
SKU Produs: KW715 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 116 | 918405 | 1 | NUT M6 | 4,57 Lei | |
| 122 | 324830-02 | 1 | BELT, TOOTHED | 70,39 Lei | |
| 123 | 330080-03 | 1 | CORDSET QS | 30,87 Lei | |
| 124 | 770235 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 127 | 321384 | 1 | CAPACITOR, 0,1UF L108 | 12,71 Lei | |
| 129 | 915068-01 | 2 | BRUSH 230V SA | 5,21 Lei | |
| 130 | 878846 | 2 | SA LEAD WIRE 340MM DW680 230V | 7,37 Lei | |
| 132 | 809961 | 4 | SCREW NO.8 X 19 POLY | 4,57 Lei | |
| 135 | 330003-31 | 1 | BEARING BALL | 17,02 Lei | |
| 136 | 330003-39 | 1 | BEARING, BALL | 17,02 Lei | |
| 141 | 330004-02 | 1 | BEARING, NEEDLE | 8,64 Lei | |
| 148 | 325377-00 | 10 | SCREW | 4,57 Lei | |
| 172 | 807043 | 1 | KEY, ALLEN, 4MM A/F HEX * 70MM LONG | 4,7 Lei |
