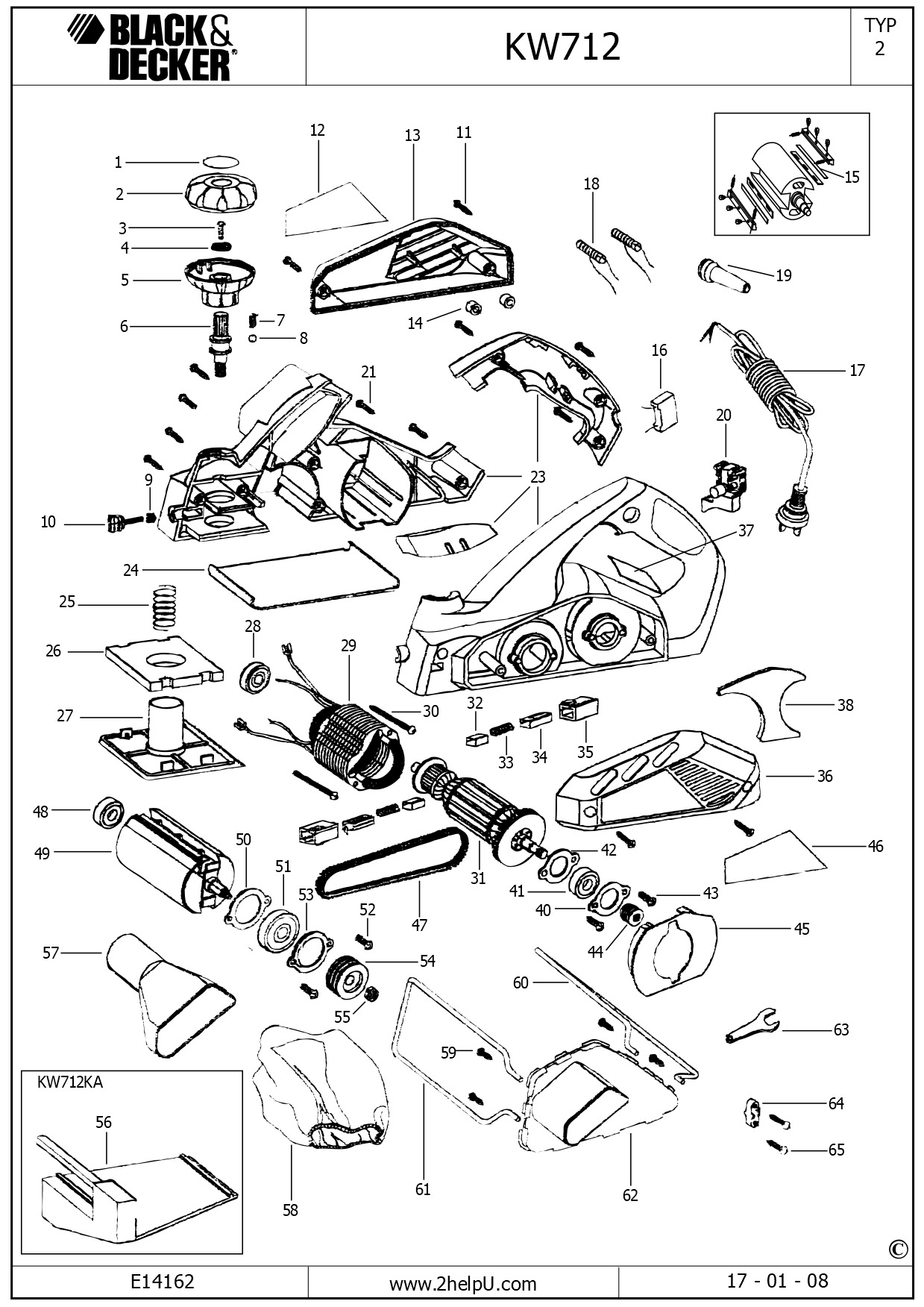

BLACK+DECKER PLANER (Type 2)
SKU Produs: KW712 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 569461-00 | 1 | LABEL | 4,57 Lei | |
| 2 | 597720-00 | 1 | KNOB UPPER | 25,54 Lei | |
| 3 | 569463-00 | 1 | SCREW | 4,57 Lei | |
| 4 | 569464-00 | 1 | WASHER SPRING | 4,57 Lei | |
| 5 | 597721-00 | 1 | KNOB LOWER | 7,37 Lei | |
| 6 | 597722-00 | 1 | ADJUSTER DEPTH | 7,37 Lei | |
| 7 | 569467-00 | 1 | WASHER SPRING | 4,57 Lei | |
| 8 | 569468-00 | 1 | BALL STEEL | 4,57 Lei | |
| 9 | 569469-00 | 1 | NUT M6 | 4,57 Lei | |
| 10 | 569470-00 | 1 | LOCKING SCREW | 4,57 Lei | |
| 11 | 569471-00 | 4 | SCREW | 4,57 Lei | |
| 12 | 597723-00 | 1 | NAMEPLATE | 4,57 Lei | |
| 13 | 597725-00 | 1 | COVER RH | 17,02 Lei | |
| 14 | 569474-00 | 2 | BRUSH PLATE | 4,57 Lei | |
| 16 | 569476-00 | 1 | CAPACITOR | 5,21 Lei | |
| 17 | 569478-00 | 1 | CORDSET | 30,87 Lei | |
| 18 | 569479-00 | 2 | CONDUCTOR | 10,29 Lei | |
| 19 | 569480-00 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 20 | 569481-00 | 1 | SWITCH | 15,12 Lei | |
| 21 | 569482-00 | 6 | SCREW | 7,37 Lei | |
| 23 | 597726-00 | 1 | CLAMSHELL SET | 145,09 Lei | |
| 24 | 569485-00 | 1 | BACKPLATE | 15,12 Lei | |
| 25 | 569486-00 | 1 | SPRING | 4,57 Lei | |
| 26 | 569487-00 | 1 | DUST GUARD | 4,57 Lei | |
| 27 | 569488-00 | 1 | SHOE | 21,85 Lei | |
| 28 | 569489-00 | 1 | BEARING | 8,64 Lei | |
| 29 | 597727-00 | 1 | FIELD SA | 96,56 Lei | |
| 30 | 569491-00 | 2 | SCREW | 4,57 Lei | |
| 31 | 1003726-00 | 1 | ARMATURE KIT 220 | 145,09 Lei | |
| 32 | 597729-00 | 2 | BRUSH | 19,95 Lei | |
| 33 | 569494-00 | 2 | BRUSH SPRING | 4,57 Lei | |
| 34 | 569495-00 | 2 | BRUSH HOLDER | 4,57 Lei | |
| 35 | 569496-00 | 2 | BRUSH HOLDER | 4,57 Lei | |
| 36 | 597730-00 | 1 | COVER LH | 17,02 Lei | |
| 37 | 597732-00 | 1 | WARNING LABEL | 4,57 Lei | |
| 38 | 597733-00 | 1 | PLATE | 4,57 Lei | |
| 40 | 596001-00 | 1 | BEARING PLATE | 4,57 Lei | |
| 41 | 596002-00 | 1 | BEARING | 8,64 Lei | |
| 42 | 596003-00 | 1 | BEARING PLATE | 4,57 Lei | |
| 43 | 596004-00 | 2 | SCREW | 4,57 Lei | |
| 44 | 596005-00 | 1 | WHEEL DRIVING | 5,21 Lei | |
| 45 | 597734-00 | 1 | BAFFLE | 4,57 Lei | |
| 46 | 597735-00 | 1 | NAMEPLATE | 4,57 Lei | |
| 47 | 596008-00 | 1 | BELT GROOVED | 21,85 Lei | |
| 48 | 596009-00 | 1 | BEARING | 12,71 Lei | |
| 49 | 596010-00 | 1 | BLADEDRUM SA | 130,35 Lei | |
| 50 | 596011-00 | 1 | BEARING PLATE | 4,57 Lei | |
| 51 | 596012-00 | 1 | BEARING | 15,12 Lei | |
| 52 | 596013-00 | 2 | SCREW | 4,57 Lei | |
| 53 | 596014-00 | 1 | BEARING PLATE | 7,37 Lei | |
| 54 | 596015-00 | 1 | WHEEL | 8,64 Lei | |
| 55 | 596016-00 | 1 | NUT M5 | 4,57 Lei | |
| 56 | 596017-00 | 1 | FENCE | 21,85 Lei | |
| 57 | 597736-00 | 1 | VACUUM ADAPTOR | 7,37 Lei | |
| 58 | 596019-00 | 1 | BAG DUST | 17,02 Lei | |
| 59 | 596020-00 | 4 | SCREW | 4,57 Lei | |
| 60 | 596021-00 | 1 | WIRE | 5,21 Lei | |
| 61 | 596022-00 | 1 | WIRE | 5,21 Lei | |
| 62 | 597737-00 | 1 | SUPPORT | 8,64 Lei | |
| 63 | 596024-00 | 1 | SPANNER BLADE | 6,23 Lei | |
| 64 | 596025-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 65 | 596026-00 | 2 | SCREW | 4,57 Lei |
