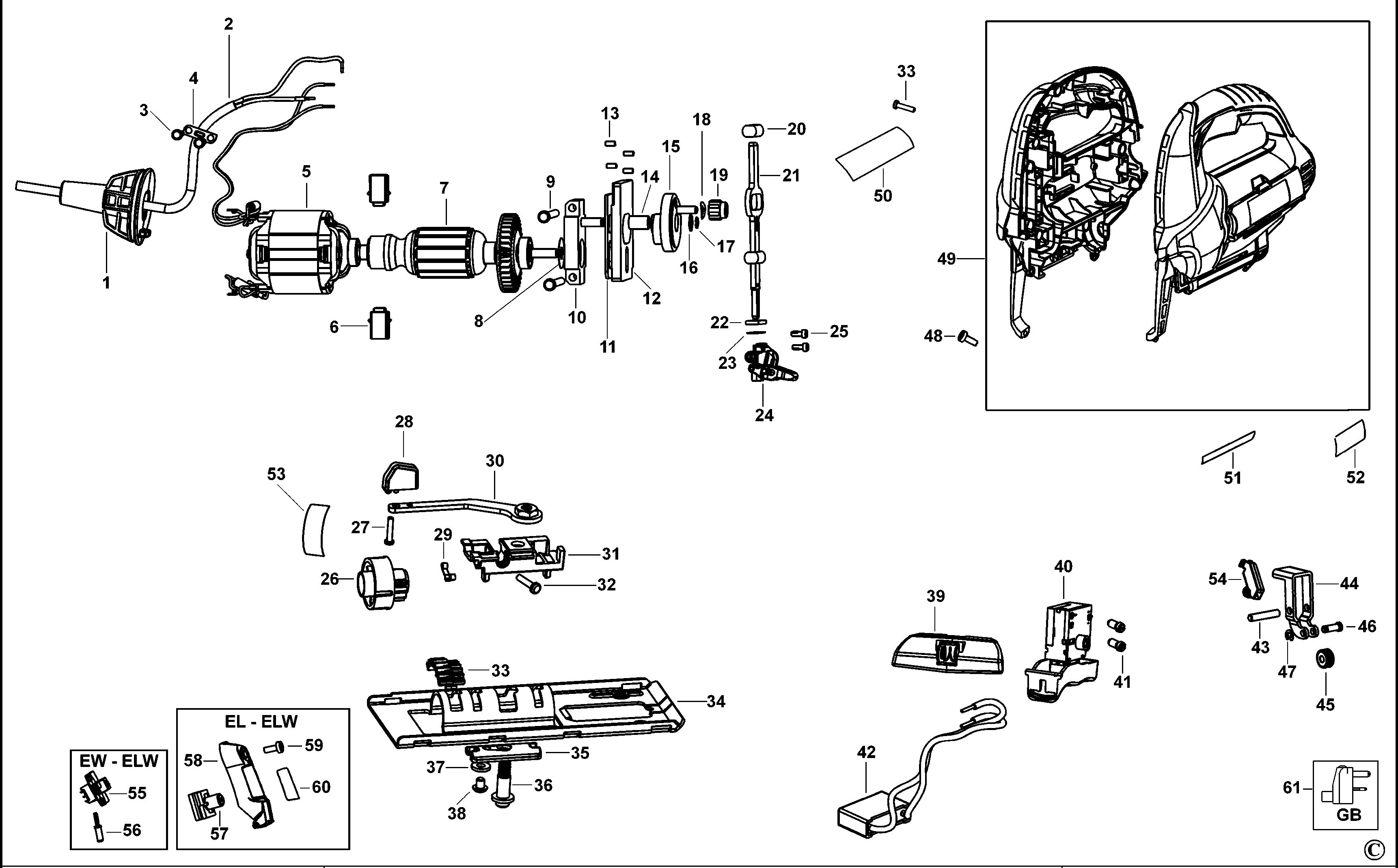

BLACK+DECKER JIGSAW (Type 1)
SKU Produs: KS800EL /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90514628 | 1 | CORD PROTECTOR | 7,2 Lei | |
| 3 | 370748 | 2 | SCREW | 4,57 Lei | |
| 4 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 6 | 90510508 | 2 | BRUSHBOX SA | 8,64 Lei | |
| 7 | 90513113 | 1 | ARMATURE SA | 80,04 Lei | |
| 9 | 330019-16 | 2 | SCREW, PLASTIC THD FORM, M4*38 T20 | 4,57 Lei | |
| 11 | 90525758 | 1 | FORK | 5,21 Lei | |
| 12 | 90525759 | 1 | COUNTERWEIGHT | 15,12 Lei | |
| 13 | 90517281 | 4 | PIN | 4,57 Lei | |
| 15 | 90526099 | 1 | Gear | 21,85 Lei | |
| 18 | 823954 | 1 | SPRING WASHER | 4,57 Lei | |
| 19 | 795688-00 | 1 | ROLLER, DRIVE | 7,37 Lei | |
| 20 | 810893 | 2 | BEARING | 4,57 Lei | |
| 21 | 90514115 | 1 | RECIPRICATOR | 21,85 Lei | |
| 22 | 582949-00 | 1 | FELT SEAL | 4,57 Lei | |
| 23 | 582948-00 | 1 | PLATE | 4,57 Lei | |
| 24 | 582593-00 | 1 | BLADE CLAMP | 15,12 Lei | |
| 25 | 583173-00 | 2 | SCREW | 4,57 Lei | |
| 26 | 90514273 | 1 | INDICATOR | 5,3 Lei | |
| 27 | 330019-31 | 2 | SCREW | 4,57 Lei | |
| 28 | 90514276 | 1 | HANDLE | 4,7 Lei | |
| 31 | 90601184 | 1 | BLOCK | 5,1 Lei | |
| 32 | 330019-13 | 9 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 33 | 90514228 | 1 | INSERT | 4,7 Lei | |
| 35 | 90513772 | 1 | PLATE LOCK | 7,37 Lei | |
| 36 | 90514219 | 1 | BOLT | 5,21 Lei | |
| 37 | 90514216 | 1 | WASHER | 4,7 Lei | |
| 38 | 582827-00 | 1 | BOLT, M5 X 6MM | 4,57 Lei | |
| 40 | 90522183 | 1 | SWITCH | 51 Lei | |
| 41 | 90512961 | 2 | SCREW TERMINAL | 4,57 Lei | |
| 45 | 90514422 | 1 | ROLLER | 6,23 Lei | |
| 47 | 587375-00 | 1 | LOCKING RING | 4,57 Lei | |
| 48 | 330019-00 | 1 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 51 | 90520273 | 1 | LABEL PIVOT | 4,5 Lei | |
| 54 | 90514324 | 1 | DUST PORT | 4,57 Lei |
