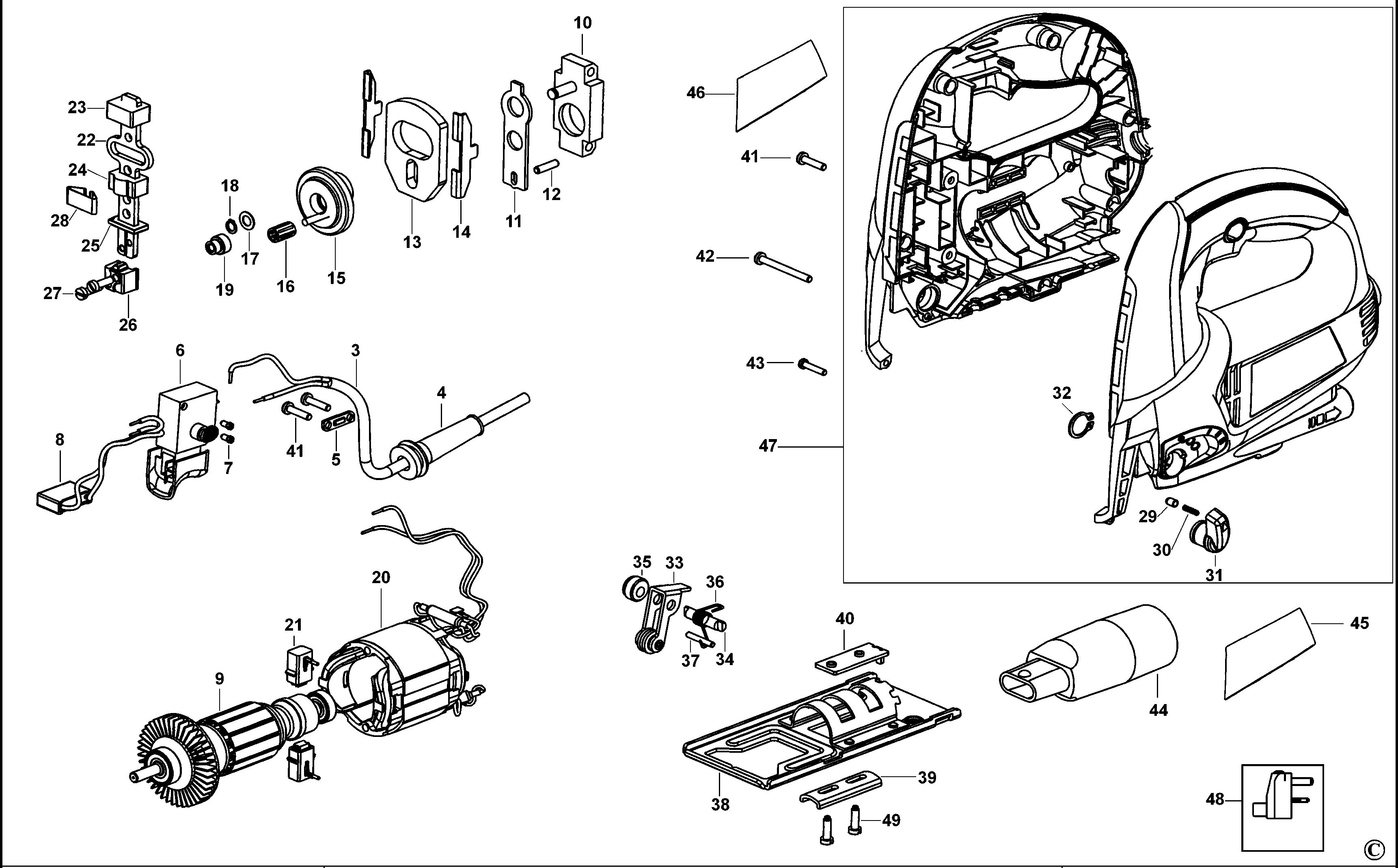

BLACK+DECKER JIGSAW (Type 1)
SKU Produs: KS703PE /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 330080-03 | 1 | CORDSET QS | 30,87 Lei | |
| 4 | 148481-00 | 1 | PROTECTOR | 4,57 Lei | |
| 5 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 6 | 90513109 | 1 | SWITCH | 41,93 Lei | |
| 7 | 90512961 | 2 | SCREW TERMINAL | 4,57 Lei | |
| 8 | 90513112 | 1 | CAPACITOR | 6,23 Lei | |
| 9 | 90513113 | 1 | ARMATURE SA | 80,04 Lei | |
| 10 | N814526 | 1 | BEARING BLOCK | 12,71 Lei | |
| 11 | 90510501 | 1 | FORK | 5,21 Lei | |
| 12 | 330041-07 | 1 | PIN, ROLLER | 4,57 Lei | |
| 13 | 90510500 | 1 | COUNTERWEIGHT | 13,85 Lei | |
| 14 | 90510499 | 2 | GUIDE | 4,57 Lei | |
| 15 | 90510503 | 1 | GEAR SA | 21,85 Lei | |
| 16 | 90512896 | 1 | BEARING NEEDLE | 4,57 Lei | |
| 17 | 582717-00 | 1 | WASHER | 4,57 Lei | |
| 18 | 90510502 | 1 | RETAINER | 4,57 Lei | |
| 19 | 90510504 | 1 | DRIVE ROLLER | 4,57 Lei | |
| 20 | 90513214 | 1 | FIELD SA 230V | 70,39 Lei | |
| 21 | 90510508 | 2 | BRUSHBOX SA | 8,64 Lei | |
| 22 | 90512881 | 1 | RECIPRICATOR | 8,64 Lei | |
| 23 | 90510505 | 1 | BEARING | 4,57 Lei | |
| 24 | 90510509 | 1 | BEARING | 7,37 Lei | |
| 25 | 90510510 | 1 | BELT SEAL | 4,57 Lei | |
| 26 | 90515265 | 1 | BLADE CLAMP | 5,21 Lei | |
| 27 | 797123 | 2 | SCREW | 4,57 Lei | |
| 28 | 90513143 | 1 | LEAF SPRING | 4,57 Lei | |
| 29 | 90513089 | 1 | CAP | 4,57 Lei | |
| 30 | 90512994 | 1 | SPRING | 4,57 Lei | |
| 31 | 90512880 | 1 | LEVER | 4,57 Lei | |
| 32 | 90512971 | 1 | RETAINER | 4,57 Lei | |
| 33 | 90513110 | 1 | BLADE SUPPORT SA | 8,64 Lei | |
| 34 | 90512892 | 1 | PIN | 4,57 Lei | |
| 35 | 90512893 | 1 | HUB | 4,57 Lei | |
| 36 | 90512889 | 1 | SPRING TORSION | 4,57 Lei | |
| 37 | 330041-06 | 1 | PIN | 4,57 Lei | |
| 38 | 90512884 | 1 | SHOE | 21,85 Lei | |
| 39 | 90512886 | 1 | PLATE | 4,57 Lei | |
| 40 | 90512885 | 1 | PLATE LOCK | 4,57 Lei | |
| 41 | 330019-03 | 8 | Screw M3.5X16 T15 | 4,57 Lei | |
| 42 | 330019-07 | 2 | SCREW | 4,57 Lei | |
| 43 | 330019-00 | 1 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 44 | 368608 | 1 | ADAPTOR VACUUM | 5,21 Lei | |
| 45 | 90513704 | 1 | BRAND LABEL | 4,57 Lei | |
| 49 | 90519315 | 2 | SCREW | 4,57 Lei |
