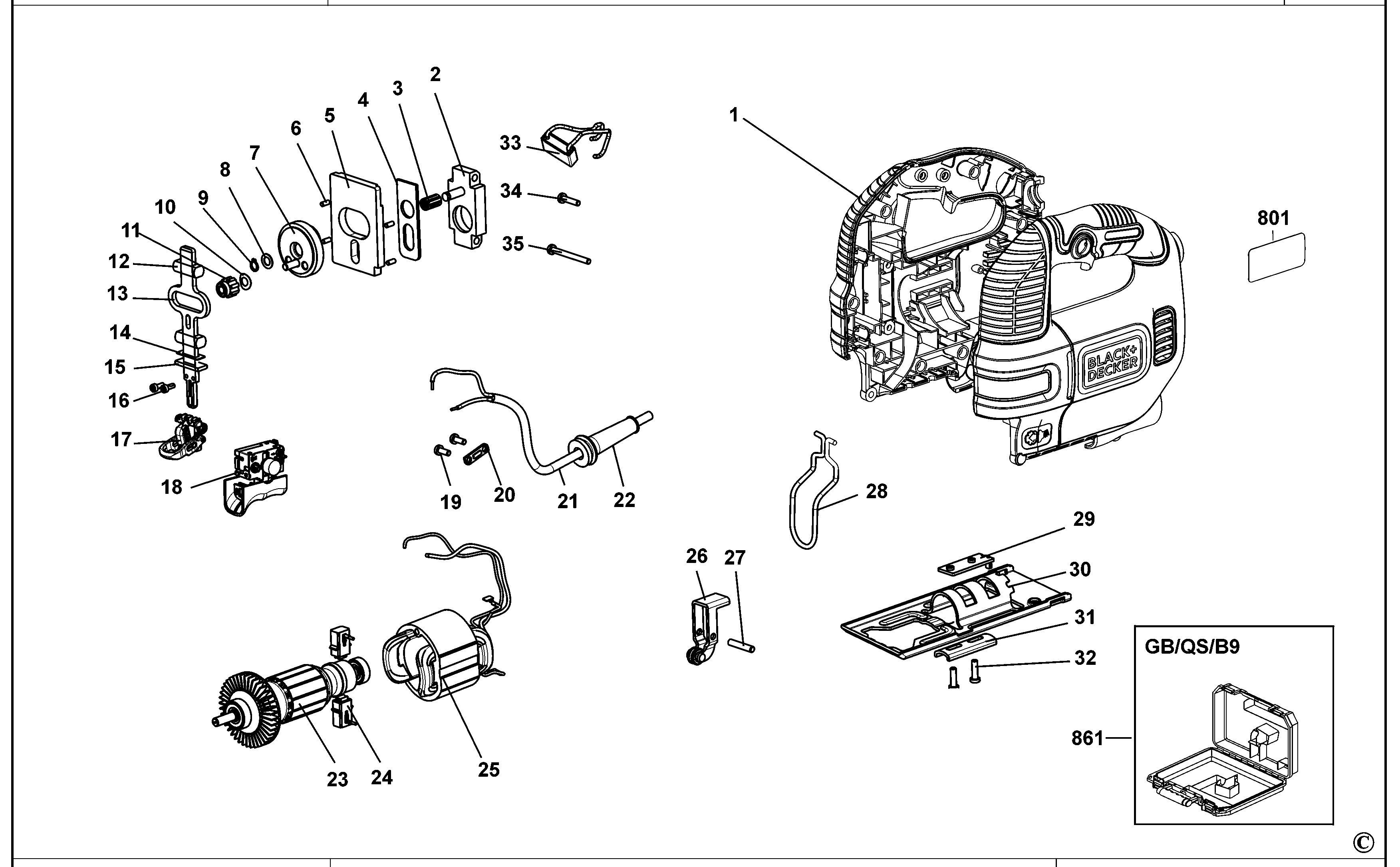

BLACK+DECKER JIGSAW (Type 1)
SKU Produs: KS701E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N814526 | 1 | BEARING BLOCK | 12,71 Lei | |
| 3 | 90512896 | 1 | BEARING NEEDLE | 4,57 Lei | |
| 4 | 90525758 | 1 | FORK | 5,21 Lei | |
| 5 | 90525759 | 1 | COUNTERWEIGHT | 15,12 Lei | |
| 6 | 90517281 | 4 | PIN | 4,57 Lei | |
| 7 | 90526099 | 1 | Gear | 21,85 Lei | |
| 8 | 582717-00 | 1 | WASHER | 4,57 Lei | |
| 9 | 90510502 | 1 | RETAINER | 4,57 Lei | |
| 10 | 823954 | 1 | SPRING WASHER | 4,57 Lei | |
| 11 | 795688-00 | 1 | ROLLER, DRIVE | 7,37 Lei | |
| 12 | 810893 | 2 | BEARING | 4,57 Lei | |
| 13 | 90514115 | 1 | RECIPRICATOR | 21,85 Lei | |
| 14 | 582948-00 | 1 | PLATE | 4,57 Lei | |
| 15 | 90532150 | 1 | FELT SEAL | 4,57 Lei | |
| 16 | 583173-00 | 2 | SCREW | 4,57 Lei | |
| 17 | 582593-00 | 1 | BLADE CLAMP | 15,12 Lei | |
| 18 | N569958 | 1 | SWITCH SA | 52,22 Lei | |
| 19 | 330019-01 | 2 | Screw M3.5 X9.5 | 4,57 Lei | |
| 20 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 21 | 330080-03 | 1 | CORDSET QS | 30,87 Lei | |
| 22 | 148481-00 | 1 | PROTECTOR | 4,57 Lei | |
| 23 | 90610770 | 1 | ARMATURE SA | 88,55 Lei | |
| 24 | 90549938 | 2 | BRUSHBOX SA | 12,71 Lei | |
| 25 | 90610771 | 1 | FIELD SA | 41,93 Lei | |
| 26 | 90584992 | 1 | SUPPORT SA | 13,85 Lei | |
| 27 | 90586527 | 1 | PIN | 4,57 Lei | |
| 28 | 90605828 | 1 | GUARD | 6,23 Lei | |
| 29 | 90512885 | 1 | PLATE LOCK | 4,57 Lei | |
| 30 | 90603421 | 1 | SHOE | 21,85 Lei | |
| 31 | 90512886 | 1 | PLATE | 4,57 Lei | |
| 32 | 90519315 | 2 | SCREW | 4,57 Lei | |
| 33 | 90610227-01 | 1 | CAPACITOR | 7,37 Lei | |
| 34 | 330019-03 | 9 | Screw M3.5X16 T15 | 4,57 Lei | |
| 35 | 330019-59 | 2 | SCREW | 4,57 Lei | |
| 801 | 90607629 | 1 | RATING LABEL | 4,7 Lei | |
| 861 | 90607903 | 1 | KIT BOX | 57,81 Lei |
