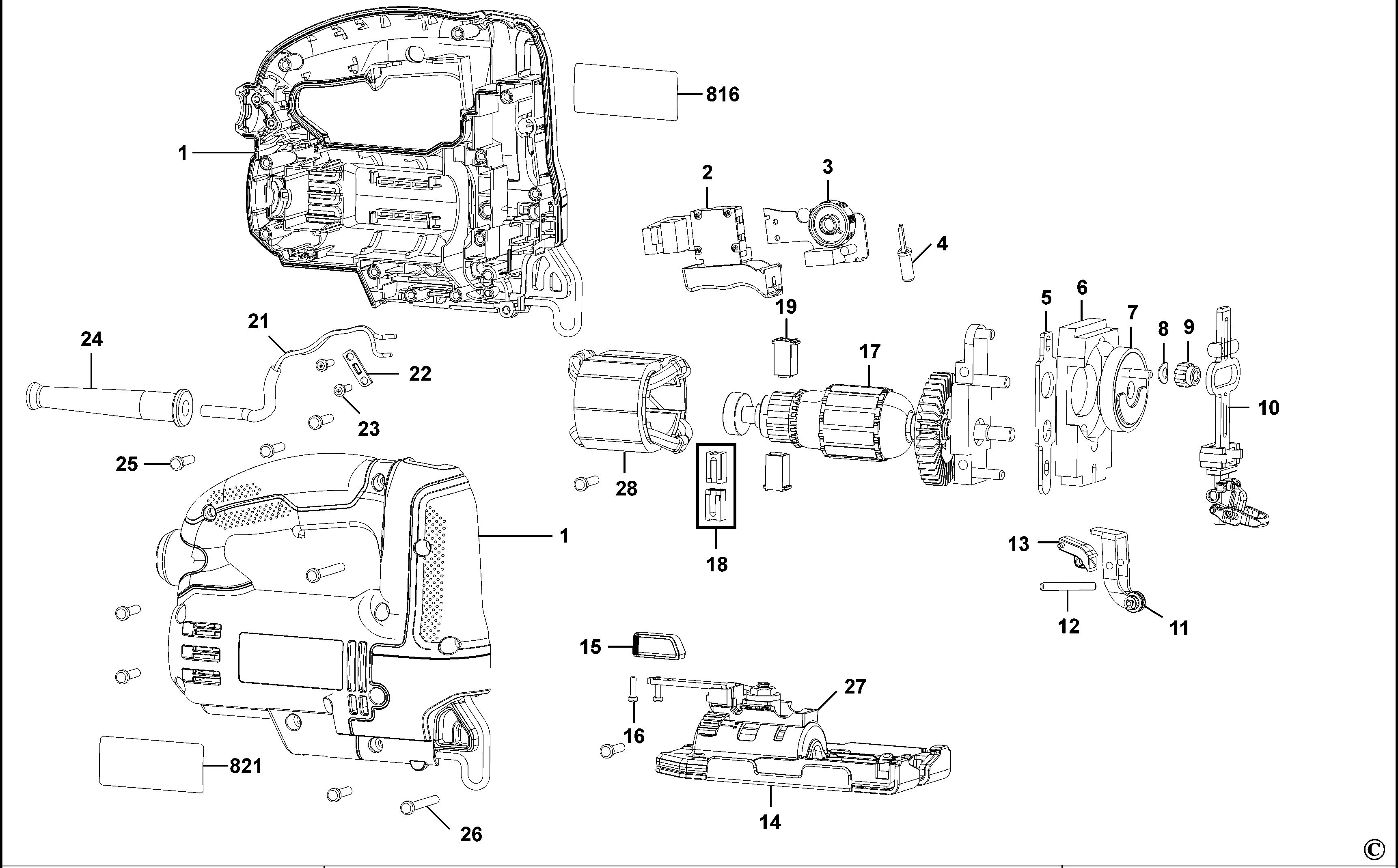

BLACK+DECKER JIGSAW (Type 1)
SKU Produs: KS600G /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 90531500 | 1 | COVER | 4,5 Lei | |
| 5 | 90542634 | 1 | FORK | 7,37 Lei | |
| 6 | 90516114 | 1 | BALANCE WEIGHT | 25,54 Lei | |
| 7 | 90583669 | 1 | GEAR SA | 41,93 Lei | |
| 8 | 823954 | 1 | SPRING WASHER | 4,57 Lei | |
| 9 | 90542604 | 1 | DRIVE ROLLER | 6,23 Lei | |
| 11 | 90578033 | 1 | BLADE SUPPORT SA | 19,95 Lei | |
| 12 | 90542862 | 1 | PIN | 4,57 Lei | |
| 13 | 90542580 | 1 | DUST PORT | 4,57 Lei | |
| 14 | 90542992 | 1 | SOLE PLATE | 13,85 Lei | |
| 15 | 90542573 | 1 | HANDLE | 4,57 Lei | |
| 16 | 330019-28 | 2 | SCREW | 4,57 Lei | |
| 18 | 90521673 | 2 | BRUSH AND SPRING | 12,71 Lei | |
| 22 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 23 | 370748 | 2 | SCREW | 4,57 Lei | |
| 24 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 25 | 330019-13 | 9 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 26 | 330019-16 | 2 | SCREW, PLASTIC THD FORM, M4*38 T20 | 4,57 Lei | |
| 27 | 90544022 | 1 | SHOE SA | 57,81 Lei | |
| 28 | 90553186 | 1 | FIELD SA | 106,98 Lei |
