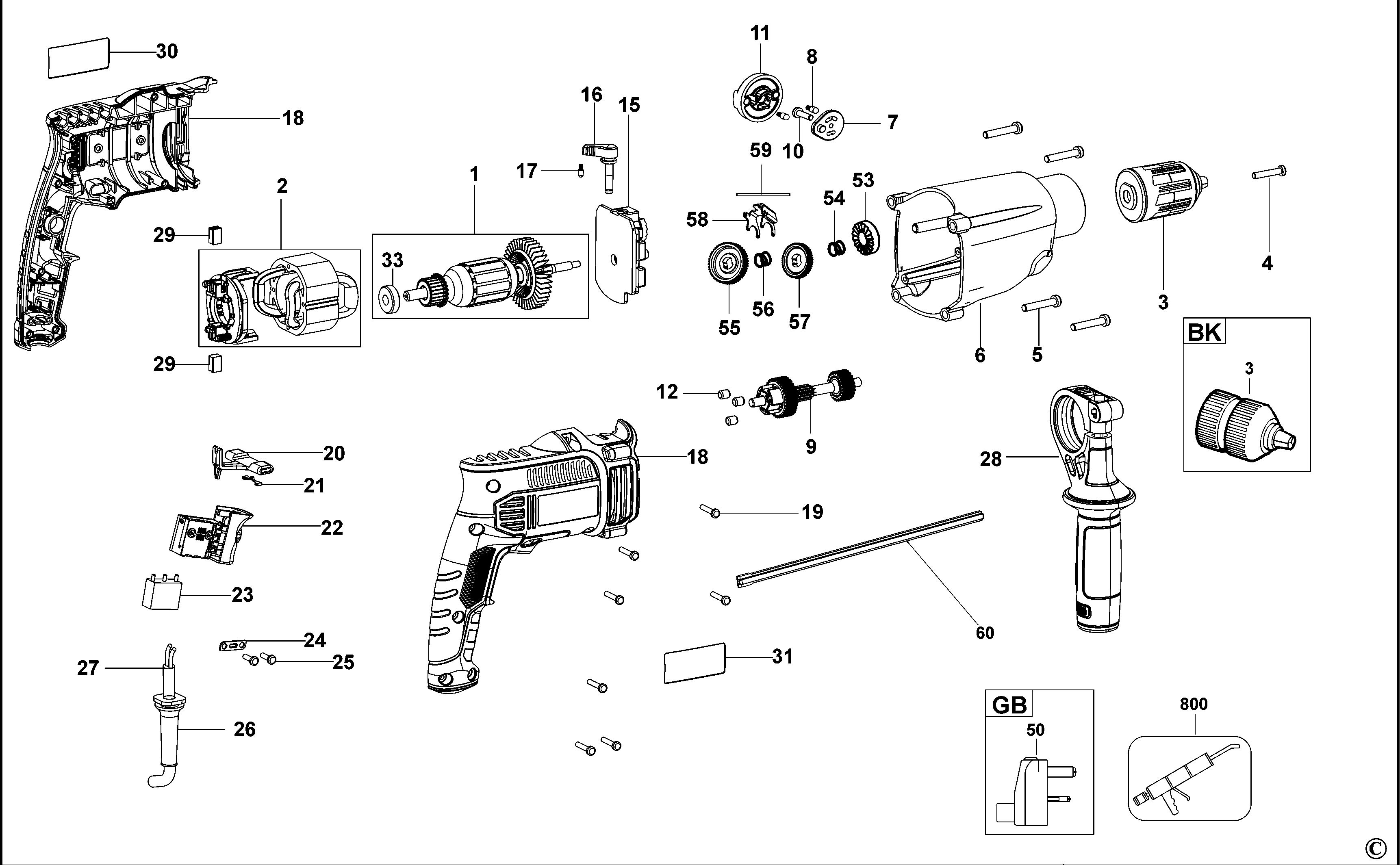

BLACK+DECKER DRILL (Type 1)
SKU Produs: KR7532 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90573977 | 1 | ARMATURE | 109,5 Lei | |
| 2 | 90573878 | 1 | FIELD SA | 80,04 Lei | |
| 3 | 629530-01L | 1 | CHUCK KEYLESS | 57,81 Lei | |
| 4 | 605256-02 | 1 | SCREW, CHUCK (1/4-28 UNF-LH) | 4,57 Lei | |
| 5 | 330019-14 | 4 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 6 | 90567591 | 1 | GEARCASE SA | 130,35 Lei | |
| 7 | 90567833 | 1 | PLATE | 5,21 Lei | |
| 8 | N403227 | 2 | INDEXING BOLT | 4,57 Lei | |
| 9 | 90567760 | 1 | GEAR AND SPINDLE SA | 57,81 Lei | |
| 10 | 330019-02 | 1 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 11 | 90567835 | 1 | KNOB | 7,37 Lei | |
| 12 | 389129-00 | 3 | PIN | 4,57 Lei | |
| 15 | 90567554 | 1 | BEARING HOUSING | 57,81 Lei | |
| 16 | 90564365 | 1 | LEVER | 12,71 Lei | |
| 17 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 18 | 90569037N | 1 | HOUSING SA | 59,2 Lei | |
| 19 | 330019-03 | 7 | Screw M3.5X16 T15 | 4,57 Lei | |
| 20 | 90568727 | 1 | LEVER | 5,21 Lei | |
| 21 | 90560638 | 1 | SPRING | 4,57 Lei | |
| 22 | 90541944N | 1 | SWITCH SA | 41,93 Lei | |
| 23 | 90563863 | 1 | CAPACITOR | 15,12 Lei | |
| 24 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 25 | 330019-01 | 2 | Screw M3.5 X9.5 | 4,57 Lei | |
| 26 | 90567404 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 27 | 90570474 | 1 | CORDSET (EURO) | 25,54 Lei | |
| 28 | 614670-00 | 1 | SIDE HANDLE | 25,54 Lei | |
| 29 | 90567970-01 | 2 | BRUSH | 5,21 Lei | |
| 30 | 90568926 | 1 | BRAND LABEL | 4,57 Lei | |
| 31 | 90568931 | 1 | RATING PLATE | 4,57 Lei | |
| 33 | 574853-08 | 1 | BEARING | 7,37 Lei | |
| 53 | 622172-00 | 1 | RATCHET | 7,37 Lei | |
| 55 | 90563338 | 1 | Gear | 21,85 Lei | |
| 56 | 90563340 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 57 | 90563339 | 1 | Gear | 17,02 Lei | |
| 58 | 90566845 | 1 | PLATE | 13,85 Lei | |
| 59 | 90563337 | 1 | GUIDE ROD | 5,21 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei |
