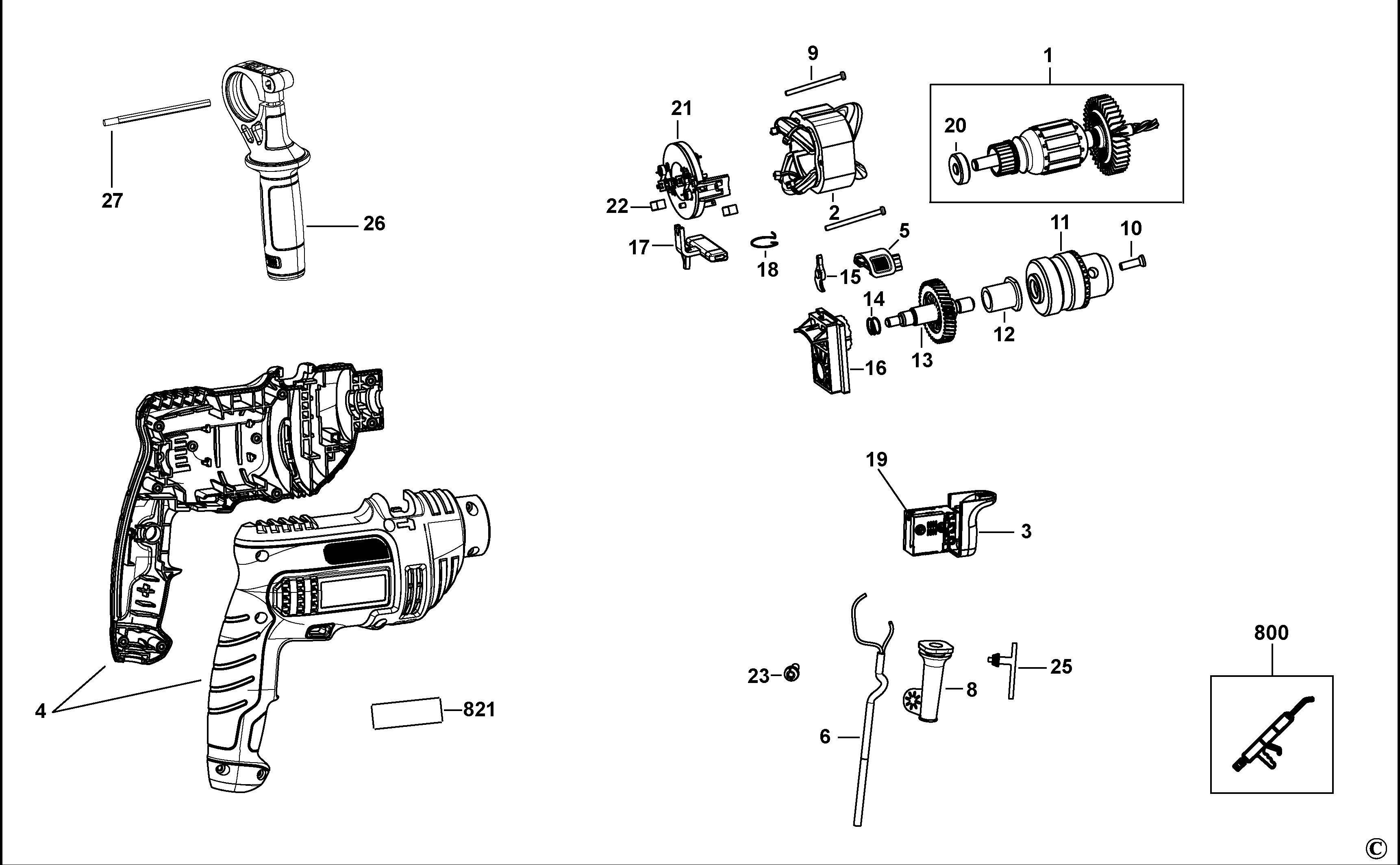

BLACK+DECKER HAMMER DRILL (Type 1)
SKU Produs: KR704REK /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90579160 | 1 | ARMATURE SA | 80,04 Lei | |
| 4 | 90547569N | 1 | SA CLAMSHELL | 70,39 Lei | |
| 5 | 90547739 | 1 | SELECTOR, HAMMER AND DRILL MODE | 4,57 Lei | |
| 8 | 770236 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 9 | 330019-63 | 1 | Screw M3.15 X42 | 4,57 Lei | |
| 10 | 805434 | 1 | Screw M5X18 | 4,57 Lei | |
| 11 | 330033-23 | 1 | CHUCK | 70,39 Lei | |
| 12 | 574297-00 | 1 | SLEEVE BEARING | 5,21 Lei | |
| 13 | 90579736 | 1 | SHAFT SA | 37,73 Lei | |
| 14 | 90542852 | 1 | SPRING | 4,57 Lei | |
| 15 | 375156-00 | 1 | THRUST PLATE | 4,57 Lei | |
| 16 | 90579738 | 1 | HOUSING SA | 30,87 Lei | |
| 17 | 90547146 | 1 | BAR DIRECTIONAL, FOR EPP HAMMER DRILL | 4,57 Lei | |
| 18 | 629167-00 | 1 | Spring coil | 4,57 Lei | |
| 19 | 90512961 | 2 | SCREW TERMINAL | 4,57 Lei | |
| 20 | 574853-08 | 1 | BEARING | 7,37 Lei | |
| 21 | 90547780 | 1 | BRUSH PLATE SA | 34,05 Lei | |
| 22 | 90579768 | 1 | BRUSH SA | 8,64 Lei | |
| 23 | 330019-03 | 8 | Screw M3.5X16 T15 | 4,57 Lei | |
| 25 | 330034-07 | 1 | Drill Chuck Key | 6,23 Lei | |
| 26 | 90547752 | 1 | SA HANDLE ASSEMBLY | 25,54 Lei | |
| 27 | 372814-00 | 1 | DEPTH STOP | 7,37 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
