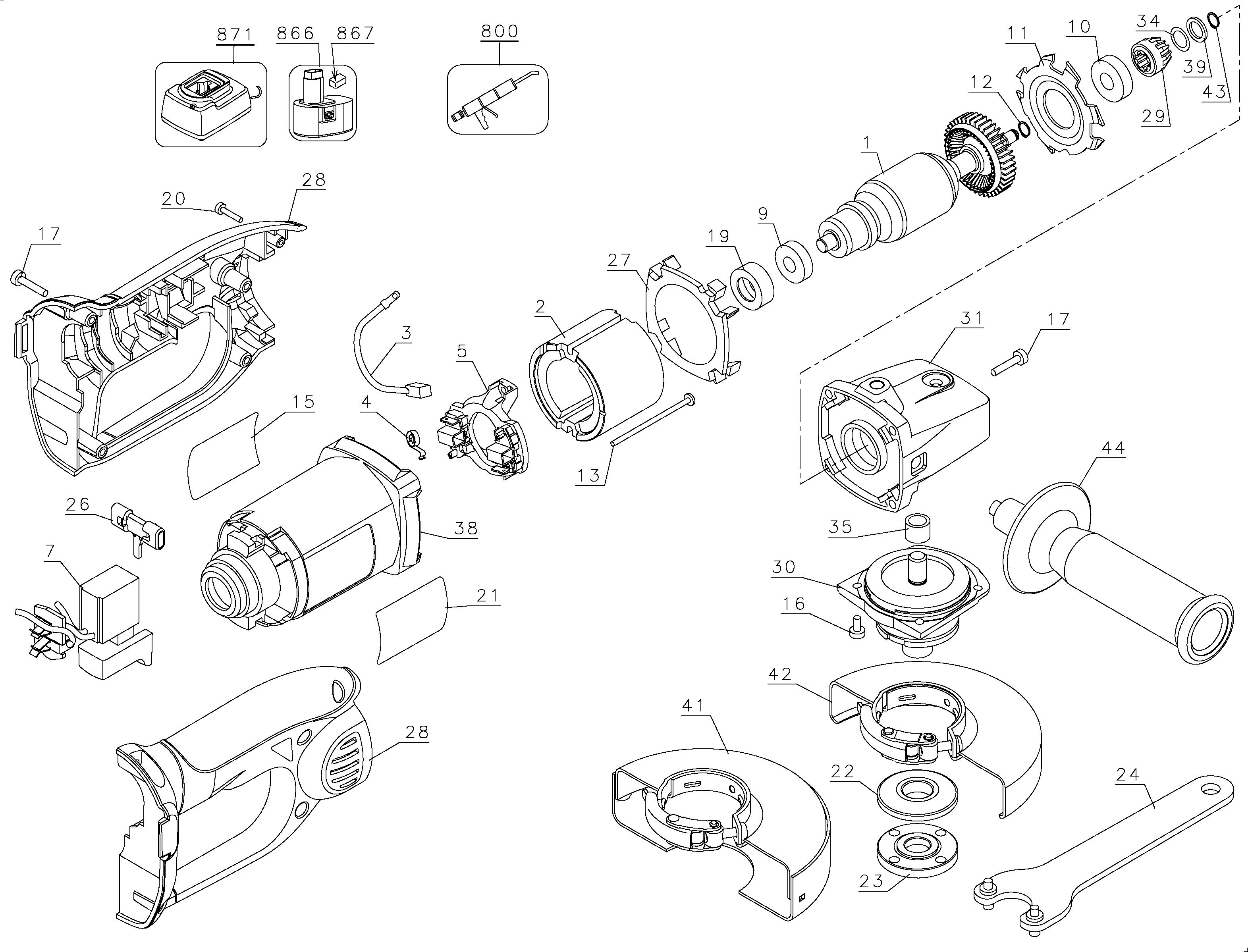

4-1/2 CUT OFF TOOL
SKU Produs: DC410N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 387558-02 | 2 | BRUSH AND LEAD | 15,12 Lei | |
| 4 | 445860-00 | 2 | SPRING, BRUSH | 4,57 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 10 | 605040-15 | 1 | BEARING, BALL | 17,02 Lei | |
| 11 | 150057-00 | 1 | BEARING | 5,21 Lei | |
| 12 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 15 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,57 Lei | |
| 16 | 146929-00 | 4 | SCREW | 4,57 Lei | |
| 17 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 19 | 445217-02 | 1 | SLEEVE | 5,21 Lei | |
| 20 | 682211-00 | 1 | SCREW, PLASTITE | 4,57 Lei | |
| 22 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 23 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 21,85 Lei | |
| 24 | 401680-00 | 1 | WRENCH DW831 | 17,02 Lei | |
| 26 | 617327-00 | 1 | LOCK BUTTON | 4,5 Lei | |
| 28 | 617400-00 | 1 | CLAMSHELL SET | 51 Lei | |
| 29 | 152487-01 | 1 | PINION | 13,85 Lei | |
| 31 | N835822 | 1 | GEARCASE SA | 96,56 Lei | |
| 34 | 050050-00 | 1 | O RING DW831 | 4,57 Lei | |
| 38 | 445857-08 | 1 | FIELD CASE | 34,8 Lei | |
| 39 | 449559-00 | 1 | WASHER | 4,57 Lei | |
| 42 | 397661-01 | 1 | GUARD | 51 Lei | |
| 43 | 38751-00 | 1 | RING | 4,57 Lei | |
| 44 | N401305 | 1 | SIDE HANDLE | 19,95 Lei | |
| 867 | 645221-00 | 2 | CAP | 4,57 Lei |
