BANDSAW
SKU Produs: P3315
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 102 | 860084-08 | 2 | SCREW,PAN.PHAB 2.9X16 UNI6954 | 4,7 Lei | |
| 104 | 860468-02 | 1 | CONNECTOR,BOX 4 POLES 4 SQMM | 17,4 Lei | |
| 105 | 860452-00 | 1 | BUSHING,CABLE D.9.5 | 4,7 Lei | |
| 106 | 860463-00 | 2 | CLAMP,CABLE(CLAW) PG 13.5 | 17,4 Lei | |
| 107 | 860462-00 | 2 | CLAMP,CABLE(NUT) PG 13.5 | 22,4 Lei | |
| 108 | 860452-01 | 1 | BUSHING,CABLE D.12.5 | 4,7 Lei | |
| 111 | 860112-06 | 1 | SPRING,PUSHER D.6XD.0.5X14 | 13 Lei | |
| 112 | 860469-00 | 1 | LOCK,BUTTON(SLIDE)SWITCH BOX | 59,2 Lei | |
| 113 | 860461-01 | 1 | TASSELLO PORTAPULS.IMP.UNIF | 59,2 Lei | |
| 114 | 860466-00 | 2 | GASKET D.5 FOR BUTTON | 4,7 Lei | |
| 115 | 860112-05 | 2 | SPRING,PUSHER D.11.3XD.0.8X16 | 13 Lei | |
| 116 | 860077-01 | 2 | RING,SPRING S.LOCK D.4 | 4,7 Lei | |
| 117 | 860464-00 | 1 | BUTTON,RED D.21 | 8,8 Lei | |
| 118 | 863301-00 | 1 | KEY+CHAIN L.60 DW3400 | 72 Lei | |
| 119 | 949785-02 | 1 | WARNING LIGHT................D | 53,4 Lei | |
| 120 | 860465-00 | 1 | BUTTON,GREEN D.21 | 4,7 Lei | |
| 121 | 860084-17 | 2 | SCREW,PAN.PHAB 3,9X32 UNI6954 | 4,7 Lei | |
| 122 | 860460-00 | 1 | BOX,SWITCH(COVER) 151X85 | 81,9 Lei | |
| 123 | 863122-01 | 1 | BOX GASKET | 20,4 Lei | |
| 125 | 860084-04 | 1 | SCREW,PAN.PHAB 3.5X13 UNI6954 | 4,7 Lei | |
| 128 | 860472-00 | 1 | CABLE,LINE MT3 3X1+PLUG CEE 7 | 94,2 Lei | |
| 129 | 860637-00 | 1 | PLUG CEE 17 3P+N+T | 72 Lei | |
| 132 | 860442-01 | 1 | BELL,FRONT END MTR CAST.3400 | 314,3 Lei | |
| 133 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 134 | 860447-00 | 1 | BUSHING,CABLE MOTOR DW 320 | 31,6 Lei | |
| 135 | 868412-01 | 1 | STATOR+HOUSING DW3401 86431303 | 1712,1 Lei | |
| 137 | 863119-00 | 4 | TIE ROD......................D | 26,1 Lei | |
| 138 | 860443-00 | 1 | BELL,REAR END MOTOR DW 250 | 59,2 Lei | |
| 139 | 860445-00 | 1 | COVER,FAN MOTOR DW 250 | 26,1 Lei | |
| 140 | 860444-00 | 1 | FAN | 20,4 Lei | |
| 141 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 142 | 868532-00 | 1 | ROTOR, DW3401 | 584,2 Lei | |
| 143 | 868392-03 | 1 | MOTOR DW738 220-240W | 3403,7 Lei | |
| 144 | 860428-00 | 2 | SCREW,CTSKPHAB 4.2X19UNI 6955 | 4,7 Lei | |
| 145 | 863263-01 | 1 | BAND SAW GUARD...............D | 148,5 Lei | |
| 146 | 949853-02 | 1 | SOCKET SCREW TYPE-A | 4,7 Lei | |
| 147 | 863797-00 | 2 | GUIDE BLOCK AT 45 BS1310 | 5,3 Lei | |
| 148 | 862183-01 | 2 | BAND SAW GUIDE BLOCKS........D | 38,6 Lei | |
| 149 | 860077-00 | 2 | RING,SPRING S.LOCK.D.10 | 4,7 Lei | |
| 150 | 949891-04 | 1 | SQUARE HEAD BUTTON SCREW | 6,4 Lei | |
| 151 | 863126-00 | 1 | PLATE FOR GUIDE ROD..........D | 34,8 Lei | |
| 152 | 862012-01 | 1 | GUIDEBLADE BAR DW738-9 A2 | 72 Lei | |
| 153 | 863795-00 | 2 | BEARING PIN | 14,2 Lei | |
| 154 | 863128-00 | 2 | BLADE SETTING RING...........D | 72 Lei | |
| 155 | 862188-00 | 1 | UPPER BAND WHEEL BRACKET.....D | 59,2 Lei | |
| 156 | 949891-02 | 1 | SCREW M6X150.................D | 22,4 Lei | |
| 157 | 949722-04 | 1 | SPRING 14X3X105..............D | 13 Lei | |
| 158 | 860073-14 | 3 | WASHER,FLAT 6.6X18X2 UNI6593 | 4,7 Lei | |
| 160 | 863471-00 | 1 | BLACK KNOB D.40X82 DW3501-3 | 72 Lei | |
| 161 | 949755-02 | 1 | BEARING REG 6/14/N | 17,4 Lei | |
| 162 | 869235-00 | 1 | WRENCH,TUBULAR HEX.13 - 10 (service) | 59,2 Lei | |
| 163 | 863287-00 | 1 | GUIDE BUSHING DW3400 | 4,7 Lei | |
| 164 | 860083-12 | 1 | NUT M6 | 4,7 Lei | |
| 165 | 863468-03 | 1 | KNOB+SCREW M.6X45 | 7,5 Lei | |
| 166 | 860092-01 | 3 | NUT,ELAST.STOP M.8 UNI 7473 | 4,7 Lei | |
| 167 | 941602-00 | 2 | WASHER D.8,4X24X2 | 4,7 Lei | |
| 168 | 860094-00 | 2 | SCREW,PAN PH/TT M.5X16UNI8112 | 4,7 Lei | |
| 169 | 863697-00 | 1 | KNOB WITH GEAR BS1310 | 20,4 Lei | |
| 170 | 860098-04 | 1 | WRENCH,HEX 6 UNI 6753 | 5,3 Lei | |
| 171 | 860074-03 | 17 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 172 | 860093-00 | 1 | SCREW,SOCKET M.8X30 UNI 5931 | 4,7 Lei | |
| 173 | 860083-18 | 2 | NUT,HEX THIN M.5 UNI 5589 | 4,7 Lei | |
| 175 | 860083-04 | 7 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 176 | 869431-00 | 1 | KIT TABLE SUPPORTS DW738,SERVICE | 148,5 Lei | |
| 177 | 860085-03 | 4 | SCREW,HEX M.8X20 UNI 5739 | 4,7 Lei | |
| 178 | 949882-03 | 1 | HEXAGONAL WRENCH L. MM.110 M | 5,3 Lei | |
| 179 | 869431-00 | 1 | KIT TABLE SUPPORTS DW738,SERVICE | 148,5 Lei | |
| 180 | 864550-02 | 1 | DRIVING BAND WHEEL-ALUM | 462,3 Lei | |
| 181 | 863467-00 | 1 | BLACK TABLE INSERT DW3501-3 | 15,5 Lei | |
| 182 | 949891-07 | 1 | CUP HEAD SCREW M8X80 | 31,6 Lei | |
| 183 | N230396 | 1 | DRIVING BELT DW738 | 90,6 Lei | |
| 184 | 860083-05 | 4 | NUT,HEX THICK M.10 UNI 5587 | 4,7 Lei | |
| 185 | 949745-01 | 2 | RING | 6,4 Lei | |
| 186 | 863299-00 | 2 | WHEEL AXLE DW3400 | 59,2 Lei | |
| 187 | 861721-06 | 2 | BEARING 6200 | 17,4 Lei | |
| 188 | N110358 | 2 | BEARING | 17,4 Lei | |
| 189 | 869175-00 | 1 | S/A TABLE FENCE DW738-9 A2 | 161,6 Lei | |
| 189 | 869177-00 | 1 | KIT ECCENTRICO+VITI+DADI DW876 A2 | 117,9 Lei | |
| 190 | 946469-00 | 2 | KNOB | 5,3 Lei | |
| 191 | 860075-00 | 2 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 192 | 862205-90 | 2 | RABBET BLOCKING PULLEY DW3400 | 10,5 Lei | |
| 194 | 862203-02 | 1 | WORKING TABLE DW738-9 A2 | 730,3 Lei | |
| 195 | 949734-05 | 1 | PIN FOR HOLE 5X14 7588 | 4,5 Lei | |
| 196 | 863257-00 | 1 | CONNECTION TABLE PLATE DW3400 | 7,5 Lei | |
| 197 | 949853-09 | 1 | GRUB SCREW 5X20 | 4,7 Lei | |
| 198 | 949760-02 | 1 | INSERT M5 | 7,5 Lei | |
| 199 | 860301-09 | 3 | SCREW,CUP SQUARE M8X60UNI5732 | 4,7 Lei | |
| 200 | 860073-04 | 2 | WASHER,FLAT 10.5X21 UNI6592 Z | 4,7 Lei | |
| 201 | 860083-05 | 2 | NUT,HEX THICK M.10 UNI 5587 | 4,7 Lei | |
| 203 | 942043-00 | 1 | SCREW | 4,7 Lei | |
| 205 | 860085-01 | 2 | SCREW,HEX M.10X35 UNI 5739 | 5,3 Lei | |
| 207 | 863468-02 | 2 | BLACK KNOB+SCREW M6X40 | 10,5 Lei | |
| 209 | 863801-00 | 1 | BRUSH | 15,5 Lei | |
| 212 | 864550-01 | 1 | DRIVEN BAND WHEEL-ALUM | 462,3 Lei | |
| 213 | 863796-00 | 2 | GUIDE BLOCK AT 90 BS1310 | 5,3 Lei | |
| 214 | 949873-01 | 2 | CORRUGATED WASHER EPL4 | 4,7 Lei | |
| 215 | 949727-03 | 1 | RETAINING RING D.22 | 4,7 Lei | |
| 216 | 860093-04 | 1 | SCREW,SOCKET M.8X40 UNI 5931 | 4,7 Lei | |
| 217 | N110358 | 2 | BEARING | 17,4 Lei | |
| 218 | 860076-03 | 1 | WASHER-TRST 10X16X1,2 DIN 988 | 4,7 Lei | |
| 220 | 862185-00 | 1 | TWO GROOVED PULLEY...........D | 123,6 Lei | |
| 223 | 860073-06 | 1 | WASHER,FLAT 10,5X18 UNI 6592 | 4,7 Lei | |

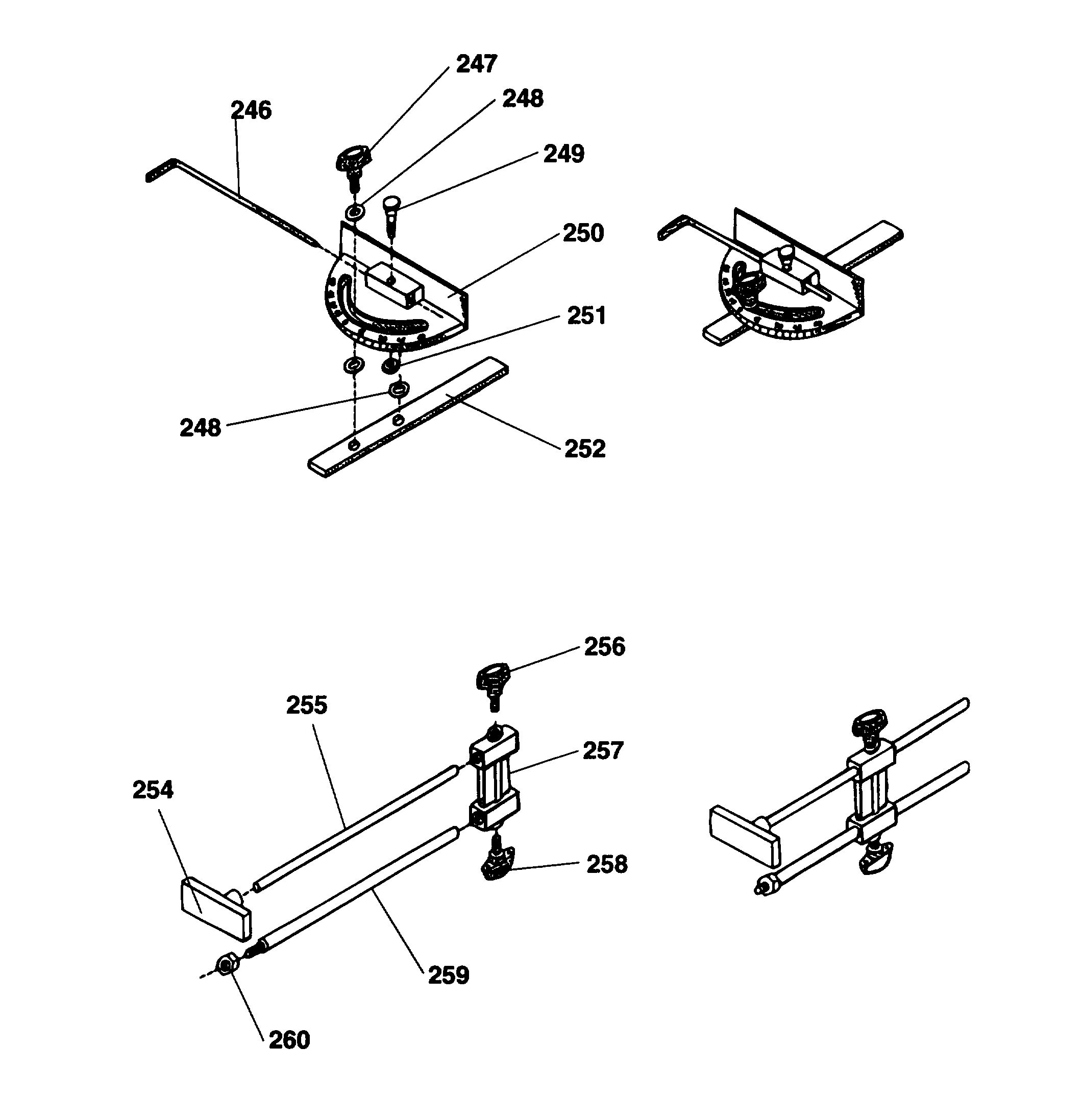

| 246 | 863844-00 | 1 | GAUGE | 31,6 Lei | |
| 247 | 861452-01 | 1 | KNOB | 4,7 Lei | |
| 248 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 250 | 862007-01 | 1 | SCALE DW738-9 INCH INCH A2 | 42,9 Lei | |
| 251 | 860083-03 | 1 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 252 | 863803-00 | 1 | BAR | 59,2 Lei | |
| 260 | 949726-07 | 1 | NUT MB10 | 4,7 Lei | |
| 846 | 864782-01 | 1 | SKIN PACK SCREWS ETC. DW3400 | 258,4 Lei |
