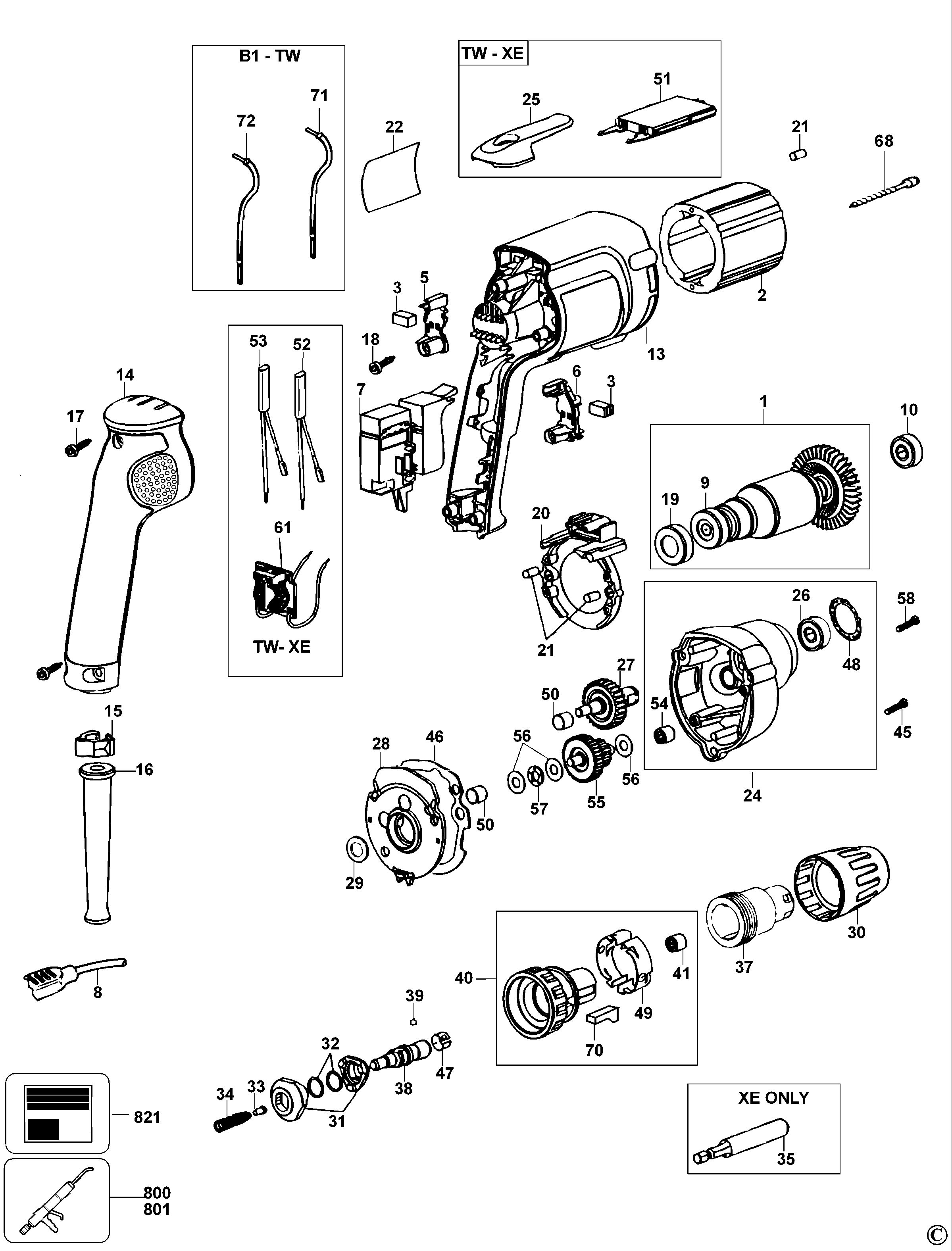

SCREWDRIVER
SKU Produs: DW266 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 9 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 10 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 14 | 176816-03 | 1 | COVER, HANDLE HOLE 35 | 40,9 Lei | |
| 16 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 17 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 18 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 19 | 389824-00 | 1 | RUBBER BOOT | 4,7 Lei | |
| 20 | 176811-00 | 1 | FAN BAFFLE | 7,5 Lei | |
| 21 | 949638-02 | 3 | SMALL RUBBER | 4,7 Lei | |
| 22 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,7 Lei | |
| 24 | 176709-00SV | 1 | GEARCASE SA | 133,4 Lei | |
| 26 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 27 | 176708-00SV | 1 | SPINDLE AND GEAR | 148,5 Lei | |
| 28 | 388761-00 | 1 | COVER, GEARCASE | 22,4 Lei | |
| 29 | 23813-00 | 1 | WASHER | 5,1 Lei | |
| 30 | 152492-01 | 1 | COLLAR, ADJUSTING | 26,1 Lei | |
| 31 | 603478-00 | 2 | CLUTCH | 24,9 Lei | |
| 31 | N737329 | 1 | CLUTCH | 31,6 Lei | |
| 32 | 089210-00 | 2 | RING, RETAINER, ROUND | 6,4 Lei | |
| 33 | 021287-00 | 1 | GUIDE | 4,7 Lei | |
| 33 | 23824200 | 1 | HANDLE | 24,9 Lei | |
| 33 | 25121501 | 1 | BRUSH | 30,1 Lei | |
| 33 | 25351500 | 1 | KEY 34X36 | 40,9 Lei | |
| 33 | 25922908 | 1 | NUT | 8,4 Lei | |
| 34 | 86211-00 | 1 | SPRING | 4,5 Lei | |
| 37 | 448862-01 | 1 | LOCATOR | 7,5 Lei | |
| 38 | 176697-00 | 1 | SPINDLE, OUTPUT | 81,9 Lei | |
| 39 | 696631-00 | 1 | BALL, STEEL | 4,7 Lei | |
| 40 | N543023 | 1 | SA CLUTCH HOUSING (SERVICE) | 81,9 Lei | |
| 41 | 448848-00 | 1 | BEARING, SLEEVE | 17,4 Lei | |
| 45 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,7 Lei | |
| 46 | 176655-00 | 1 | GASKET | 4,7 Lei | |
| 47 | 094518-00 | 1 | RETAINER | 4,7 Lei | |
| 48 | 087692-00 | 2 | RING, RETAINING, INTERNAL | 4,7 Lei | |
| 49 | 391436-00 | 2 | SPRING, DETENT | 4,7 Lei | |
| 50 | 910560 | 2 | BEARING, NEEDLE 6 * 10 * 9 | 8,8 Lei | |
| 54 | 93129-00 | 1 | BEARING DW226 | 8,4 Lei | |
| 55 | 176731-00SV | 1 | SPINDLE AND GEAR | 173,3 Lei | |
| 56 | 176732-00 | 2 | WASHER, THRUST | 4,7 Lei | |
| 57 | 143079-00 | 1 | BEARING, THRUST | 5,3 Lei | |
| 58 | 330019-16 | 1 | SCREW, PLASTIC THD FORM, M4*38 T20 | 4,7 Lei | |
| 68 | 90611830 | 2 | SCREW | 4,7 Lei | |
| 70 | 390437-01 | 2 | PLUG | 26,1 Lei | |
| 800 | 575762-02 | 1 | GREASE 100 GM TUBE | 36,8 Lei | |
| 800 | 808386-00 | 1 | GREASE 100 GMS | 190,3 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei | |
| 821 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,4 Lei |
