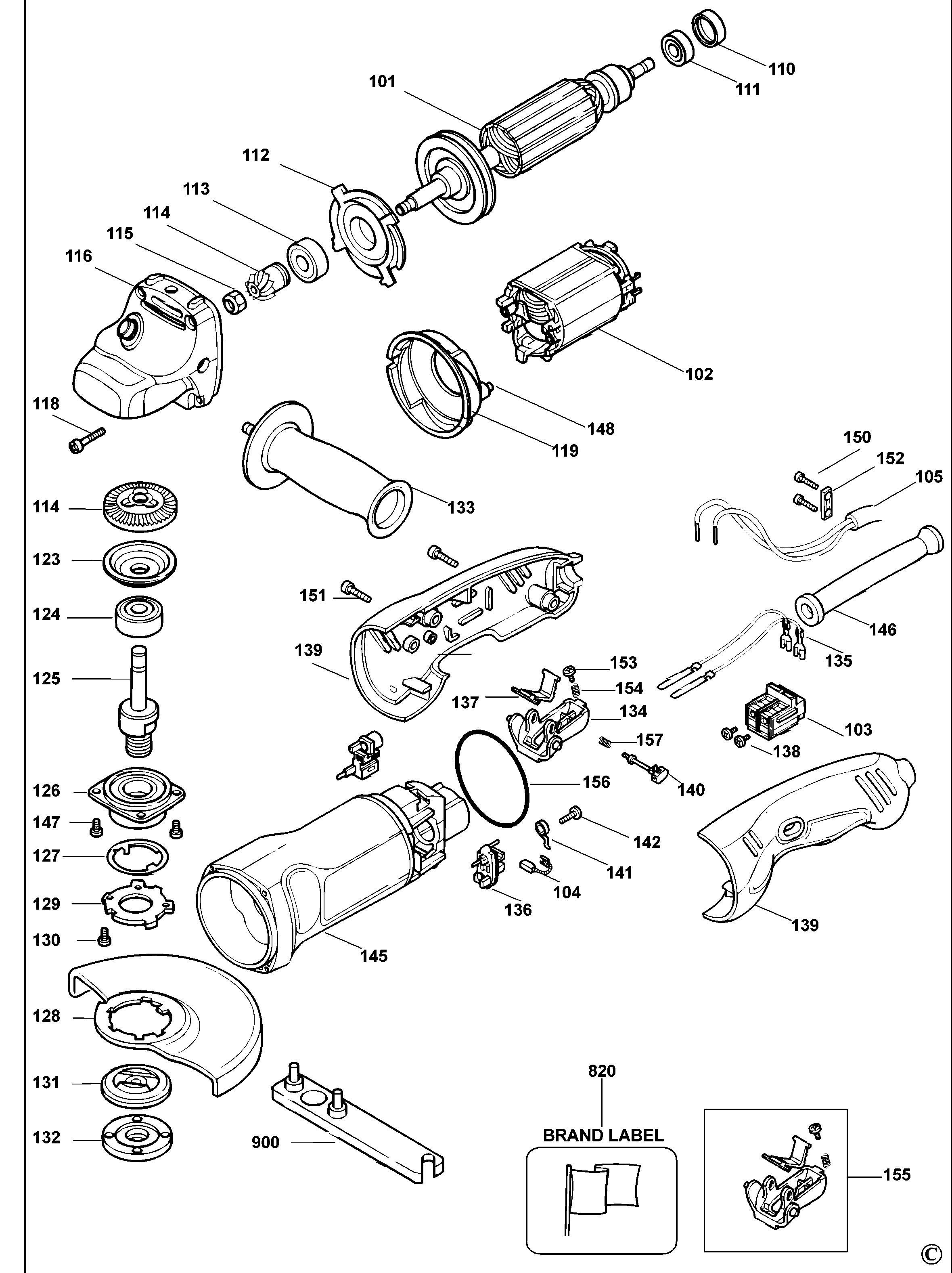

BLACK+DECKER ANGLE GRINDER Type 1
SKU Produs: KG85
Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
---|---|---|---|---|---|
103 | 945614-00 | 1 | SWITCH | 38,6 Lei | |
104 | 949647-02 | 2 | BRUSH 230V | 31,6 Lei | |
110 | 930275-00 | 1 | SLEEVE BEARING | 4,7 Lei | |
112 | 401622-01 | 1 | Fan Flange | 7,5 Lei | |
113 | N110358 | 1 | BEARING | 17,4 Lei | |
114 | 945295-02 | 1 | GEAR AND PINION | 86,4 Lei | |
115 | 945292-00 | 1 | Nut (Pinion fixing) | 4,7 Lei | |
118 | 562097-01 | 4 | SCREW | 4,7 Lei | |
119 | 401623-00 | 1 | BAFFLE | 5,3 Lei | |
123 | 945299-00 | 1 | Gear Flange | 5,3 Lei | |
124 | 605040-22 | 1 | Bearing DW801 | 17,4 Lei | |
127 | 393576-00 | 1 | Guard Spring | 5,3 Lei | |
128 | 944586-00 | 1 | GUARD | 20,4 Lei | |
132 | 560443-00 | 1 | FLANGE | 13 Lei | |
133 | 573115-00 | 1 | SIDE HANDLE | 13 Lei | |
138 | 562097-13 | 2 | SCREW | 4,7 Lei | |
141 | 562204-00 | 2 | TORSION SPRING | 4,7 Lei | |
142 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
147 | 562160-01 | 4 | Screw For Gear Case Cover (M4 x 10) | 4,5 Lei | |
148 | 949638-01 | 2 | PLUG | 4,7 Lei | |
150 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
151 | 562097-05 | 2 | Screw DW201,171 | 4,7 Lei | |
152 | 930103-00 | 1 | CORD CLAMP | 4,7 Lei |
