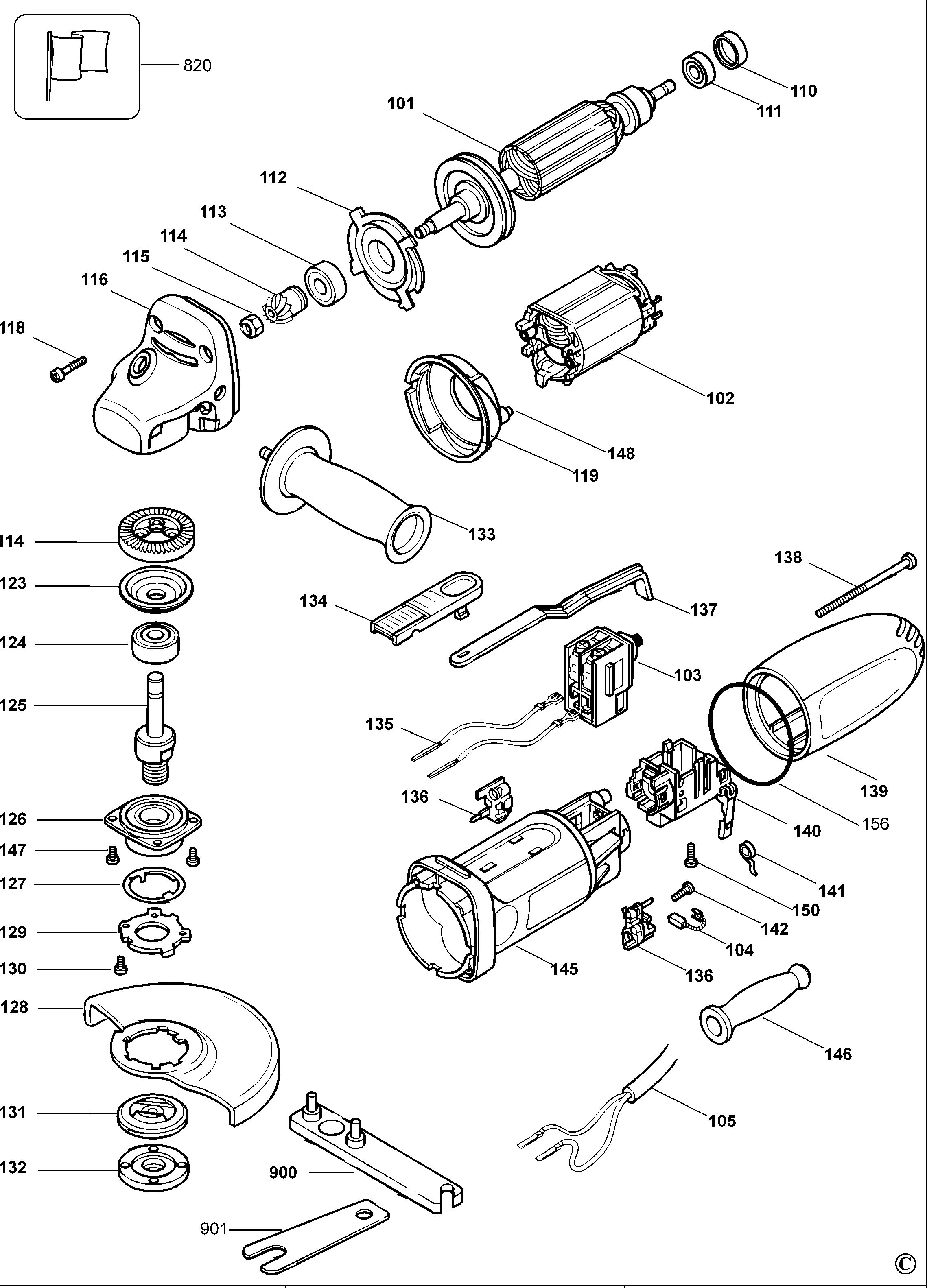

BLACK+DECKER ANGLE GRINDER (Type 1 - XE)
SKU Produs: KG70 /Type: 1 - XE
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 103 | 945614-00 | 1 | SWITCH | 38,6 Lei | |
| 110 | 930275-00 | 1 | SLEEVE BEARING | 4,7 Lei | |
| 112 | 401622-01 | 1 | Fan Flange | 7,5 Lei | |
| 113 | N110358 | 1 | BEARING | 17,4 Lei | |
| 114 | 661243-00 | 1 | GEAR AND PINION | 56,4 Lei | |
| 114 | N490505 | 1 | GEAR AND PINION | 90,6 Lei | |
| 115 | 945292-00 | 1 | Nut (Pinion fixing) | 4,7 Lei | |
| 118 | 562097-01 | 4 | SCREW | 4,7 Lei | |
| 119 | 401623-00 | 1 | BAFFLE | 5,3 Lei | |
| 123 | 945299-00 | 1 | Gear Flange | 5,3 Lei | |
| 124 | 605040-22 | 1 | Bearing DW801 | 17,4 Lei | |
| 127 | 393576-00 | 1 | Guard Spring | 5,3 Lei | |
| 132 | 947214-00 | 1 | Outter Flange KG-70 | 7,5 Lei | |
| 133 | 573115-00 | 1 | SIDE HANDLE | 13 Lei | |
| 136 | 569666-00 | 2 | SA BRUSH HOLDER | 7,2 Lei | |
| 138 | 562097-13 | 1 | SCREW | 4,7 Lei | |
| 140 | 5140000-13 | 1 | SWITCH SUPPORT | 13,5 Lei | |
| 141 | 562204-00 | 1 | TORSION SPRING | 4,7 Lei | |
| 142 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 147 | 562160-01 | 4 | Screw For Gear Case Cover (M4 x 10) | 4,5 Lei | |
| 148 | 949638-01 | 2 | PLUG | 4,7 Lei | |
| 150 | 562097-05 | 1 | Screw DW201,171 | 4,7 Lei | |
| 156 | 393799-00 | 1 | O RING | 4,7 Lei | |
| 900 | 401253-00 | 1 | WRENCH PIN | 10,5 Lei |
