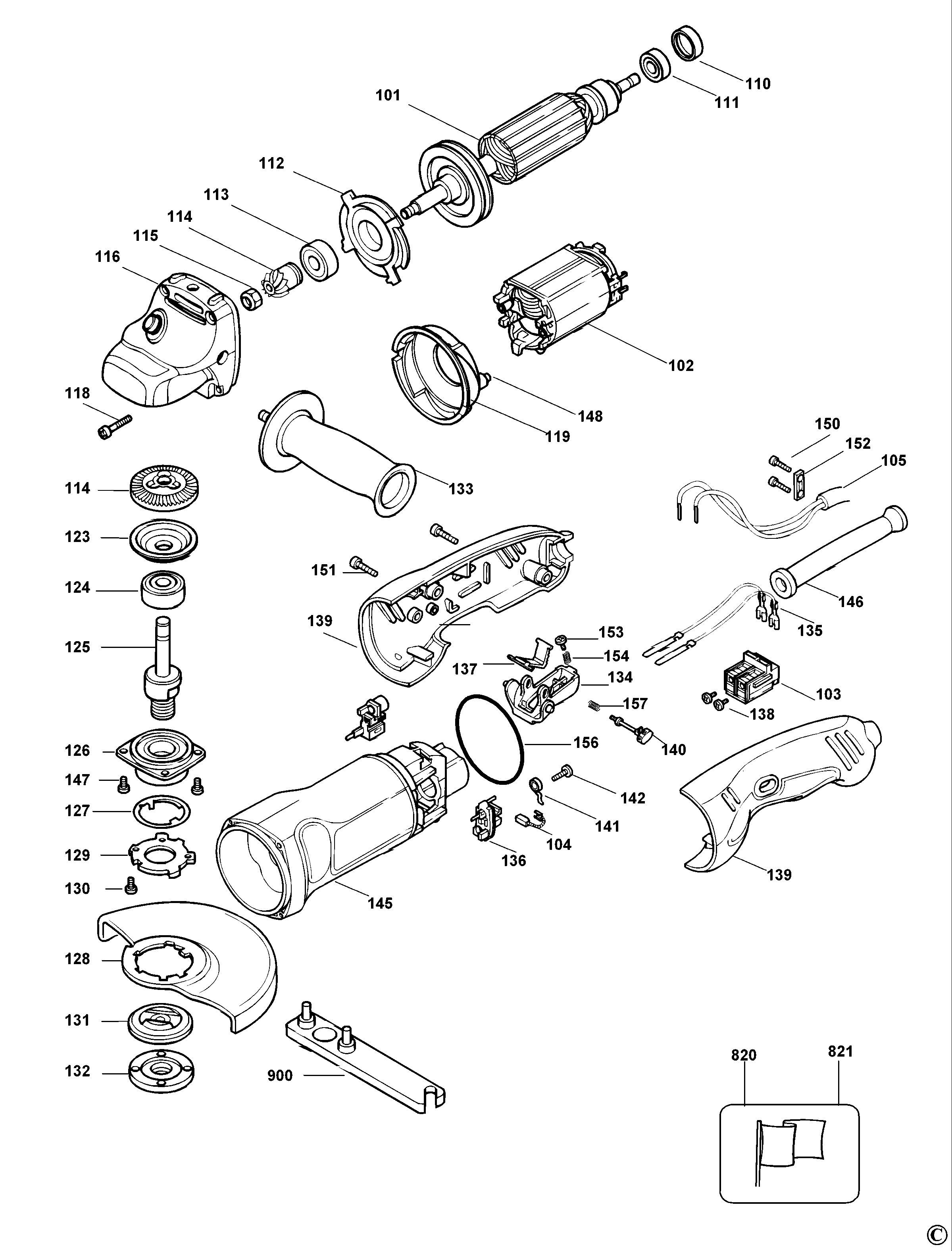

BLACK+DECKER ANGLE GRINDER (Type 3)
SKU Produs: KG100 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 104 | 949647-02 | 2 | BRUSH 230V | 31,6 Lei | |
| 110 | 930275-00 | 1 | SLEEVE BEARING | 4,7 Lei | |
| 112 | 401622-01 | 1 | Fan Flange | 7,5 Lei | |
| 115 | 945292-00 | 1 | Nut (Pinion fixing) | 4,7 Lei | |
| 118 | 562097-10 | 4 | SCREW | 4,7 Lei | |
| 119 | 401623-00 | 1 | BAFFLE | 5,3 Lei | |
| 127 | 393576-00 | 1 | Guard Spring | 5,3 Lei | |
| 133 | 573115-00 | 1 | SIDE HANDLE | 13 Lei | |
| 138 | 562097-13 | 2 | SCREW | 4,7 Lei | |
| 141 | 562204-00 | 2 | TORSION SPRING | 4,7 Lei | |
| 142 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 147 | 562097-00 | 4 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 148 | 949638-01 | 2 | PLUG | 4,7 Lei | |
| 150 | 562097-05 | 2 | Screw DW201,171 | 4,7 Lei | |
| 151 | 562097-05 | 2 | Screw DW201,171 | 4,7 Lei | |
| 152 | 930103-00 | 1 | CORD CLAMP | 4,7 Lei |
