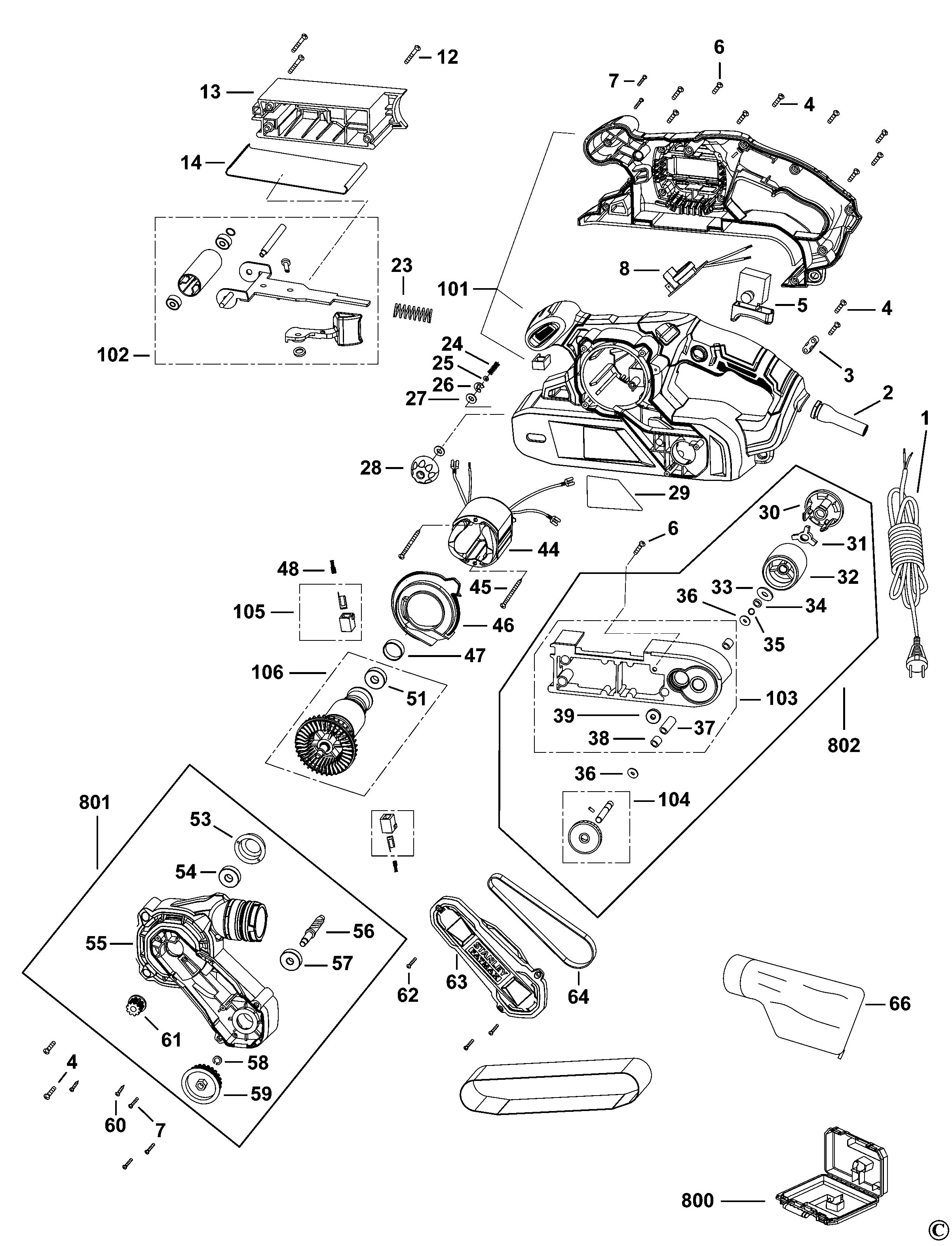

STANLEY BELT SANDER (Type 1)
SKU Produs: KFFMEW200 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004768-41 | 1 | CORDSET | 52,22 Lei | |
| 2 | 1004768-42 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 6 | 1004768-43 | 1 | SCREW | 4,57 Lei | |
| 8 | 1004768-44 | 1 | PCB | 52,22 Lei | |
| 13 | 1004768-46 | 1 | CLAMP | 30,87 Lei | |
| 14 | 1004768-47 | 1 | BASE PLATE | 15,12 Lei | |
| 27 | 5140230-91 | 1 | WASHER | 4,57 Lei | |
| 29 | 1004768-50 | 1 | RATING PLATE | 6,23 Lei | |
| 30 | 1004768-51 | 1 | COVER | 6,23 Lei | |
| 31 | 1004768-52 | 1 | NUT | 7,37 Lei | |
| 32 | 1004768-53 | 1 | ROLLER | 30,87 Lei | |
| 33 | 1004768-54 | 1 | WASHER | 4,57 Lei | |
| 34 | 5140230-88 | 1 | WASHER | 4,57 Lei | |
| 35 | 5140230-89 | 1 | RING | 4,57 Lei | |
| 36 | 1004768-60 | 1 | WASHER | 4,57 Lei | |
| 37 | 1004768-55 | 1 | SLEEVE | 4,57 Lei | |
| 38 | 1004768-56 | 2 | BEARING NEEDLE | 6,23 Lei | |
| 39 | 1004768-57 | 1 | BEARING | 12,71 Lei | |
| 44 | 1004768-61 | 1 | FIELD SA | 157,92 Lei | |
| 45 | 1004768-62 | 2 | SCREW | 4,57 Lei | |
| 46 | 1004768-63 | 1 | BAFFLE FAN | 7,37 Lei | |
| 48 | 1004768-64 | 1 | BRUSH PAIR | 13,85 Lei | |
| 51 | 1004768-69 | 1 | BEARING | 12,71 Lei | |
| 56 | 5140231-06 | 1 | PINION GEAR | 21,85 Lei | |
| 57 | 5140231-07 | 1 | BEARING | 13,85 Lei | |
| 58 | 5140231-08 | 1 | WASHER | 4,57 Lei | |
| 59 | 5140231-09 | 1 | Gear | 13,85 Lei | |
| 63 | 1004768-70 | 1 | COVER | 30,87 Lei | |
| 64 | 5140231-15 | 1 | BELT | 13,85 Lei | |
| 66 | 1004768-72 | 1 | BAG DUST | 30,87 Lei | |
| 101 | 1004768-45 | 1 | CLAMSHELL SA | 181,55 Lei | |
| 102 | 1004768-48 | 1 | FORK | 70,39 Lei | |
| 103 | 1004768-59 | 1 | SUPPORT | 70,39 Lei | |
| 104 | 5140230-92 | 1 | SHAFT SA | 34,05 Lei | |
| 105 | 1004768-65 | 1 | BRUSH HOLDER SA | 5,21 Lei | |
| 106 | 1004768-68 | 1 | ARMATURE SA | 169,36 Lei | |
| 800 | 1004769-08 | 1 | KITBOX | 240,38 Lei | |
| 801 | 1004769-06 | 1 | HANDLE SA LH | 88,55 Lei | |
| 802 | 1004769-07 | 1 | SUPPORT SA | 145,09 Lei |
