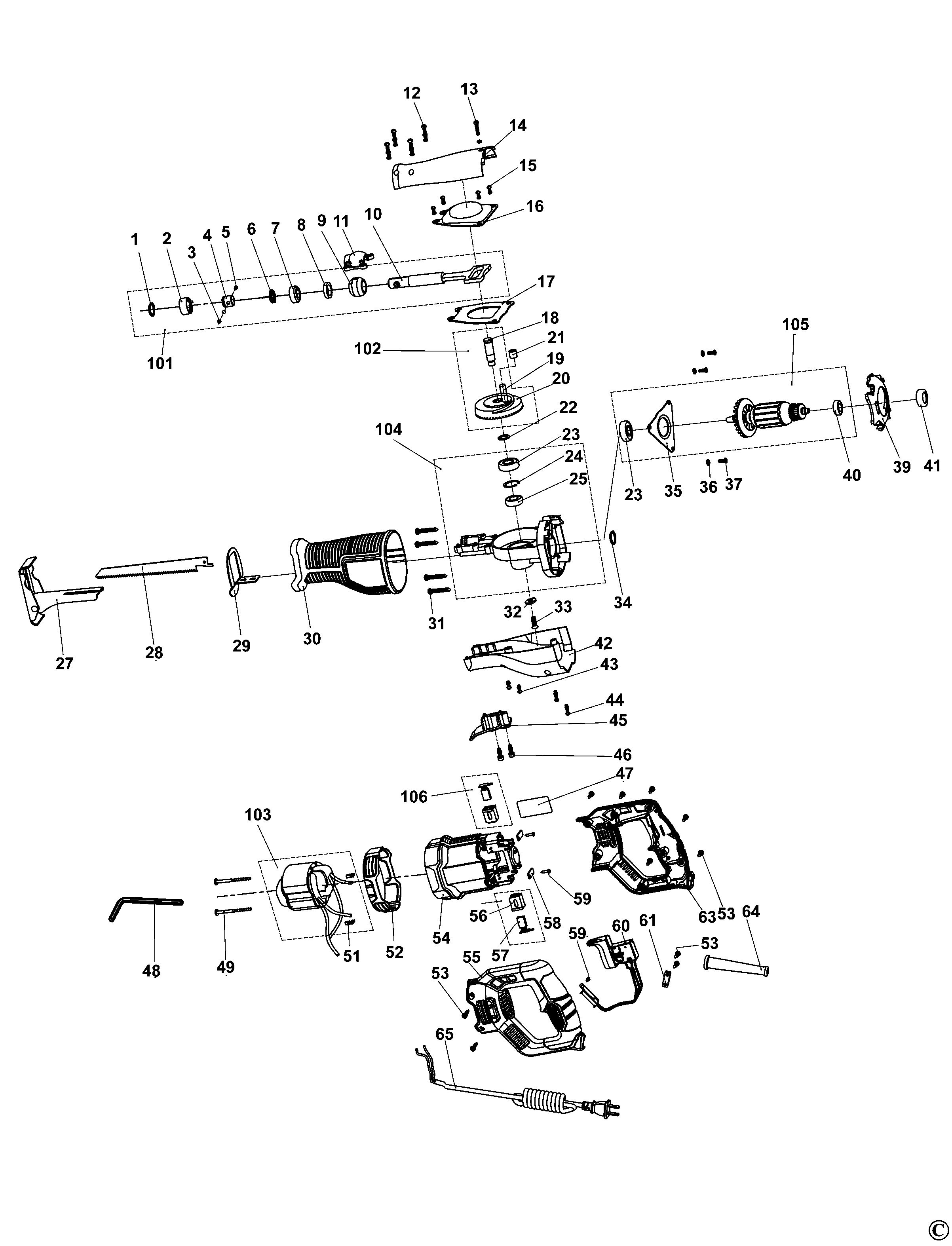

STANLEY RECIPROCATING SAW (Type 1)
SKU Produs: KFFMES360 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004715-08 | 1 | CIRCLIP | 4,57 Lei | |
| 2 | 1004715-09 | 1 | COLLAR | 10,29 Lei | |
| 3 | 1004715-10 | 1 | PIN | 4,57 Lei | |
| 4 | 1004715-11 | 1 | RING | 8,64 Lei | |
| 5 | 1004715-12 | 2 | BALL | 4,57 Lei | |
| 6 | 1004715-13 | 1 | SPRING | 4,57 Lei | |
| 7 | 1004715-14 | 1 | RING | 4,57 Lei | |
| 8 | 1004715-15 | 1 | RING | 4,57 Lei | |
| 9 | 1004715-16 | 1 | BEARING | 7,37 Lei | |
| 10 | 1004715-17 | 1 | LEVER | 41,93 Lei | |
| 11 | 5140182-91 | 1 | COVER | 4,57 Lei | |
| 12 | 5140182-92 | 4 | SCREW | 4,57 Lei | |
| 13 | 5140182-93 | 1 | SCREW | 4,57 Lei | |
| 14 | 5140182-94 | 1 | COVER | 7,37 Lei | |
| 15 | 5140182-95 | 4 | SCREW | 4,57 Lei | |
| 16 | 5140182-96 | 1 | PLATE | 15,12 Lei | |
| 17 | 5140182-97 | 1 | PLATE | 15,12 Lei | |
| 18 | 1004715-18 | 1 | SHAFT | 13,85 Lei | |
| 19 | 1004715-19 | 1 | PIN | 4,57 Lei | |
| 20 | 1004715-20 | 1 | Gear | 41,93 Lei | |
| 21 | 5140182-99 | 1 | NEEDLE | 19,95 Lei | |
| 22 | 5140183-00 | 1 | WASHER | 4,57 Lei | |
| 23 | 5140183-01 | 2 | BEARING | 25,54 Lei | |
| 24 | 5140183-02 | 1 | CIRCLIP | 4,57 Lei | |
| 25 | 5140183-03 | 1 | BEARING | 13,85 Lei | |
| 27 | 5140183-05 | 1 | SHOE | 19,95 Lei | |
| 28 | 1004715-21 | 1 | BLADE | 7,37 Lei | |
| 29 | 5140183-07 | 1 | BAFFLE | 7,37 Lei | |
| 30 | 5140183-08 | 1 | BOOT | 25,54 Lei | |
| 31 | 5140183-09 | 4 | SCREW | 4,57 Lei | |
| 32 | 5140183-10 | 1 | WASHER | 4,57 Lei | |
| 33 | 5140183-11 | 1 | SCREW | 4,57 Lei | |
| 34 | 5140183-12 | 1 | CIRCLIP | 4,57 Lei | |
| 35 | 5140183-13 | 1 | PLATE | 4,57 Lei | |
| 36 | 5140183-14 | 2 | WASHER | 4,57 Lei | |
| 37 | 5140183-15 | 2 | SCREW | 4,57 Lei | |
| 39 | 5140183-16 | 1 | DEFLECTOR | 4,57 Lei | |
| 40 | 5140183-17 | 1 | BEARING | 8,64 Lei | |
| 41 | 5140183-18 | 1 | SLEEVE | 4,57 Lei | |
| 42 | 5140183-19 | 1 | SLEEVE | 7,37 Lei | |
| 43 | 5140183-20 | 2 | SCREW | 4,57 Lei | |
| 44 | 5140183-21 | 2 | SCREW | 4,57 Lei | |
| 45 | 5140183-22 | 1 | SUPPORT | 4,57 Lei | |
| 46 | 5140183-23 | 2 | SCREW | 4,57 Lei | |
| 47 | N605752 | 1 | RATING PLATE | 6,23 Lei | |
| 48 | 5140183-25 | 1 | KEY | 4,57 Lei | |
| 49 | 5140183-26 | 2 | SCREW | 4,57 Lei | |
| 51 | 1004715-28 | 2 | TERMINAL | 4,57 Lei | |
| 52 | 5140183-27 | 1 | RING | 5,21 Lei | |
| 53 | 5140183-28 | 11 | SCREW | 4,57 Lei | |
| 54 | 1004759-31 | 1 | HOUSING | 57,81 Lei | |
| 55 | 1004759-32 | 1 | HANDLE LH | 41,93 Lei | |
| 56 | 5140183-31 | 2 | BRUSH HOLDER | 13,85 Lei | |
| 57 | 1004715-29 | 2 | BRUSH | 19,95 Lei | |
| 58 | 5140183-33 | 2 | COVER | 4,57 Lei | |
| 59 | 5140183-34 | 3 | SCREW | 4,57 Lei | |
| 60 | 1004715-30 | 1 | SWITCH | 80,04 Lei | |
| 61 | 5140183-36 | 1 | CORD CLAMP | 4,57 Lei | |
| 63 | 1004759-51 | 1 | HANDLE RH | 41,93 Lei | |
| 64 | 5140183-39 | 1 | SLEEVE | 4,57 Lei | |
| 65 | 1004715-31 | 1 | CORDSET | 52,22 Lei | |
| 101 | 5140182-90 | 1 | LEVER | 70,39 Lei | |
| 102 | 5140182-98 | 1 | GEAR SA | 52,22 Lei | |
| 103 | 1004759-33 | 1 | FIELD SA | 120,82 Lei | |
| 104 | 1004719-97 | 1 | GEARBOX SA | 70,39 Lei | |
| 105 | 1004719-98 | 1 | ARMATURE SA | 169,36 Lei | |
| 106 | 1004759-52 | 2 | BRUSH PAIR | 30,87 Lei |
