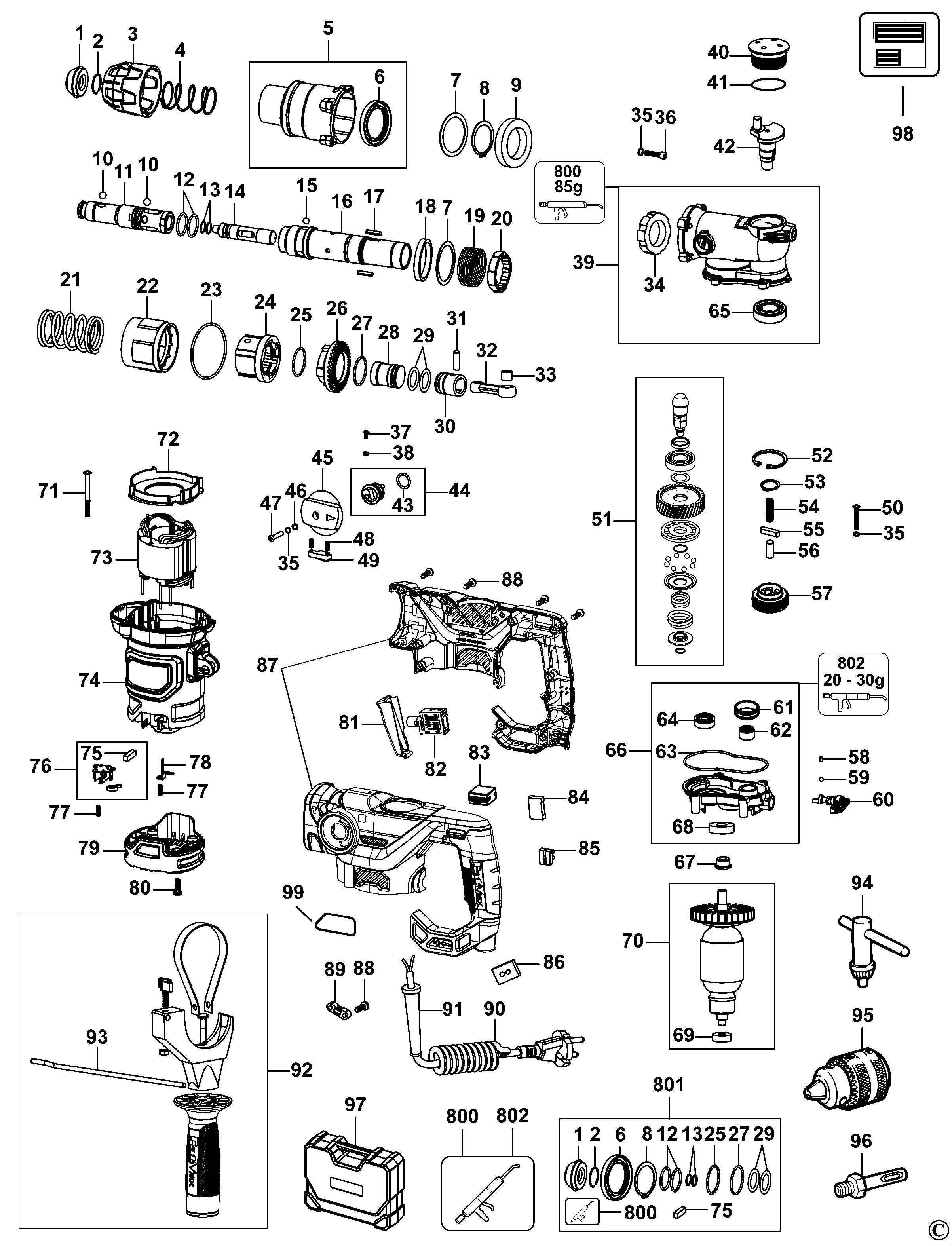

STANLEY ROTARY HAMMER DRILL (Type 1)
SKU Produs: KFFMED1250 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004691-27 | 1 | CAP | 7,37 Lei | |
| 2 | 1004691-28 | 1 | RING | 4,57 Lei | |
| 3 | 1004692-37 | 1 | COLLAR | 25,54 Lei | |
| 4 | 1004691-30 | 1 | SPRING | 6,23 Lei | |
| 5 | 1004692-38 | 1 | HOUSING SA | 70,39 Lei | |
| 6 | 1004691-32 | 1 | SEAL | 25,54 Lei | |
| 7 | 1004691-33 | 2 | WASHER | 4,57 Lei | |
| 8 | 1004691-34 | 1 | CIRCLIP | 4,57 Lei | |
| 9 | 1004691-35 | 1 | BEARING | 30,87 Lei | |
| 10 | 1004691-36 | 5 | BALL STEEL | 4,57 Lei | |
| 11 | 1004691-37 | 1 | SPINDLE | 52,22 Lei | |
| 12 | 1004691-38 | 2 | O RING | 4,57 Lei | |
| 13 | 1004691-39 | 2 | O RING | 4,57 Lei | |
| 14 | 1004691-40 | 1 | BEAT PIECE | 25,54 Lei | |
| 15 | 1004691-41 | 3 | BALL STEEL | 4,57 Lei | |
| 16 | 1004691-42 | 1 | CYLINDER | 106,98 Lei | |
| 17 | 1004691-43 | 2 | KEY | 4,57 Lei | |
| 18 | 1004691-44 | 1 | BUSH | 4,57 Lei | |
| 19 | 1004691-45 | 1 | SPRING | 52,22 Lei | |
| 20 | 1004691-46 | 1 | BUSH | 15,12 Lei | |
| 21 | 1004691-47 | 1 | SPRING | 5,21 Lei | |
| 22 | 1004691-48 | 1 | BUSH | 4,57 Lei | |
| 23 | 1004691-49 | 1 | O RING | 4,57 Lei | |
| 24 | 1004691-50 | 1 | CLUTCH | 7,37 Lei | |
| 25 | 1004691-51 | 1 | RING | 4,57 Lei | |
| 26 | 1004691-52 | 1 | Gear | 80,04 Lei | |
| 27 | 1004691-53 | 1 | RING | 4,57 Lei | |
| 28 | 1004691-54 | 1 | RAM | 21,85 Lei | |
| 29 | 1004691-55 | 2 | O RING | 7,37 Lei | |
| 30 | 1004691-56 | 1 | PISTON | 13,85 Lei | |
| 31 | 1004691-57 | 1 | PIN | 4,57 Lei | |
| 32 | 1004691-58 | 1 | CON ROD | 25,54 Lei | |
| 33 | 1004691-59 | 1 | BEARING | 4,57 Lei | |
| 34 | 1004691-60 | 1 | BUSH | 8,64 Lei | |
| 35 | 1004691-61 | 9 | WASHER SPRING | 4,57 Lei | |
| 36 | 1004691-62 | 4 | SCREW | 4,57 Lei | |
| 37 | 1004691-63 | 1 | SCREW | 4,57 Lei | |
| 38 | 1004691-64 | 1 | WASHER SPRING | 4,57 Lei | |
| 39 | 1004691-65 | 1 | CRANKCASE | 80,04 Lei | |
| 40 | 1004691-66 | 1 | COVER | 7,37 Lei | |
| 41 | 1004691-67 | 1 | O RING | 4,57 Lei | |
| 42 | 1004691-68 | 1 | CRANKSHAFT | 30,87 Lei | |
| 43 | 1004691-69 | 1 | O RING | 4,57 Lei | |
| 44 | 1004691-70 | 1 | LEVER SA | 15,12 Lei | |
| 45 | 1004691-71 | 1 | KNOB | 7,37 Lei | |
| 46 | 1004691-72 | 1 | WASHER 5 MM | 4,57 Lei | |
| 47 | 1004691-73 | 1 | SCREW | 4,57 Lei | |
| 48 | 1004691-74 | 2 | SPRING | 4,57 Lei | |
| 49 | 1004757-20 | 1 | BUTTON | 4,57 Lei | |
| 50 | 1004691-76 | 4 | SCREW | 4,57 Lei | |
| 51 | 1004691-77 | 1 | GEAR AND PINION SA | 52,22 Lei | |
| 52 | 1004691-80 | 1 | CIRCLIP | 4,57 Lei | |
| 53 | 1004691-81 | 1 | CIRCLIP | 4,57 Lei | |
| 54 | 1004691-82 | 1 | SPRING | 4,57 Lei | |
| 55 | 1004691-83 | 2 | KEY | 4,57 Lei | |
| 56 | 1004691-86 | 1 | PIN | 4,57 Lei | |
| 57 | 1004691-84 | 1 | Gear | 30,87 Lei | |
| 58 | 1004691-90 | 1 | STOP RUBBER | 4,57 Lei | |
| 59 | 1004691-91 | 1 | BALL STEEL 4MM | 4,57 Lei | |
| 60 | 1004692-39 | 1 | LEVER | 13,85 Lei | |
| 61 | 1004691-85 | 1 | BUSH | 6,23 Lei | |
| 62 | 1004691-87 | 1 | BEARING NEEDLE | 6,23 Lei | |
| 63 | 1004691-89 | 1 | SEAL | 8,64 Lei | |
| 64 | 1004691-78 | 1 | BEARING | 10,29 Lei | |
| 65 | 1004691-79 | 1 | BEARING | 17,02 Lei | |
| 66 | 1004691-92 | 1 | GEARCASE COVER SA | 41,93 Lei | |
| 67 | 1004691-88 | 1 | CAP | 4,57 Lei | |
| 68 | 1004691-94 | 1 | BEARING | 30,87 Lei | |
| 69 | 1004691-96 | 1 | BEARING | 19,95 Lei | |
| 70 | 1004691-95 | 1 | ARMATURE SA | 240,38 Lei | |
| 71 | 1004691-97 | 2 | SCREW | 4,57 Lei | |
| 72 | 1004692-40 | 1 | FAN COVER | 7,37 Lei | |
| 73 | 1004692-41 | 1 | FIELD | 145,09 Lei | |
| 74 | 1004757-21 | 1 | HOUSING MOTOR | 169,36 Lei | |
| 75 | 1004692-02 | 1 | BRUSH AND LEAD | 17,02 Lei | |
| 76 | 1004692-03 | 2 | BRUSH AND HOLDER SA | 30,87 Lei | |
| 77 | 1004692-04 | 5 | SCREW | 4,57 Lei | |
| 78 | 1004692-05 | 1 | CONTACT | 4,57 Lei | |
| 79 | 1004692-43 | 1 | MOTOR COVER | 25,54 Lei | |
| 80 | 1004692-07 | 4 | SCREW | 4,57 Lei | |
| 81 | 1004692-09 | 1 | TRIGGER | 5,21 Lei | |
| 82 | 1004692-10 | 1 | SWITCH | 80,04 Lei | |
| 83 | 1004692-11 | 1 | POTENTIOMETER SA | 80,04 Lei | |
| 84 | 1004692-13 | 1 | CAPACITOR | 5,21 Lei | |
| 85 | 1004692-12 | 1 | TERMINAL BLOCK | 4,57 Lei | |
| 86 | 1004692-19 | 1 | LED | 19,95 Lei | |
| 87 | 1004757-22 | 1 | CLAMSHELL SET | 289,04 Lei | |
| 88 | 1004692-15 | 14 | SCREW | 7,37 Lei | |
| 89 | 1004692-14 | 1 | CORD CLAMP | 4,57 Lei | |
| 90 | 1004757-24 | 1 | CORDSET | 157,92 Lei | |
| 91 | 1004692-16 | 1 | CORD PROTECTOR | 6,23 Lei | |
| 92 | 1004692-47 | 1 | HANDLE SIDE SA | 70,39 Lei | |
| 93 | 1004692-21 | 1 | DEPTH ROD | 8,64 Lei | |
| 97 | 1004757-25 | 1 | KITBOX | 120,82 Lei | |
| 98 | 1004757-26 | 1 | RATING PLATE | 6,23 Lei | |
| 99 | 1004757-28 | 1 | BRAND LABEL | 6,23 Lei | |
| 800 | 1004692-23 | 1 | GREASE | 17,02 Lei | |
| 801 | 1004692-25 | 1 | SERVICE KIT | 52,22 Lei | |
| 802 | 1004692-24 | 1 | GREASE | 10,29 Lei |
