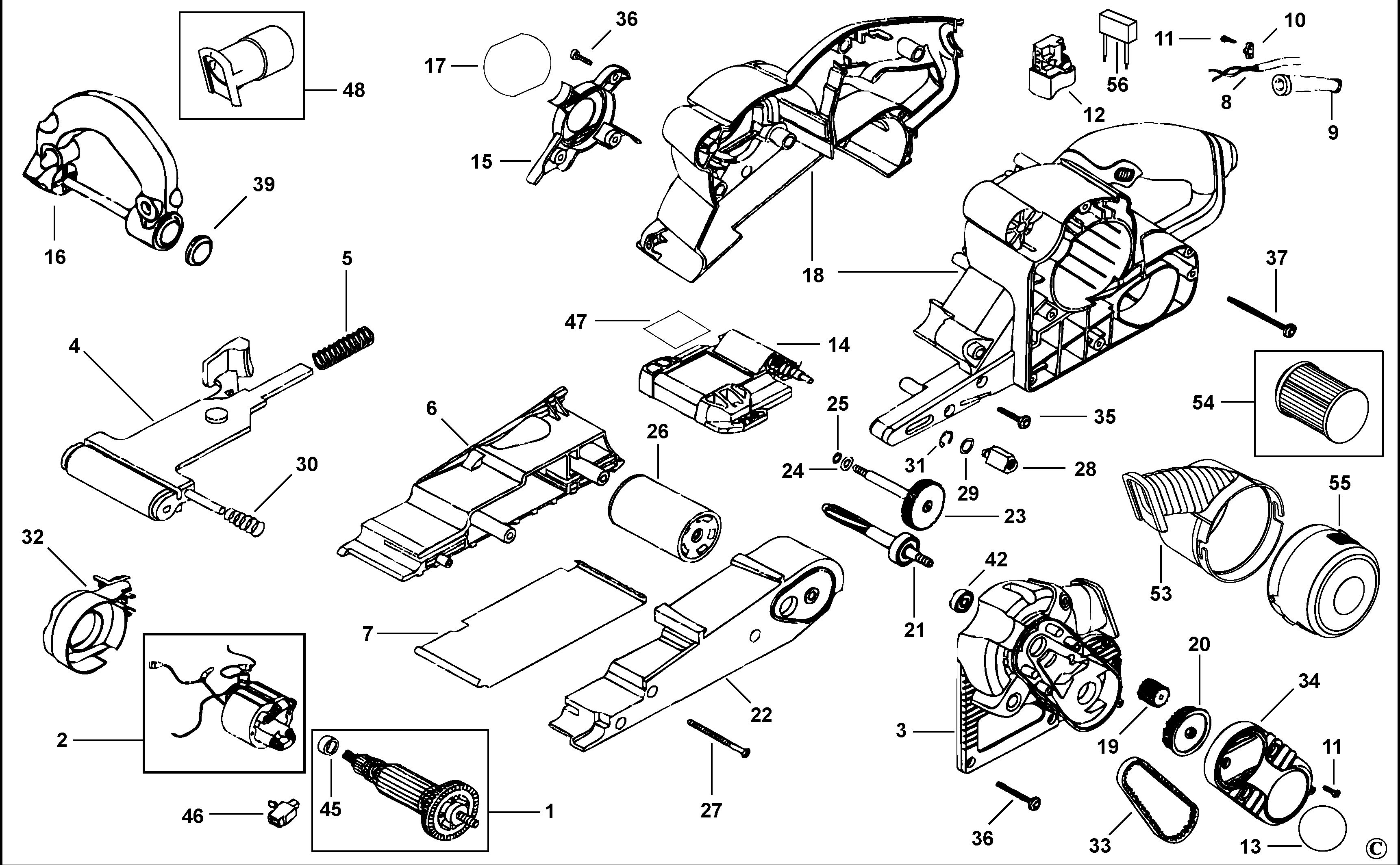

BLACK+DECKER BELT SANDER (Type 3)
SKU Produs: KA88 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90568238 | 1 | ARMATURE 240V | 120,82 Lei | |
| 2 | 90568239 | 1 | FIELD 240V | 70,39 Lei | |
| 3 | 587202-00 | 1 | COVER | 25,54 Lei | |
| 4 | 589384-00N | 1 | SA CARRIER W/FRONT ROLLER | 52,22 Lei | |
| 5 | 587248-00 | 1 | SPRING | 4,57 Lei | |
| 6 | 587207-01 | 1 | COVER | 15,12 Lei | |
| 7 | 587249-00 | 1 | SANDING PLATE | 13,85 Lei | |
| 8 | 330080-03 | 1 | CORDSET QS | 30,87 Lei | |
| 9 | 148481-00 | 1 | PROTECTOR | 4,57 Lei | |
| 10 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 11 | 330065-06 | 5 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 12 | 90564460 | 1 | SWITCH FA3 DS321 | 25,54 Lei | |
| 13 | 90567536 | 1 | RATING PLATE | 4,57 Lei | |
| 14 | 90568246 | 1 | COVER SA | 21,85 Lei | |
| 15 | 587209-01 | 1 | COVER | 10,29 Lei | |
| 16 | 90568242 | 1 | HANDLE SA | 25,54 Lei | |
| 17 | 477368-00 | 1 | BRAND LABEL | 5,21 Lei | |
| 18 | 90568240 | 1 | CLAMSHELL SET | 88,55 Lei | |
| 19 | 587261-00 | 1 | DRIVE PULLEY | 7,37 Lei | |
| 20 | 587262-00 | 1 | DRIVE PULLEY | 13,85 Lei | |
| 20 | 90511221 | 1 | PULLEY | 7,37 Lei | |
| 21 | 588489-00 | 1 | SHAFT SA | 30,87 Lei | |
| 21 | 90564691 | 1 | SHAFT SA | 25,54 Lei | |
| 22 | 90566479 | 1 | MOUNTING BRACKET | 70,39 Lei | |
| 23 | 588477-00 | 1 | Drive Shaft | 25,54 Lei | |
| 24 | 587230-00 | 1 | WASHER THRUST | 4,57 Lei | |
| 25 | 587229-00 | 1 | WASHER THRUST | 4,57 Lei | |
| 26 | 90514806 | 1 | DRIVE ROLLER | 25,54 Lei | |
| 27 | 330019-64 | 2 | Screw M3.12X52 | 4,57 Lei | |
| 28 | 587224-00 | 1 | KNOB SA | 10,29 Lei | |
| 29 | 148902-00 | 1 | WASHER | 15,12 Lei | |
| 30 | 477505-00 | 1 | SPRING | 4,57 Lei | |
| 31 | 122198-00 | 1 | RETAINING RING | 4,57 Lei | |
| 32 | 587203-01 | 1 | COVER | 6,23 Lei | |
| 33 | 587263-00 | 1 | BELT | 21,85 Lei | |
| 34 | 587204-01 | 1 | COVER BELT | 37,73 Lei | |
| 35 | 330065-16 | 3 | SCREW | 4,57 Lei | |
| 36 | 330065-08 | 12 | SCREW M4X18 | 4,57 Lei | |
| 37 | 330065-12 | 2 | SCREW | 4,57 Lei | |
| 39 | 590465-00 | 1 | INSERT | 4,57 Lei | |
| 42 | 90566481 | 1 | BEARING | 7,37 Lei | |
| 45 | 90532404 | 1 | BALL BEARING 608-2RS | 7,37 Lei | |
| 46 | 90568241 | 1 | BRUSH PAIR 230V SA | 30,87 Lei | |
| 47 | 587266-00 | 1 | LABEL | 4,57 Lei | |
| 48 | 587843-00 | 1 | VACUUM ADAPTOR | 7,37 Lei | |
| 53 | 90502679 | 1 | LID SA | 30,87 Lei | |
| 54 | 90501441N | 1 | FILTER | 25,54 Lei | |
| 55 | 90501537 | 1 | BOWL | 13,85 Lei | |
| 56 | 579302-02 | 1 | CAPACITOR | 12,71 Lei |
