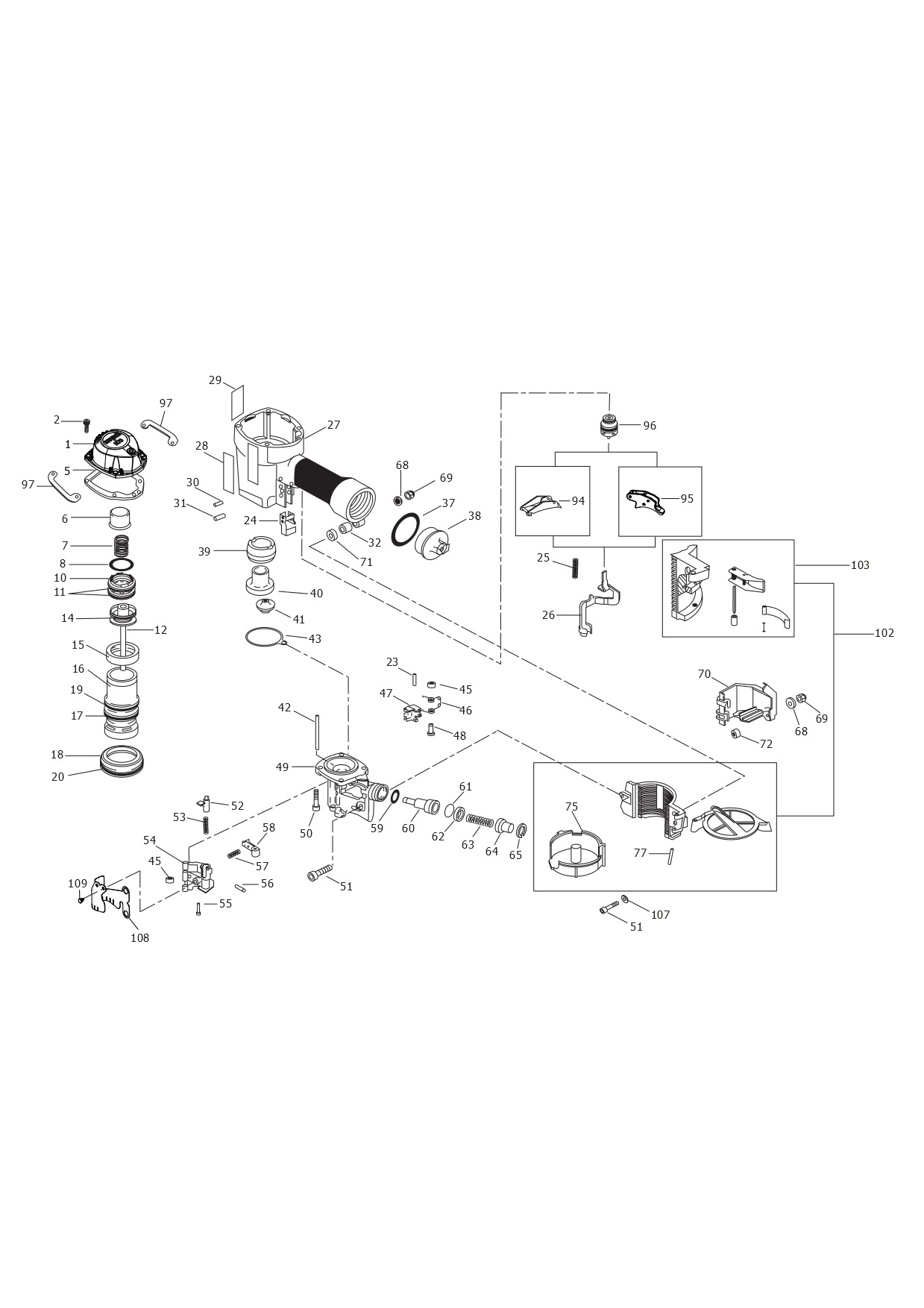

BOSTITCH COIL NAILER (Type 1)
SKU Produs: IC70-1-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | CN31652 | 1 | CAP,CYLINDER | 218,19 Lei | |
| 2 | MSC6100-30 | 4 | SCREW,SHCS,M6X1.00X30 | 5,15 Lei | |
| 5 | 9R199852 | 1 | SEAL | 16,49 Lei | |
| 6 | N70153 | 1 | PISTON STOP | 6,09 Lei | |
| 7 | 101256 | 1 | SPRING | 5,15 Lei | |
| 8 | MRG041630 | 1 | O-RING,1.638X.118 | 16,49 Lei | |
| 10 | N80337 | 1 | HEAD VALVE PISTON | 79,8 Lei | |
| 11 | 851438 | 1 | O-RING,2.236X.115 | 21,11 Lei | |
| 12 | 102630 | 1 | ASSEMBLY,DRIVER/PISTON | 358,05 Lei | |
| 14 | 851439 | 1 | O-RING,1.689X.190 | 6,09 Lei | |
| 15 | N70155 | 1 | CYLINDER SEAL | 8,51 Lei | |
| 16 | N70171 | 1 | SLEEVE,CYLINDER | 99,86 Lei | |
| 17 | N80169 | 1 | SEAL,CHECK | 5,15 Lei | |
| 18 | N80168 | 1 | RING,CYLINDER | 12,5 Lei | |
| 19 | 101236 | 1 | O-RING,2.250X.115 | 5,15 Lei | |
| 20 | MRG084431 | 1 | O-RING,3.323X.122 | 8,51 Lei | |
| 23 | MPP030016 | 1 | PIN,SPIRAL,M3X16 | 5,15 Lei | |
| 24 | N70145 | 1 | ARM GUIDE | 6,09 Lei | |
| 25 | 102080 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 26 | N70168 | 1 | ARM CONTACT FLARED | 208,74 Lei | |
| 27 | 110005 | 1 | FRAME | 248,33 Lei | |
| 28 | 112767 | 1 | LABEL,BOSTITCH | 5,15 Lei | |
| 29 | 9R227894 | 1 | LABEL | 6,09 Lei | |
| 30 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 31 | 102549 | 1 | PIN,SPECIAL SPIRAL | 5,15 Lei | |
| 32 | N70143 | 1 | BUSHING - RUBBER | 5,15 Lei | |
| 37 | MRG049431 | 1 | O-RING,2.343X.118 | 5,15 Lei | |
| 38 | N70167 | 1 | END CAP, 1/4 | 58,17 Lei | |
| 39 | N70156 | 1 | BUMPER - A | 47,78 Lei | |
| 40 | N70157 | 1 | BUMPER - B | 28,14 Lei | |
| 41 | N80130 | 1 | DRIVER GUIDE | 14,07 Lei | |
| 42 | N70164 | 1 | PIN,SPECIAL | 16,49 Lei | |
| 43 | 107834 | 1 | SEAL,NOSE | 5,15 Lei | |
| 45 | 854004 | 1 | WASHER | 5,15 Lei | |
| 46 | 854023 | 1 | SPRING,TORSION | 5,15 Lei | |
| 47 | 167087 | 1 | PAWL, FEED | 99,86 Lei | |
| 48 | N50087 | 1 | PIN,SPECIAL(STEP) | 5,15 Lei | |
| 49 | 167086 | 1 | NOSE | 411,39 Lei | |
| 50 | MSC8125-28 | 4 | SCREW, SHCS M8X28MM METRI | 5,15 Lei | |
| 51 | MSC6100-40 | 1 | SCREW,SOC. HD. CAP M6X1.0 | 5,15 Lei | |
| 52 | N70150 | 1 | LATCH DOOR | 47,78 Lei | |
| 53 | 101408 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 54 | N70122 | 1 | DOOR MACHINING | 263,03 Lei | |
| 55 | N70140 | 1 | PIN SPECIAL | 5,15 Lei | |
| 56 | MPP030012 | 1 | PIN, SPIROL | 5,15 Lei | |
| 57 | 854011 | 1 | COMPRESSION SPRING | 5,15 Lei | |
| 58 | N70149 | 1 | PAWL CHECK | 43,16 Lei | |
| 59 | MRG009824 | 1 | O-RING,.386X.094 | 31,19 Lei | |
| 60 | N70166 | 1 | FEED PISTON | 119,91 Lei | |
| 61 | 851437 | 1 | O-RING,.819X.095 | 43,16 Lei | |
| 62 | N70162 | 1 | STOP, FEED PISTON | 5,15 Lei | |
| 63 | 854039 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 64 | N70163 | 1 | SPRING COLLAR | 5,15 Lei | |
| 65 | 184453 | 1 | RETAINER | 3,78 Lei | |
| 68 | MPW6.2 | 1 | WASHER.SPECIAL | 5,15 Lei | |
| 69 | MHE6100-100 | 1 | NUT,ESN M6X1 | 5,15 Lei | |
| 70 | N70160 | 1 | GUARD | 10,5 Lei | |
| 71 | N80107 | 1 | SPACER, FRAME | 5,15 Lei | |
| 72 | 105973 | 1 | SPACER | 7,14 Lei | |
| 75 | N80103 | 1 | BOTTOM,CANISTER | 43,16 Lei | |
| 77 | UB5130 | 1 | PIN,SPIROL 1/4 X 1 7/8 | 5,15 Lei | |
| 94 | CNTK2 | 1 | KIT, CONTACT TRIP CONVERSION | 34,65 Lei | |
| 95 | SEQ6 | 1 | KIT, SEQUENTIAL TRIP CONV | 34,65 Lei | |
| 96 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 97 | 102473 | 1 | PROTECTOR,TOP FRAME | 7,14 Lei | |
| 102 | 121635 | 1 | ASSEMBLY,CANISTER | 88,41 Lei | |
| 103 | 121632 | 1 | ASSEMBLY,BRACKET | 176,19 Lei | |
| 107 | MPW6.3 | 1 | WASHER,PWN M6 | 5,15 Lei | |
| 108 | 9R217657 | 1 | SHIELD | 11,45 Lei | |
| 109 | 9R204227 | 1 | PLUG | 5,21 Lei |
