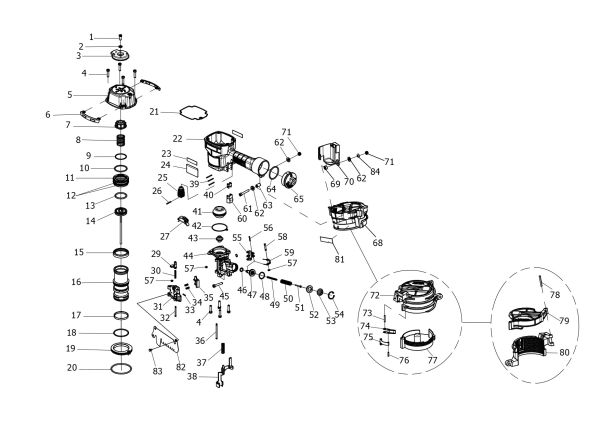

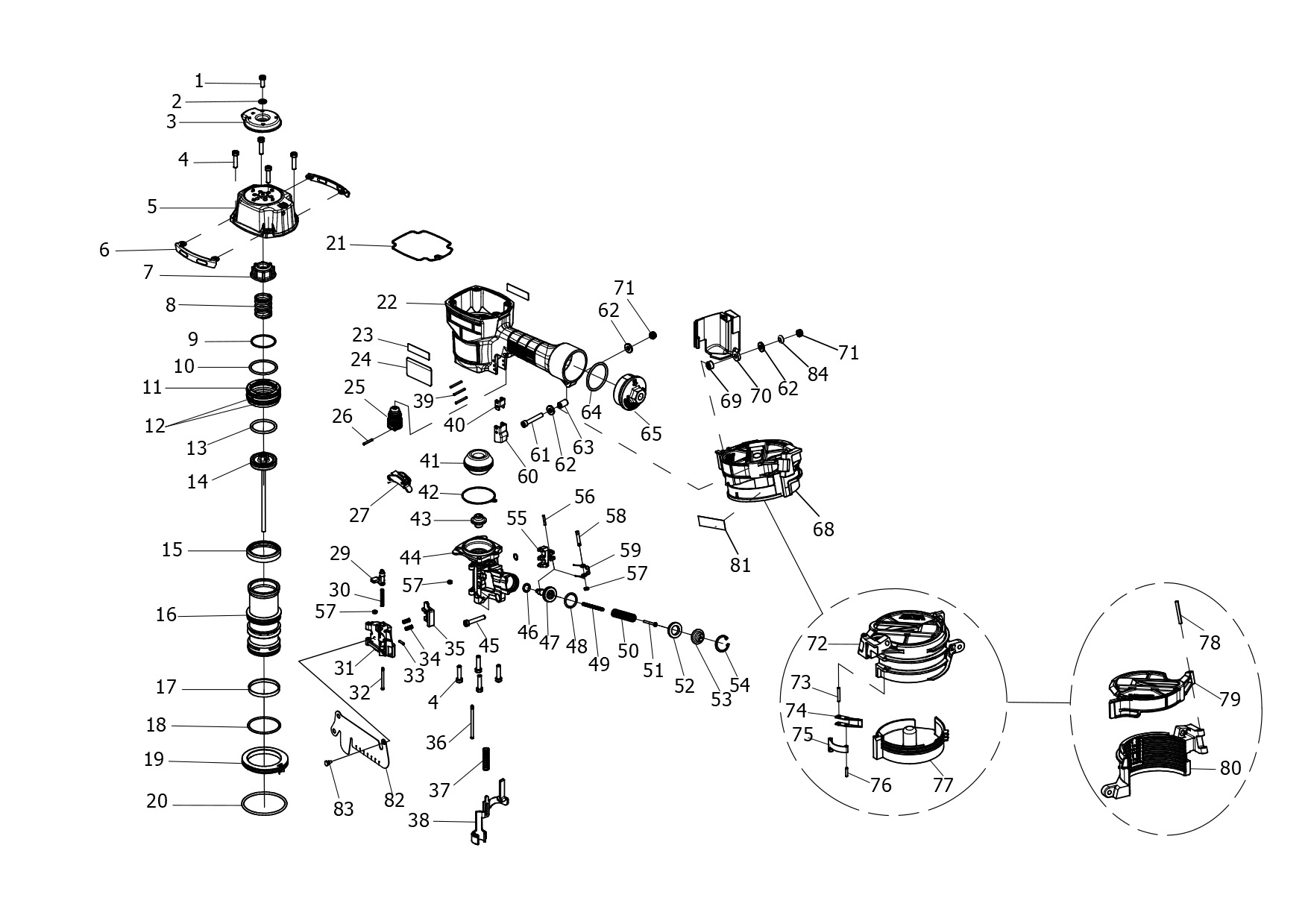

BOSTITCH COIL NAILER (Type 1)
SKU Produs: IC60-1-SA /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | MSLC6100-16 | 1 | SCREW, SLHCS M6 X 1.00X16 | 5,15 Lei | |
| 2 | MPW6.3 | 1 | WASHER,PWN M6 | 5,15 Lei | |
| 3 | T55034 | 1 | COVER, EXHAUST | 25,52 Lei | |
| 4 | MSC6100-25 | 1 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 5 | 105584 | 1 | DEWALT CHOP SAW (Type 15) | 383,69 Lei | |
| 6 | 9R209688 | 1 | WEAR PLATE ASSEM | 16,49 Lei | |
| 7 | T55050 | 1 | PER,TOP | 28,14 Lei | |
| 8 | 854016 | 1 | SPRING,HEAD VALVE | 6,09 Lei | |
| 9 | T55031 | 1 | RING, BUMPER | 5,15 Lei | |
| 10 | MRG041630 | 1 | O-RING,1.638X.118 | 16,49 Lei | |
| 11 | 105577 | 1 | HEAD VALVE (SERVICE PART) | 107,73 Lei | |
| 12 | MRG052526 | 1 | O-RING,2.067X.103 | 31,19 Lei | |
| 13 | 850607 | 1 | O-RING,1.484X.139 | 6,09 Lei | |
| 14 | 9R213392 | 1 | DRIVER SA | 253,89 Lei | |
| 15 | T60006 | 1 | SEAL, CYLINDER | 21,11 Lei | |
| 16 | 9R213390 | 1 | CYLINDER | 130,52 Lei | |
| 17 | T60021 | 1 | SEAL,CHECK | 5,15 Lei | |
| 18 | 850006 | 1 | O-RING,1.987X.103 | 34,65 Lei | |
| 19 | T55027 | 1 | RING, CYLINDER SLEEVE | 25,52 Lei | |
| 20 | 851753 | 1 | O-RING,2.734X.139 | 5,15 Lei | |
| 21 | T55024 | 1 | GASKET, FRAME CAP | 5,15 Lei | |
| 22 | N65005 | 1 | FRAME | 330,12 Lei | |
| 23 | 9R209359 | 1 | BRAND LABEL | 3,78 Lei | |
| 24 | N112290 | 1 | LABEL | 3,78 Lei | |
| 25 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 26 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 27 | CNTK2 | 1 | KIT, CONTACT TRIP CONVERSION | 34,65 Lei | |
| 29 | N70150 | 1 | LATCH DOOR | 47,78 Lei | |
| 30 | 101408 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 31 | 9R217728 | 1 | DOOR | 119,91 Lei | |
| 32 | 100182 | 1 | PIVOT PIN, N57C | 34,65 Lei | |
| 33 | MPP030012 | 1 | PIN, SPIROL | 5,15 Lei | |
| 34 | 854011 | 1 | COMPRESSION SPRING | 5,15 Lei | |
| 35 | 100180 | 1 | CHECK PAWL MACHINING | 119,91 Lei | |
| 36 | N65036 | 1 | PIN,SPECIAL | 43,16 Lei | |
| 37 | 100874 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 38 | 9R195382 | 1 | TRIP SA | 73,19 Lei | |
| 39 | 9R195354 | 1 | SPIROL PIN | 3,78 Lei | |
| 40 | 100337 | 1 | GUIDE, ARM | 34,65 Lei | |
| 41 | 9R209665 | 1 | BUMPER | 58,17 Lei | |
| 42 | 102301 | 1 | SEAL,NOSE | 5,15 Lei | |
| 43 | 116989 | 1 | DRIVER GUIDE | 73,19 Lei | |
| 44 | 9R232897 | 1 | NOSE | 620,13 Lei | |
| 45 | MSC6100-40 | 1 | SCREW,SOC. HD. CAP M6X1.0 | 5,15 Lei | |
| 46 | MRG009824 | 1 | O-RING,.386X.094 | 31,19 Lei | |
| 47 | 121829 | 1 | PISTON ALIMENTATION | 58,17 Lei | |
| 48 | 851437 | 1 | O-RING,.819X.095 | 43,16 Lei | |
| 49 | N65042 | 1 | COMP SPRING 3428 | 5,15 Lei | |
| 50 | N65043 | 1 | COMP SPRING 3335 | 5,15 Lei | |
| 51 | N65044 | 1 | SPRING GUIDE | 6,09 Lei | |
| 52 | 101723 | 1 | BUMPER, FEED PISTON | 43,16 Lei | |
| 53 | N65045 | 1 | COLLAR SPRING | 47,78 Lei | |
| 54 | 184453 | 1 | RETAINER | 3,78 Lei | |
| 55 | 100616 | 1 | PAWL,FEED | 107,73 Lei | |
| 56 | MPP030016 | 1 | PIN,SPIRAL,M3X16 | 5,15 Lei | |
| 57 | 854004 | 1 | WASHER | 5,15 Lei | |
| 58 | N50087 | 1 | PIN,SPECIAL(STEP) | 5,15 Lei | |
| 59 | 854023 | 1 | SPRING,TORSION | 5,15 Lei | |
| 60 | 100336 | 1 | ARM COVER - B | 8,51 Lei | |
| 61 | MSC6100-40 | 1 | SCREW,SOC. HD. CAP M6X1.0 | 5,15 Lei | |
| 62 | MPW6.2 | 1 | WASHER.SPECIAL | 5,15 Lei | |
| 63 | N70143 | 1 | BUSHING - RUBBER | 5,15 Lei | |
| 64 | MRG044331 | 1 | O-RING,1.748 X .122 | 14,07 Lei | |
| 65 | N65006 | 1 | CAP,END | 58,17 Lei | |
| 68 | N65004A | 1 | ASSY, CANISTER | 248,33 Lei | |
| 69 | 105973 | 1 | SPACER | 7,14 Lei | |
| 70 | 100068 | 1 | ARM COVER (A) N57C | 25,52 Lei | |
| 71 | MHE6100-100 | 1 | NUT,ESN M6X1 | 5,15 Lei | |
| 72 | 105837 | 1 | ASSY,CANISTER COVER | 139,97 Lei | |
| 73 | UB2816.4 | 1 | PIN, SPIROL | 5,15 Lei | |
| 74 | 107455 | 1 | LATCH,CANISTER | 11,45 Lei | |
| 75 | N80108 | 1 | SPRING,FLAT | 5,15 Lei | |
| 76 | UB2110.4 | 1 | PIN, ROLL 1/8 X 5/8 | 5,15 Lei | |
| 77 | N65002 | 1 | BOTTOM, CANISTER | 47,78 Lei | |
| 78 | UB3824.4 | 1 | PIN, SPIROL | 11,45 Lei | |
| 79 | N65003 | 1 | COVER | 34,65 Lei | |
| 80 | N65001 | 1 | BRACKET, CANISTER | 66,15 Lei | |
| 81 | 9R210028 | 1 | LABEL | 3,78 Lei | |
| 82 | 9R204226 | 1 | SHIELD | 10,5 Lei | |
| 83 | 9R204227 | 1 | PLUG | 5,21 Lei | |
| 84 | 9R217711 | 1 | COLLAR | 11,45 Lei |
